2-way motorized Valves



2-Way | high Flows

Our 2-Way Motorized Valves are a good choice for controlling high volume flows at medium pressure. Designed for quick component attachment and a wide variety of plumbing connections, these lightweight valves feature sealed connectors that draw minimal amperage.





Common Features of our 2-way motorized Valves include:



  • Maximum Pressure*: 150 PSI (1034 kPa)
  • GPM: 0-20 (75 LPM)
  • Pressure Drop: 5 PSI at 20 GPM
  • STD. Current Draw: 2.5 AMPs
  • CV Rating: 8.94
  • Open/Close Time: .8 seconds
  • Valve Housing: Glass-Filled Nylon
  • Wetted Metal Parts: 303 Stainless Steel
  • Seals & O-Rings: Viton
  • Motor: Totally Enclosed
    Protected by Self-Resetting Fuse
  • Terminals: 12" Wire with 3 Pin Weather Pack Connector
  • Repair Kit: KT.2445 - 2402/2404 Viton Repair Kit






MV.2402

  • Type: 2-Way Operating
  • Manifold: None
  • Sections: Single Valve
  • Inlets/Outlets:
    1" NPT Side Outlets
    1" NPT Bottom Inlet




MV.2404.1

  • Type: 2-Way Operating Manifold
  • Manifold: Stackable
  • Sections: Up to 5
  • Inlets/Outlets:
    1" NPT Side Outlets
    1.5" NPT End Plates
    1" NPT End Plates Available
    Blank End Plates Available







MV.2404.1F

  • Type: 2-Way Operating Flanged Manifold
  • Manifold: Flanged Stackable
  • Sections: Up to 5
  • Inlets/Outlets:
    .75" NPT Flanged Side Outlets
    1.5" NPT Flanged Bypass








All valves are available in
SINGLE, DOUBLE or TRIPLE BANKS

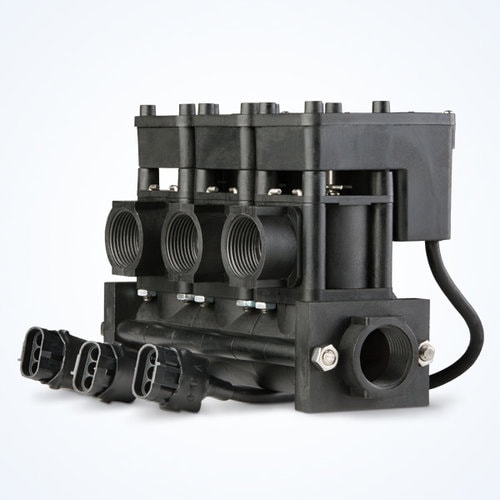

<< MV.2404.3





*Maximum Pressure Calculations based on 13.4V D.C.
