3-WAY MOTORIZED VALVES
3-Way | high Flows
The 3-Way Motorized Valves give you multi-directional functionality for high volume flows at medium pressure. They offer quick component attachment and a wide variety of plumbing connections in a lightweight body. Sealed connectors draw minimal amperage.
COMMON FEATURES OF OUR 3-WAY MOTORIZED VALVES INCLUDE:
- Maximum Pressure*: 150 PSI (1034 kPa)
- GPM: 0-18 (65 LPM)
- Pressure Drop: 5 PSI at 18 GPM
- STD. Currant Draw: 2.5 AMPs
- CV Rating: 8.05
- Open/Close Time: .8 seconds
- Valve Housing: Glass-Filled Nylon
- Wetted Metal Parts: 303 Stainless Steel
- Seals & O-Rings: Viton
- Motor: Totally Enclosed
Protected by Self-Resetting Fuse - Terminals: 12″ Wire with 3 Pin Weather Pack Connector
- Repair Kit: KT.2447 – 2401/2403 Viton Repair Kit

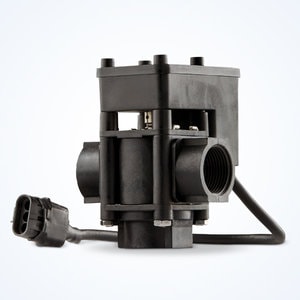

MV.2401
- Type: 3-Way Operating
- Manifold: None
- Sections: Single Valve
- Inlets/Outlets:
1″ NPT Side Outlets
1″ NPT Bottom Inlet
MV.2403.1F
- Type: 3-Way Operating Flanged Manifold
- Manifold: Flanged Stackable
- Sections: Up to 5
- Inlets/Outlets:
.75″ NPT Flanged Side Outlets
1.5″ NPT Flanged Bypass
MV.2403.1F
- Type: 3-Way Operating Flanged Manifold
- Manifold: Flanged Stackable
- Sections: Up to 5
- Inlets/Outlets:
.75″ NPT Flanged Side Outlets
1.5″ NPT Flanged Bypass
All valves are available in
SINGLE, DOUBLE or TRIPLE BANKS
<< MV.2404.3
*Maximum Pressure Calculations based on 13.4V D.C.
