Electric Ball Valves



2-Way and 3-Way | high Flows

The lightweight Electric Ball Valves give you control over thick and thin viscosities with medium pressure across a high volume flow. Have grittier materials? These work great because they are not easily clogged. Expect quick connection to a variety of plumbing attachments, then go between 2-Way and 3-Way by plugging or unplugging the outlets.





Common Features of our Electric Ball Valves include:



  • Maximum Pressure*: 200 PSI (1378 kPa)
  • GPM: 0-30 (110 LPM)
  • Pressure Drop: 5 PSI at 30 GPM
  • STD. Currant Draw: 2.5 AMPs
  • CV Rating: 13.4
  • Open/Close Time: .8 seconds
  • Valve Housing: Glass-Filled Nylon
  • Wetted Metal Parts: 303 Stainless Steel
  • O-Rings: Viton
  • Ball and Shaft Seals: Teflon
  • Motor: Totally Enclosed
    Protected by Self-Resetting Fuse
  • Terminals: 12" Wire with 3 Pin Weather Pack Connector
  • Repair Kit: KT.2532 - 2700 Series Repair Kit






MV.2701

  • Type: 2 or 3-Way Operating
  • Manifold: None
  • Sections: Single Valve
  • Inlets/Outlets:
    1" NPT Side Outlets
    1" NPT Bottom Inlet
  • Pipe Plug: 1"




MV.2702.1

  • Type: 2 or 3-Way Operating Manifold
  • Manifold: Stackable
  • Sections: Up to 5
  • Inlets/Outlets:
    1" NPT Side Outlets
    1.5" NPT End Plates
    1" NPT End Plates Available
    Blank End Plates Available
  • Pipe Plug: 1"

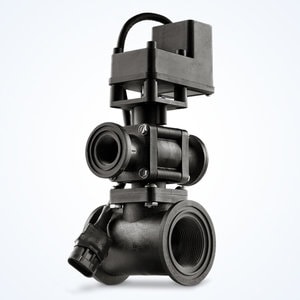

MV.2702.1F

  • Type: 2 or 3-Way Operating Flanged Manifold
  • Manifold: Flanged Stackable
  • Sections: Up to 5
  • Inlets/Outlets:
    .75" NPT Flanged Side Outlets
    1.5" NPT Flanged Bypass
  • Pipe Plug: .75"






All valves are available in
SINGE, DOUBLE or TRIPLE BANKS

<< MV.2702.3





*Maximum Pressure Calculations based on 13.4V D.C.
