PRESSURE REGULATORS
COMMAND. CONTROL. REGULATE.
Designed with ease in mind, TIR offers a line of Pressure Regulators built to meet the demands of any job. These regulators come with .75” NPT and 1” NPT female bypasses and will fit most standard hookups.
The newly designed butterfly valves allow TIR Pressure Regulators to work with centrifugal pumps and valve types, providing you the ability to control your flow and get the most efficient output possible.
COMMON FEATURES OF OUR PRESSURE REGULATORS INCLUDE:
Housing: Glass-Filled Nylon
Wetted Metal Parts: 430F Stainless Steel
Butterfly Valve: PA12
Voltage: 12 Volt D.C.
Diaphragm, Seat & Seals: Viton
Terminals: .25” Male Tabs (Spade)
PR.1541B
Inlets/Outlets: 1″ NPT Female Inlet and Outlet
Maximum Pressure: 150 PSI (1034 kPa)
Recommended Flow Rate Ranges: 15-150 GPM (567.81 LPM)
GPM Bypass at Full Close: <1.0
Pressure Drop: 5 PSI at 1 GPM
Voltage Draw: .9 AMPs at 12 Volts
Actuation Time RPM at 12V: 1.0
NOTE: Pressure Regulator Connectivity is not Positive/Negative Sensitive.

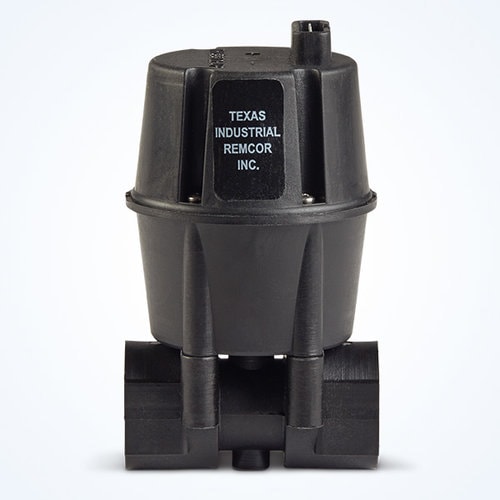

PR.1560B
Inlets/Outlets: .75″ NPT Female Inlet and Outlet
Maximum Pressure: 150 PSI (1034 kPa)
Recommended Flow Rate Ranges: 0-50 GPM (189.27 LPM)
GPM Bypass at Full Close: <0.5
Pressure Drop: 5 PSI at 1 GPM
Voltage Draw: .9 AMPs at 12 Volts
Actuation Time RPM at 12V: 1.0
NOTE: Pressure Regulator Connectivity is not Positive/Negative Sensitive.
