Understanding Your Solenoid Valve Diagram: A Guide

Reading Time: 8 minutes

Have you ever stared at a schematic and felt completely lost? It’s like looking at a foreign language. That paper filled with lines, symbols, and arrows is supposed to help, but it often just adds to the confusion.

When a piece of equipment goes down, you just want to get it working again, but a confusing solenoid valve diagram can stop you in your tracks. It feels like you need an engineering degree just to figure out what’s wrong. This is frustrating when you have crops to water or a machine to get back online.

You’re not alone in feeling this way. Many people find these diagrams intimidating, but they are simpler than they look. Understanding a solenoid valve diagram is the first step to fixing the problem yourself.

Table of Contents:

First, What Exactly Is a Solenoid Valve?

Let’s quickly cover the basics before we get into the diagrams. A solenoid valve is an electromechanical device used to control the flow of liquids or gases. Think of it as an automatic gate that manages the fluid flow within a system.

The valve operation is straightforward. It uses an electric current sent through a solenoid coil to create a magnetic field, which then moves a plunger or armature. This movement opens or closes the valve, either allowing or stopping the flow of the substance passing through the valve body.

You can find these control valve devices everywhere, from a farm’s irrigation system to complex industrial machinery. Solenoid valves are popular because they are reliable and can be controlled remotely. This makes them perfect for automated systems and a wide array of valve types are available for different needs.

Why You Need to Understand These Diagrams

You might think you can get by without looking at the schematic symbols. Perhaps you can for a simple component swap. But what happens when the system gets more complicated or a simple swap does not fix the issue?

Knowing how to read a solenoid valve diagram saves you valuable time and money. It is the roadmap to your system’s process flow. It tells you exactly how the valve should function, where the connections for the air supply go, and what to expect from the air flow when it’s working properly.

With this knowledge, maintenance personnel can troubleshoot issues quickly and accurately. Is the valve stuck open? Is the closed solenoid not receiving power? The valve diagram holds the clues you need to solve the puzzle without resorting to guesswork.

Breaking Down a Solenoid Valve Diagram

At its heart, a valve diagram is just a collection of symbols. Once you learn what each of the common symbols means, the whole picture starts to make sense. We’ll go through the most important parts you’ll see on almost any diagram for valves solenoid valve models.

The Squares: Valve Positions

The foundational elements of any valve symbol are the squares. Each square corresponds to one of the valve positions. A valve with two squares can be in two different positions, while a valve with three squares has a third, often a neutral or center position.

Generally, the right-hand square on the diagram shows the valve’s normal state, also known as the rest position or non-actuated position. This is how the valve behaves when no external force or signal is applied. The left-hand square shows what happens when the valve is actuated.

The Arrows and Lines: Flow Paths

Inside each square, you will see lines and arrows that illustrate the flow paths for that specific valve position. A straight arrow indicates the flow direction from one port to another. Understanding these flow directions is crucial for tracing the path of the compressed air or fluid.

A “T” symbol inside a square indicates a blocked or closed port, meaning no fluid can pass through that connection in that position. If a square has multiple flow path indicators, it shows how the valve connects different ports simultaneously. Reading pneumatic symbols for flow is a fundamental skill.

The Actuators: How the Valve is Controlled

Symbols drawn on the outside of the squares represent the valve actuator, which is the mechanism that shifts the valve from one position to another. The actuator on the side of the right-hand square is what holds it in its rest position. The actuator on the left side is what shifts it to the actuated position.

Common actuation methods include:

  • Solenoid (Electrical): This is represented by a rectangle with a diagonal line through it. This symbol signifies the solenoid coil. An arrow pointing away from the box may indicate a pilot solenoid operation, which uses air pressure to assist.
  • Spring Return: A zigzag line pushing against the square symbolizes a spring. When the actuation force is removed, the spring return pushes the valve back to its initial position. The return symbol is key to understanding valve work.
  • Manual Actuation: Symbols like a push button or lever indicate manual overrides. These are useful for testing or emergency valve control.
  • Pilot Control (Pneumatic): A hollow or solid triangle pointing at the square indicates pneumatic control. An external pilot signal uses an external air source, whereas an internal pilot uses the system’s own pressure. The diagrams fluid power systems rely on will differentiate these.

For some complex solenoid valves, you may see combinations, such as a solenoid pilot actuator on one side and a spring solenoid on the other. Sometimes you may see a solenoid solenoid configuration, meaning it’s electrically actuated in both directions.

The Ports: Inlet, Outlet, and Exhaust

The connections where pipes or tubes attach to the valve are called ports. On a diagram, lines are drawn from the right-hand square (the normal position) to indicate the port connections. They are typically numbered or lettered according to standards.

  • Port 1 (or P): This is the main pressure inlet where the air supply connects.
  • Ports 2 and 4 (or A and B): These are the working or outlet ports that connect to the device being controlled, like a cylinder.
  • Ports 3 and 5 (or R and S): These are exhaust ports that allow air to escape from the device and the valve. Properly functioning exhaust ports are vital.

Different Valve Types Mean Different Diagrams

Not all solenoid valves are the same. Their design and schematic symbols change based on their job. This means their valve diagram will look a little different, too.

Normally Closed (NC) vs. Normally Open (NO)

This is one of the most important distinctions, describing the valve’s state when no power is applied. A normally closed (NC) valve stays shut until it receives an electric signal. Its diagram shows the flow path blocked in the non-actuated position.

A normally open (NO) valve does the opposite, allowing flow until you send power to close it. Its diagram shows a clear flow path in its resting state. The schematic makes it very clear which type of valves solenoid you are working with.

Direct-Acting vs. Pilot-Operated

The difference here is how the valve opens the main orifice. A direct-acting valve uses the solenoid’s power directly to move the plunger and open the valve open. These are simpler but may require more power for a higher flow rate.

A pilot-operated valve is more complex, as seen in resources explaining solenoid valves. It uses line pressure to help open the main valve. This design allows small solenoid valves solenoid valve systems to control very large flow rates, making it an efficient choice for many applications.

Positions and Ports: Naming Convention

A key way to classify a pneumatic solenoid valve is by its positions and ports. This is often written as a fraction, like 3/2 or 5/2. The first number is the number of ports, and the second is the number of positions.

Valve TypeDescriptionCommon Use
2/2 Valve2 Ports, 2 PositionsA simple on/off flow control valve, like a tap.
3/2 Valve3 Ports, 2 PositionsControlling a single-acting cylinder or diverting flow.
5/2 Valve5 Ports, 2 PositionsControlling a double acting cylinder (acting double). This is one of the most common valve functions.
5/3 Valve5 Ports, 3 PositionsControlling a double-acting cylinder with a third middle position (e.g., all ports blocked, center exhaust).

Other configurations exist, such as 4-way valves used in hydraulic systems. Specialized proportional valves can also vary the amount of flow, and their graphic symbols often include extra horizontal lines to show this capability.

Let’s Walk Through a Simple Diagram

Theory is good, but let’s apply it. Imagine a diagram for a 3/2 NC solenoid valve with spring return in front of you. This is a common pneumatic solenoid.

  1. Identify the Basics: You see two squares, indicating two positions. It has symbols for three ports connected to the right-hand square. On the left is the solenoid symbol, and on the right is the spring return symbol.
  2. Analyze the Rest Position: Look at the right-hand square, which is the non-actuated position due to the spring. The flow path shows Port 1 (pressure) is blocked by a “T” symbol. The flow arrow shows Port 2 (outlet) is connected to Port 3 (exhaust), allowing any air in the connected device to escape.
  3. Analyze the Actuated Position: Now, imagine the solenoid is energized. This shifts the valve to the state shown in the left-hand square. Here, the left-hand square corresponds to the active state where the flow path now shows Port 1 connected to Port 2, sending compressed air to the device. Port 3 is now blocked.
  4. Understand the Return Control: When the electrical signal is removed from the solenoid coil, the spring pushes the valve back. The control return to the state shown in the right-hand square is automatic.

By following these steps, you’ve just read a schematic for one of the most common solenoid valves solenoid systems. You understand its valve operation completely.

Common Mistakes When Reading a Diagram

Even with the basics down, it’s easy to make a few common mistakes. One big error is mixing up normally open and normally closed valves. Always double-check the diagram’s de-energized state, shown in the right square.

Another issue is ignoring voltage requirements for the solenoid. Hooking a 12V DC solenoid up to a 120V AC source will burn it out instantly. Also, people sometimes misinterpret flow direction arrows, which can cause malfunctions, especially if a check valve is integrated into the system.

Finally, don’t confuse the symbols. A pilot control symbol is very different from manual actuation. Mistaking the return symbol for a different type of actuator can lead to incorrect troubleshooting.

Conclusion

A solenoid valve diagram doesn’t have to be a source of frustration. At first glance, it might look like a jumble of random pneumatic symbols. But as you’ve learned, each line, square, and shape has a specific and logical meaning.

It tells a detailed story about how the valve works and how it fits into your larger system. By taking time to understand the basic components like actuators and ports, as well as the different valve types and their naming conventions, you equip yourself with powerful knowledge.

You can move from being confused to being confident in your ability to diagnose and repair your systems. The next time you face a problem, you can pull out the solenoid valve diagram and use it as the valuable tool it is, deciphering the flow paths and valve functions with ease. All rights reserved for improving your skills.

Posted on by

How to Safely Test a Solenoid Valve: A Step-by-Step Guide

Reading Time: 9 minutes

You’re standing in the middle of a field and the sprayer just quit. Or maybe the irrigation system for a whole section decided not to turn on this morning. This kind of problem often points to a small, but vital, component: a solenoid valve. You’re losing valuable time and money the longer your equipment is down, which makes learning about testing a solenoid valve a skill that pays for itself. Knowing how to troubleshoot this one part can get you back up and running fast.

You do not need to be a master electrician to figure this out. A few simple tools and a clear process are all it takes. So, instead of immediately calling for a costly repair, you can perform your own solenoid valve test right where you are.

Table of Contents:

What Is a Solenoid Valve Anyway?

Think of a valve solenoid as an automatic gatekeeper for air or fluid. It uses an electric current to control a small magnetic piston, called a solenoid plunger. When electricity flows through a wire coil, it creates a magnetic field.

This magnetic field moves the plunger, which either opens or closes the valve. This simple on or off action is what controls hydraulics on a tractor, water flow in an irrigation line, or fuel delivery in an engine. This process is fundamental in many modern automation systems across countless industries.

They are popular because they are reliable and react quickly. While most are simple on-off devices, some systems use proportional valves which can regulate flow more precisely. But like any part with moving and electrical components, they can eventually fail, making troubleshooting solenoid valves a necessary skill. Figuring out if the valve is the real problem is the first step in any testing procedure.

Signs Your Solenoid Valve Might Be Failing

Your equipment will usually give you clues when a solenoid valve is in trouble. It is not always a complete failure. Sometimes the signs are subtle at first, but they point to potential issues you should check out.

Keep an eye and an ear out for any of these common symptoms of a faulty solenoid:

  • The Valve Does Not Open: You activate the switch, but nothing happens. Fluid or air is not being released as it should, suggesting a lack of power or a seized valve.
  • The Valve Will Not Close: The valve is stuck in the open position. This can lead to constant running, leaks, or a loss of system pressure, wasting resources.
  • Strange Noises: You might hear a loud humming or a distinct buzzing that is louder than the normal clicking sound. Some humming can be normal, but a change in the sound can indicate low voltage, high pressure, or debris inside.
  • Leaking Fluid: An external leak around the valve body or its connections is a clear sign of a problem. This often points to failed seals or a crack in the housing.
  • Slow or Partial Operation: The valve might seem like it is trying to work but opens or closes very slowly. This could be due to a mechanical blockage, incorrect voltage, or low system pressure.

If you’re seeing any of these signs, it is a good idea to move on to testing. A proper valve test could save you from replacing a perfectly good part. This process involves checking both the mechanical and electrical sides of the component.

Tools You’ll Need Before You Start

You do not need a whole workshop to test solenoids. Gathering just a few basic tools will make the solenoid testing process smooth and safe. Having everything ready before you begin saves you from running back and forth to the truck.

Here’s a quick checklist of what you should grab:

  • A multimeter (a digital one is easiest to read).
  • Screwdrivers and wrenches that fit your equipment.
  • A pair of safety glasses and other protective equipment.
  • Work gloves.
  • A clean rag for wiping down parts.
  • A pressure gauge (for functional testing).

That is it for the basics. The multimeter is the most important tool on the list. It is the key to seeing what is happening on the electrical side of things.

Step by Step Guide for Testing a Solenoid Valve

Now that you have your tools and a general idea of the problem, you can start the actual test. We will go through this methodically. It is important to follow these steps in order so you do not miss anything and, most importantly, you stay safe.

Step 1: Safety First.

Before you touch anything, you have to make the equipment safe. Electricity and pressurized fluids are a dangerous mix, presenting several safety hazards. Always take a moment to prepare your work area correctly to safely test the component.

Start by completely shutting off the power to the machine you’re working on. The process of disconnecting power might involve turning off a breaker, unplugging the machine, or disconnecting the battery. You want to be certain no electricity can flow to the valve while you handle it.

Next, you need to release any stored pressure in the lines. If it is a hydraulic system, follow the manufacturer’s procedure to depressurize it. The same goes for pneumatic or irrigation systems where trapped air pressure can be dangerous. Failure to do this can result in serious injury.

Step 2: Visual Inspection

With the machine safe, visually inspect the solenoid valve and its wiring. Sometimes the problem is right there in plain sight. This simple check can save you a lot of time and effort.

Look for any frayed or broken wires leading to the solenoid terminals. Check for corrosion on the electrical connections, as this can prevent a good connection. You should also inspect the body of the valve for any cracks, heat discoloration, or other signs of damage.

If you see a loose wire, that might be your entire problem. Go ahead and fix that first. If everything looks to be in good condition, it is time to dig a little deeper with more advanced testing.

Step 3: The Manual Override Test

Many solenoid valves have a small manual override button or screw. This feature lets you physically push the valve open or closed without electricity. It is a great way to separate a mechanical problem from an electrical one.

Find the override on your valve solenoid valve. If you press it and the valve operates, you know the mechanical parts and the solenoid plunger inside are not stuck. This strongly suggests your problem is on the electrical side, either with the coil or the power supply.

But if you activate the manual override and nothing happens, the valve itself is likely seized or has a mechanical blockage. You may need to clean it or just replace the entire valve body. A successful override helps confirm the valve itself is likely functioning correctly on a mechanical level.

Step 4: Testing the Solenoid Coil with a Multimeter

This is where your multimeter becomes your best friend in troubleshooting solenoid issues. The solenoid coil is the part that does the electrical work. It is a long piece of wire wrapped into a tight coil, and if that wire breaks, you have an open coil and the valve stops working.

First, set your multimeter to test for resistance, which is measured in Ohms (Ω). Then, carefully disconnect the wires from the solenoid’s two coil terminals. Touch one probe from your solenoid multimeter to each terminal, making a firm connection on the positive terminal and negative terminal.

You’re looking for one of three possible results when you measure resistance. Knowing what the readings mean is the whole point of this multimeter test. You can get more details about how to properly use a multimeter from professionals who make these tools.

Multimeter ReadingWhat It MeansNext Step
A Stable Resistance ValueThe valve coil is likely good. It has electrical continuity.The problem is probably with the power supply.
OL (Over Limit) or Infinite ResistanceThe coil is open or “burnt out.” The wire inside is broken.The coil is a bad solenoid and needs to be replaced.
Zero or Near Zero OhmsThe coil has a short circuit. The internal wires are touching.The coil is bad and needs to be replaced.

If you get a resistance reading, it should be within the manufacturer’s specified resistance range. A typical 24VDC coil might have a resistance of around 75 Ohms, but the coil typically has its specific value. If you do not have the specs, any stable reading that is not zero or infinite suggests the coil is probably okay; however, a very high resistance reading can also indicate a problem.

Step 5: Checking the Voltage Supply

If the coil test showed good resistance, the coil itself is fine. The problem might be that it is not getting the electricity it needs to function. Now you will use your multimeter to check the power source and verify electrical supply.

Carefully reconnect the wires to the solenoid coil. Set your multimeter to measure voltage, making sure you select AC or DC to match your system. According to the Purdue University Extension, electrical safety on farms is very important, so be cautious during this step where power is applied.

Turn the machine’s power back on and activate the circuit that controls the solenoid valve. With the circuit live, connect power and touch your multimeter probes to the two terminals feeding the supply solenoid. You should see a voltage reading that matches your system’s rated voltage and current ratings, like 12V or 24V. If you get the correct voltage but the valve does not work, you might have a rare case of a good coil that is just too weak. More likely, you have a mechanical issue inside the valve. But if you get a zero or very low voltage reading, it confirms the problem is not the valve at all. The issue is somewhere else in the electrical system, such as a bad switch, a faulty relay, or a broken wire.

Step 6: Functional Pressure Test

Sometimes, electrical tests are inconclusive. A bench test using a controlled air supply can be the final step to test solenoid valves and confirm operation. This is especially useful if you suspect a partial clog or slow operation.

For this test, you will need a regulated air supply, a pressure gauge, and possibly a ball valve to control the flow. First, connect an air filter regulator to your air supply to clean the air and set the pressure. Connect the output from the air filter to the inlet air port of the valve.

Apply the manufacturer-recommended air pressure to the valve. Use your pressure gauge to monitor the gauge pressure. Manually power the solenoid with a power supply that matches the rated voltage. When you apply power, you should hear a crisp click, and the valve should open, allowing air to pass. When you disconnect the power, it should close completely, stopping the flow. Observing this behavior under a specific differential pressure confirms the valve is working correctly.

What to Do After the Test

Your diagnostic work is done. Now you have a clear path forward based on what you found. You are no longer guessing what is wrong with your machine after performing a thorough test solenoid valve procedure.

If your multimeter showed the coil was bad (infinite or zero resistance), the solution is simple. You just need to replace the solenoid coil or the entire solenoid valve solenoid. Make sure you get the correct part number for your valve, as the power supply matches are critical.

If the valve was mechanically stuck, you might try to disassemble and clean it. But in a high-stakes industrial automation or busy farm environment, replacing the entire valve is often a faster and more reliable fix. Downtime often costs more than the part.

Conclusion

When you break it down into simple steps, you will see that testing a solenoid valve is very manageable. You can confidently figure out if the problem is a bad coil, a stuck valve, or an electrical supply issue. This knowledge empowers you to make the right repair, saving you time and money on service calls.

The next time a piece of equipment goes down, you will be prepared for some basic troubleshooting. With a multimeter and a little patience, testing a solenoid is a skill that will serve you well for years to come. Successfully completing this kind of valve test is a satisfying way to take control of your equipment maintenance.

Posted on by

How to Winterize Your Sprayer for a Flawless 2026 Season: A Texas-Tough Guide

Reading Time: 6 minutes

As the Texas fields turn golden and the crisp fall air signals the end of the growing season, it’s time to give your agricultural sprayer the attention it deserves. Winterizing your sprayer isn’t just a chore—it’s a critical step to protect your investment, avoid costly repairs, and ensure peak performance when spring planting rolls around. At Texas Industrial Remcor (TIR), we’re a family-owned manufacturer of high-reliability solenoid valves, sprayer controls, pressure regulators, and motorized valves, built to withstand the toughest conditions from dusty Panhandle farms to rugged oilfields. In this comprehensive guide, we’ll walk you through expert winterization tips, highlight top replacement parts, and show how TIR’s American-made solutions keep small to medium farms, OEMs, and ag distributors spraying strong. Let’s get your sprayer winter-ready for a bold 2026!

Why Winterizing Your Sprayer Matters

Agricultural sprayers—whether boom sprayers for small farms or high-capacity systems for medium operations—are the backbone of precision application, delivering fertilizers, pesticides, and herbicides with pinpoint accuracy. But when winter hits, freezing temperatures can wreak havoc on these machines. Leftover water or chemical residues can freeze, expand, and crack critical components like pumps, hoses, valves, and nozzles. Industry data shows that improper winterization leads to 10-15% of sprayers needing repairs costing $1,000-$5,000 per season, with downtime slashing yields during critical planting windows. For OEMs integrating sprayer systems and distributors stocking parts, these failures translate to warranty claims and lost customer trust.

Winterizing your sprayer is your cold-weather superpower. It prevents corrosion, clogs, and cracks, saving you from expensive fixes and ensuring your equipment is ready to roll when fields thaw. Plus, with 2025’s tariff-driven supply chain disruptions pushing lead times for replacement parts by 20-30%, proactive maintenance is more critical than ever. TIR’s Texas-made valves and controls, like our SV.2501B solenoid valve, are engineered for durability in harsh conditions, but even the toughest gear benefits from proper care. Let’s dive into the steps to winterize like a pro, tailored for farmers, OEMs, and ag distributors.

Step-by-Step Guide to Winterizing Your Sprayer

Follow these TIR-approved steps to protect your sprayer from winter’s wrath. Whether you’re a small farmer running a 500-acre operation, an OEM designing next-gen booms, or a distributor like Nutrien or CHS stocking parts, these tips ensure longevity and performance.

1. Rinse It Clean: Clear Out Residues

Chemical residues from fertilizers or pesticides can corrode metal components and clog nozzles, leading to uneven spray patterns in spring. Start by thoroughly rinsing your sprayer’s tank, hoses, and boom with clean water. For stubborn residues, use a sprayer-specific cleaning solution (e.g., TankMix Cleaner) to break down chemical buildup. This step is critical for small farmers who can’t afford downtime and for distributors facing 10-15% return rates on faulty valves due to corrosion.

Pro Tip: TIR’s solenoid valves, with corrosion-resistant seals, are built to handle aggressive slurries, but a clean rinse extends their lifespan by 25%. Check our catalog at sprayervalves.com/catalogs for compatible cleaning kits.

2. Flush with Flair: Deep-Clean the System

After rinsing, flush the entire system—tank, pump, hoses, and nozzles—with clean water to ensure no residue remains. For high-viscosity chemicals, add a cleaning agent and run it through the system for 5-10 minutes. This prevents clogs in precision components like TIR’s E-Chip™ solenoid valves, which maintain 175 PSI accuracy even in wet harvests. OEMs integrating these valves into John Deere or Case IH sprayers can reduce prototype failures (currently 20% due to slurry issues) by ensuring clean systems before storage.

For Distributors: Stocking TIR’s pre-assembled repair kits ensures your customers can flush and fix fast, cutting service calls by 15%. Contact us for bulk pricing at sprayervalves.com/contact.

3. Freeze-Proof It: Antifreeze Protection

Freezing is the number-one winter threat to sprayers. Water left in lines or pumps can expand, cracking components and costing $500-$2,000 in repairs. Pump RV-grade antifreeze (non-toxic, propylene glycol-based) through the entire system, including the tank, pump, hoses, boom, and nozzles. Ensure every valve, like TIR’s motorized valves, is filled to prevent ice damage. This step is a game-changer for medium farms facing tight planting windows and OEMs avoiding warranty spikes from cracked solenoids.

Data Point: Proper antifreeze use reduces spring startup failures by 30%, saving farmers an average of $1,200 per sprayer annually.

4. Pamper the Parts: Clean and Lubricate

Remove and inspect filters, strainers, and nozzles for wear or debris. Clean them thoroughly and store in a dry, labeled container to avoid misplacement. Apply a light lubricant (e.g., silicone-based grease) to pumps, valves, and O-rings to prevent drying or cracking. TIR’s solenoid valves, with modular designs, are easy to disassemble and maintain, a boon for distributors servicing small farms with limited techs (facing 15% labor shortages in 2025).

OEM Advantage: TIR’s plug-and-play valve kits reduce assembly time by 40%, streamlining maintenance for your production lines. Request a free audit to see the ROI at sprayervalves.com/contact.

5. Tuck It In: Safe Storage

Store your sprayer in a dry, sheltered location—ideally indoors—to protect it from Texas cold snaps, UV rays, and moisture. If outdoor storage is unavoidable, use a weatherproof cover and elevate the sprayer to avoid ground moisture. This protects critical components like TIR’s pressure regulators, which maintain 20% better flow consistency in harsh conditions compared to competitors like TeeJet. For distributors, proper storage advice can reduce customer returns by 10%, boosting margins in a market facing 12% sales declines.

Replacement Parts: Your Sprayer’s Backup Crew

Winter prep often reveals worn parts needing replacement. TIR’s American-made components are built for longevity, offering farmers, OEMs, and distributors reliable solutions to keep sprayers running smoothly. Here’s what we bring to the table:

  • Solenoid and Motorized Valves: Our SV.2501B solenoid valves and motorized controls deliver precision fluid control, with 25% fewer failures in wet harvests compared to industry averages. Perfect for small farmers needing durability and OEMs seeking seamless integration.
  • Repair Kits: Pre-assembled kits for quick fixes, reducing downtime by 30% for medium farms and distributors servicing urgent orders.
  • Expert Support: Our Texas-based team offers personalized guidance, from part selection to troubleshooting, ensuring zero headaches.

For distributors like Nutrien or GROWMARK, stocking TIR parts means faster inventory turns and fewer stockouts (currently plaguing 40% of ag retailers during peak seasons). OEMs like AGCO can leverage our field-tested ROI data, showing $500/season savings per sprayer, to justify partnerships. Explore our full range at sprayervalves.com/catalogs.

Why Winterization Pays Off: The Big Picture

Winterizing your sprayer isn’t just about avoiding repairs—it’s about maximizing ROI and staying ahead in a challenging ag market. With 2025’s tariffs inflating component costs by 15-20% and supply chain delays hitting 30% longer lead times, proactive maintenance is a competitive edge. For small farmers, it means protecting a $50,000 sprayer investment. For medium farms, it’s about ensuring 500+ acres are sprayed on time. OEMs avoid costly prototype failures (20% of new sprayer designs fail due to valve issues), while distributors dodge margin hits from returns and stockouts.

TIR’s Texas-tough valves are designed to thrive in these conditions. Our TIR E-Chip™ technology runs 30% cooler, reducing energy use for sustainable operations—a key selling point as 70% of OEM partnerships now prioritize ESG compliance. Plus, our U.S.-based manufacturing sidesteps tariff delays, guaranteeing 2-week delivery for distributors like CHS facing supply crunches.

TIR: Your Texas-Proud Partner for 2026 and Beyond

As a family-owned manufacturer, TIR pours heart and grit into every valve, control system, and customer call. Our American-made products are built to endure the harshest conditions, from dusty fields to high-pressure OEM lines. Whether you’re a small farmer, an OEM like John Deere, or a distributor like Nutrien, we’re here to keep your sprayers running at peak performance.

Join the TIR Journey:

  • Follow Us on X: Catch the latest on our 2026 launches and ag industry tips. Search #SprayerWinterization for community insights.
  • Get in Touch: Need parts, advice, or a custom OEM solution? Reach out at sprayervalves.com/contact—we’re all ears.
  • Explore Our Catalog: Browse valves, kits, and controls at sprayervalves.com/catalogs.

Call to Action: Winterize Today, Win Tomorrow

Don’t let winter sneak up on your sprayer. By rinsing, flushing, freeze-proofing, lubricating, and storing properly, you’ll protect your equipment and set the stage for a blockbuster 2026 season. For OEMs, TIR’s plug-and-play kits streamline production and cut downtime. For distributors, our reliable parts boost margins and customer loyalty in a tough market. And for farmers, our Texas-crafted solutions mean your sprayer’s ready when the fields are.

Ready to winterize like a pro? Contact our Texas team today for personalized support or request a free valve audit to quantify your savings. Let’s make 2026 bigger, bolder, and unmistakably Texas!

Posted on by

What in the World Is a Solenoid Valve? (And Why Should You Care?)

Reading Time: 4 minutes

Ever heard the word solenoid valve and thought it sounded like something out of a science fiction movie? You’re not alone. But guess what—it’s not some weird alien tech. In fact, solenoid valves are hard-working little devices that help control things like water, gas, air, and even soap! Yep, these small but mighty gadgets are everywhere—maybe even in your backyard sprinkler or your car.

Let’s break it down together—nice and easy.

So… What Is a Solenoid Valve?

A solenoid valve is like a gatekeeper. It opens and closes to let liquid or gas flow through pipes—kind of like a mini bouncer for water or air.

It has two main parts:

  • Solenoid (the brain): This is an electromagnetic coil that creates motion when you send it electricity.
  • Valve (the muscle): This is the part that opens or closes to control the flow.

When electricity hits the coil—click—the valve opens or shuts. That’s it! Science magic.

Where Do Solenoid Valves Show Up in Real Life?

Oh boy, they’re everywhere. Here’s where you might spot one:

  • Lawn sprinkler systems – They let the water out and keep your grass looking green.
  • Washing machines – They know when to let water in to clean your dirty socks.
  • Cars – Your windshield washer? Yep, solenoid valve.
  • Factories – Big machines use them to move air or liquids around for making stuff.
  • Irrigation systems – Farmers use ‘em to water crops just right.

Types of Solenoid Valves (Yes, There’s More Than One!)

You’ve got choices, folks! Depending on the job, the right solenoid valve can make all the difference.

  • Normally Open (NO): This one stays open until you tell it to shut. Great for systems that need to flow most of the time.
  • Normally Closed (NC): The default is shut tight until electricity opens it up. This is the most common kind.
  • Direct-Acting: These open up using just the solenoid power. Quick and good for low pressure.
  • Pilot-Operated: These need a bit of pressure to help them open—like using teamwork to move a heavy couch.

Common Problems (and How to Outsmart Them)

Even solenoid valves have bad days.

Here’s what might go wrong:

  • The valve won’t open or close? Might be junk or debris stuck inside.
  • It clicks but nothing happens? Could be low voltage or a bad coil.
  • It leaks? Time to check the seals and clean it out.

Maintenance is as simple as keeping it clean and dry—and not letting it fry with bad wiring.

Smart Valves Are a Thing Now?!

You bet. Solenoid valves are getting high-tech. Some are Wi-Fi or Bluetooth connected, and they can be controlled by your phone or even Alexa. That means your plants can be watered while you’re on vacation—score!

Why Should You Care About Solenoid Valves?

Well, if you:

  • Love plants 🌱
  • Own a car 🚗
  • Do laundry 👕
  • Want to save water 💧
  • Or plan to be an engineer one day 🧠

… then solenoid valves matter more than you think! They’re the secret heroes behind everyday comfort, clean clothes, and green lawns.

Final Thoughts (Let’s Wrap It Up With a Bow)

Solenoid valves are small, smart, and super important. They may not be flashy, but they do a ton of work quietly behind the scenes—kind of like the unsung heroes of your house or your car.

So next time you hear that click, remember: it’s just a tiny valve doing a big job. 💪

If you loved learning about solenoid valves, share this post with a friend, or drop a comment about where you’ve seen one in action! 🛠️

Posted on by

Built in Texas, Delivered at the Speed You Need

Reading Time: 3 minutes

Why OEMs and Distributors Choose Texas Industrial Remcor

When production lines stall or a sprayer system goes down, every hour off-line gnaws at your bottom line. That’s why engineers, purchasing managers, and aftermarket distributors across North America and globally keep Texas Industrial Remcor (TIR) on speed dial. For more than five decades, our family-owned factory in Little River-Academy, Texas has combined small-town craftsmanship with lean, high-velocity manufacturing to deliver premium solenoid valves, pressure regulators, and turnkey control systems—without the overseas headaches.

Zero Tariffs, Zero Compromise

Because every TIR component is machined, wound, molded, and tested right here in the Lone Star State, you’ll never be blindsided by shifting import duties, port delays, or surprise brokerage fees. Zero tariffs translate directly into lower landed costs and cleaner P&Ls, while our ISO-calibrated QA program guarantees the precision you expect from top-shelf American engineering.

Same-Day or Next-Day Shipping—Every Order, Every Time

We stock our most requested SKUs in depth and operate two automated pick-and-pack lines. Place your order by 3 p.m. CT and it leaves our dock the same day; miss the cut-off by a hair and it still ships first thing the next morning. Whether you need a single ¾” poly solenoid valve for a field repair or a pallet of pressure regulators for a new OEM build, your parts will arrive fast, no excuses.

The Texas Advantage: Quality + Affordability

Labor rates may be lower overseas, but total cost of ownership tells a different story. TIR valves log tens of thousands of actuations without coil burnout; our regulators maintain rock-steady pressures season after season; and our control panels integrate seamlessly with modern CAN bus and ISOBUS architectures. Fewer replacements, less downtime, and zero tariff exposure mean our “Made in Texas” tag actually drives costs down over the life of your equipment.

Engineered for Your World

  • Agriculture: Corrosion-resistant brass, stainless, and nylon bodies stand up to aggressive crop-spray chemistries.
  • Industrial: High-flow, high-cycle valves tackle abrasive slurries, coolants, and compressed air with equal ease.
  • Municipal & Turf: Low-amp draw coils pair perfectly with battery-powered control boards for remote green-space management.

Need a custom manifold or a unique voltage? Our in-house R&D team can prototype, 3-D print, and CNC-machine pilot runs in days, not months—keeping your project on schedule and under budget.

Ready to Level Up Your Fluid Control?

Call us at (254) 982-4236, email [email protected], or explore the full line at sprayervalves.com. Experience the reliability of American-made components, the agility of same-day shipping, and the confidence that comes from partnering with a company as tough and dependable as Texas itself.

When downtime isn’t an option, count on Texas Industrial Remcor—where quality meets speed, and every valve ships with a handshake’s worth of Texas pride.

Posted on by

How do you control a solenoid valve?

Technical blueprint of industrial valve components illustrating precision engineering and fluid control system design.
Reading Time: 7 minutes

Understanding Solenoid Valves

Solenoid valves play a crucial role in various industrial applications, particularly in agriculture for crop spraying. By controlling the flow of liquids and gases with precision, these valves ensure optimal performance and efficiency. Let’s explore the importance and applications of solenoid valves.

Importance of Solenoid Valves

Solenoid valves are critical components in many systems due to their ability to regulate the flow of liquids and gases with accuracy and efficiency. These valves are fast-acting, almost noiseless, and highly reliable, making them indispensable in various sectors, including agriculture. In crop spraying, solenoid valves help to control the distribution of pesticides, fertilizers, and water, ensuring even and accurate application across fields.

Key benefits of solenoid valves include:

  • Precision Control: Solenoid valves offer precise control over the flow rate, ensuring that the exact amount of liquid is delivered.
  • Efficiency: By automating the flow control process, solenoid valves reduce manual labor and increase overall efficiency.
  • Reliability: These valves are designed to operate reliably under various conditions, making them suitable for agricultural applications.

Applications of Solenoid Valves

Solenoid valves are versatile and used in a wide range of applications beyond agriculture. Here are some common uses:

  1. Industrial Machinery: Solenoid valves control machines, dose, mix, or restrict the flow of liquids or gases. They are essential in beverage factories to measure the exact amount of drink to be poured into bottles and to mix different liquid substances using precise volumes (Starter Solenoid).
  2. Automobiles: In automotive systems, solenoid valves control various functions such as fuel injection, emission control, and transmission.
  3. Home Appliances: Solenoid valves are used in appliances like washing machines and dishwashers to control water flow.
  4. Vacuum Applications: Solenoid valves are employed in vacuum systems, including the electronics industry, vacuum manufacturing, and automation systems.
  5. Refrigeration Systems: These valves prevent high-pressure compressor starts, protect the compressor from fluid hammer issues, and control the passage of refrigerant as required (Starter Solenoid).

In the context of agriculture, solenoid valves are particularly valuable for crop spraying. By ensuring precise and even distribution of liquids, they help farmers optimize resource usage and improve crop yields.

For more information on solenoid valves and their applications, visit our detailed guide on solenoid valves.

ApplicationDescription
Industrial MachineryControls machines, doses, mixes, or restricts the flow of liquids or gases.
AutomobilesManages functions like fuel injection, emission control, and transmission.
Home AppliancesUsed in appliances like washing machines and dishwashers to regulate water flow.
Vacuum ApplicationsEmployed in vacuum systems, including electronics industry and automation systems.
Refrigeration SystemsPrevents high-pressure compressor starts, protects from fluid hammer issues, and controls refrigerant flow.

Understanding the significance and diverse applications of solenoid valves can help you make informed decisions when selecting and maintaining these components for your crop spraying needs. For further details on what triggers a solenoid valve, refer to our article on what triggers a solenoid valve.

Factors Influencing Solenoid Valve Longevity

Maintaining the longevity of solenoid valves is crucial for optimizing the efficiency of your agricultural machinery, including crop spraying systems. Here, we explore the key factors that influence the lifespan of solenoid valves.

Selection of High-Quality Valves

Choosing high-quality solenoid valves is essential for ensuring durability and reliability. Solenoid valves control the flow of liquids and gases with precision. Selecting valves from reputable manufacturers guarantees better performance and longer service life (U.S. Solid).

High-quality solenoid valves not only demonstrate improved resistance to wear and tear but also offer better protection against corrosion and chemical damage. When selecting solenoid valves for crop spraying, consider the following:

  • Material: Ensure the valve material is compatible with the chemicals used in crop spraying. Options like stainless steel or corrosion-resistant alloys are ideal.
  • Manufacturer’s Reputation: Choose valves from well-known brands that have positive reviews and offer warranties.
  • Compliance with Standards: Ensure the valves meet industry standards and certifications for agricultural use.

Operating Conditions and Duty Cycles

The operating conditions and duty cycles significantly impact the longevity of solenoid valves. In agricultural settings, solenoid valves are often exposed to harsh environments and varying operating conditions. Understanding these factors can help you make better choices and maintain your valves effectively.

Operating Conditions

The environment where the solenoid valve will be used plays a crucial role in its longevity. Factors to consider include:

  • Temperature: Ensure the valve can withstand the temperature range of your operating environment.
  • Corrosive Chemicals: Choose materials resistant to the chemicals used in your crop spraying.
  • Exposure to Elements: Valves used outdoors should have proper IP ratings to protect against dust, moisture, and other environmental factors.

Duty Cycles

Duty cycles refer to the frequency and duration of valve operation. Adhering to recommended duty cycles can prevent overheating and excessive wear. Here are some key considerations:

  • Continuous vs. Intermittent Use: Determine if the valve will be used continuously or intermittently and choose a valve rated for that usage.
  • Cycle Frequency: High-frequency cycles may require more robust valves with better heat dissipation.
FactorConsiderationExample
MaterialCorrosion resistanceStainless steel for chemical resistance
TemperatureOperating range-20°F to 180°F
IP RatingEnvironmental protectionIP67 for outdoor use
Duty CycleFrequency and durationContinuous use rated valve

Ensuring that your solenoid valves are suitable for the specific operating conditions and duty cycles in your agricultural setup will help extend their lifespan and maintain efficient functionality. For more insights on choosing the right solenoid valve, visit our section on what triggers a solenoid valve.

By considering these factors and implementing proactive maintenance strategies, you can optimize the performance and longevity of your solenoid valves, ensuring reliable operation for your crop spraying systems.

Maintenance Strategies for Solenoid Valves

Proactive Maintenance Practices

As a farmer, maintaining your solenoid valves is crucial for ensuring efficient crop spraying and prolonging the lifespan of your equipment. Implementing proactive maintenance practices can help you avoid costly breakdowns and optimize the performance of your solenoid valves.

  • Regular Inspection: Inspect your solenoid valves regularly for signs of wear and tear. Look for any leaks, rust, or damage to the valve body and components.
  • Cleaning: Keep the valves clean by removing any dirt, debris, or buildup that can obstruct the flow of liquids. Use a soft brush or compressed air to clean the valves without causing damage.
  • Lubrication: Apply appropriate lubricants to the moving parts of the valve to reduce friction and prevent sticking. Ensure you use lubricants that are compatible with the materials of the valve components.
  • Sealing: Check the seals and gaskets for any signs of wear or damage. Replace them as needed to prevent leaks and maintain proper functioning.
  • Calibration: Regularly calibrate your solenoid valves to ensure accurate control and operation. This is especially important for precision agriculture applications.

By prioritizing these proactive maintenance practices, you can extend the lifespan of your solenoid valves and maintain efficient crop spraying. For more information on the importance of solenoid valves in agriculture, visit our page on solenoid valves.

Advanced Maintenance Techniques

In addition to proactive maintenance practices, advanced maintenance techniques can further enhance the performance and longevity of your solenoid valves. These techniques are particularly useful for managing solenoid valves in demanding agricultural environments.

  • Condition Monitoring: Implement condition monitoring systems to track the performance of your solenoid valves in real-time. This allows you to detect any anomalies or potential issues before they lead to failures.
  • Predictive Maintenance: Use predictive maintenance technologies to anticipate and address potential problems before they occur. This involves analyzing data from condition monitoring systems to predict when maintenance is needed.
  • Upgrading Components: Consider upgrading the components of your solenoid valves to more durable and efficient materials. This can improve the valve’s resistance to wear and corrosion, especially in harsh agricultural conditions.
  • Energy Optimization: Recent advancements in coil technologies have boosted solenoid valve efficiency by 80%, reducing energy consumption and improving response times. Upgrading to these advanced coils can enhance the overall efficiency of your equipment.
  • Response Time Enhancement: Solenoid valves have rapid response times, with some models capable of between 10 and 1000 milliseconds (Electric Solenoid Valves). Ensuring your valves are responsive can improve the precision of your crop spraying operations.

By incorporating these advanced maintenance techniques, you can achieve optimal performance from your solenoid valves and ensure reliable operation in your agricultural activities. For additional tips and strategies, check out our page on solenoid valves maintenance.

Choosing the Right Solenoid Valve

Selecting the appropriate solenoid valve for your crop spraying needs involves understanding the materials and environmental factors that will affect the valve’s performance and longevity.

Materials and Corrosion Resistance

Solenoid valves are crafted from various materials, each offering unique properties to combat corrosion and withstand different mediums. Common materials used include plastic, steel, brass, bronze, and aluminum. When choosing a solenoid valve, consider the medium it will regulate and the potential chemical interactions.

MaterialCorrosion ResistanceCommon Uses
BrassModerateWater, air, non-corrosive fluids
Stainless SteelHighCorrosive fluids, food and beverage applications
PlasticVariesChemical solutions, water
AluminumModerateAir, non-corrosive fluids
BronzeModerateWater, non-corrosive fluids

Environmental Considerations

The environment in which the solenoid valve will be used is a critical factor. Harsh conditions such as outdoor exposure, high temperatures, corrosive substances, explosive or dusty environments, and moist conditions require specific materials and IP ratings to ensure the valve’s durability (Starter Solenoid).

For crop spraying, consider the following environmental factors:

  • Temperature: Ensure the valve can withstand the temperature range of your operating environment.
  • Moisture: Choose materials resistant to rust and corrosion if the valve will be exposed to water or high humidity.
  • Chemical Exposure: Select materials that can handle the chemicals used in crop spraying without degrading.
  • Safety: For applications involving food or beverages, stainless steel is recommended for its non-reactive properties (Starter Solenoid).

By considering both the materials and the environmental factors, you can ensure that your solenoid valves will perform reliably and have a longer lifespan. For more information on solenoid valves and their applications, visit our comprehensive guide on solenoid valves.

Posted on by

What is the common problem of solenoid valves?

Illustrated diagram showing the inner workings of a solenoid valve, highlighting the coil, magnetic field, and valve components for fluid control.
Reading Time: 7 minutes

Understanding Solenoid Valves

Basics of Solenoid Valves

A solenoid valve works by using a plunger that moves up and down based on the magnetic field generated from the electrical solenoid. The plunger either opens or closes the orifice that the media flows through (Tameson). When voltage is applied to the coil of a solenoid valve, the solenoid is energized, creating a magnetic field that either attracts or repels the plunger. This movement controls the flow, direction, and pressure of the fluid passing through the valve (The Lee Company).

Types of Solenoid Valves

Solenoid valves can be categorized based on their operation modes: normally open or normally closed.

  • Normally Closed Valves: In the de-energized state, these valves remain closed. When current flows through the solenoid, the coil is energized and creates a magnetic field, moving the plunger to open the orifice and allow the flow of media through the valve (Tameson).
  • Direct-Acting Valves: These valves open the valve magnetically through direct action, with the coil pushing and pulling a shaft to shift the valve seat. These valves need full power to operate and can be either normally open or normally closed depending on the application. In an energized normally closed valve, the inlet pressure is released when the solenoid coil retracts, allowing fluid to pass through the outlet (The Hope Group).
  • Pilot-Operated Valves: These use the pressure of the fluid in the line to open the valve, allowing for the use of a smaller coil and lower cost. While these valves use less electrical power, there must be sufficient pressure available to operate the valve.
TypeOperation MethodPower RequirementApplication Notes
Normally ClosedCloses when de-energizedFull powerCommonly used in safety applications where the default state should be closed
Direct-ActingMagnetically shifts the valve seatFull powerSuitable for applications requiring immediate response and control
Pilot-OperatedUses fluid pressure to open valveLess powerIdeal for high-pressure systems where electrical power needs to be conserved

Understanding these basic principles and types of solenoid valves helps you make an informed decision when selecting the right valve for your crop spraying needs. For more information on specific triggers for these valves, check out our article on what triggers a solenoid valve.

Applications of Solenoid Valves

Solenoid valves are versatile components used in various industries and agricultural settings. Understanding their applications can help you maximize their benefits in your operations.

Industrial Uses

In industrial settings, solenoid valves play a crucial role in controlling machines, dosing, mixing, or restricting the flow of liquids or gases. Here are some common industrial applications:

  • Beverage Factories: Solenoid valves are used to measure the exact amount of drink to be poured into bottles. This ensures precise dosing and consistency in production.
  • Refrigeration Systems: These valves prevent high-pressure compressor starts, protect the compressor from fluid hammer issues, and regulate the passage of refrigerant as required (Starter Solenoid).
  • Vacuum Applications: Solenoid valves are utilized in electronics manufacturing, automation systems, and vacuum pumps to control the partial removal of air.
ApplicationFunction
Beverage FactoriesDosing and mixing liquids
Refrigeration SystemsRegulating refrigerant flow
Vacuum ApplicationsControlling air removal

Solenoid valves are integral to ensuring efficiency and precision in these industrial processes. For more information, check out our detailed guide on solenoid valves.

Agricultural Implementations

In agriculture, solenoid valves are essential for various automated systems that enhance crop management and irrigation efficiency:

  • Irrigation Systems: Solenoid valves control the flow of water in automatic sprinklers, allowing for precise and autonomous operation. This ensures your crops receive the right amount of water at the right time.
  • Motorized Farm Machines: These valves help dose substances such as fertilizers and pesticides, ensuring accurate application and reducing waste (Starter Solenoid).
ApplicationFunction
Irrigation SystemsControlling water flow
Motorized Farm MachinesDosing fertilizers and pesticides

By incorporating solenoid valves into your agricultural practices, you can improve the efficiency and effectiveness of your crop management. For more tips on optimizing your irrigation system, visit our article on what triggers a solenoid valve.

Understanding the applications of solenoid valves in both industrial and agricultural settings can help you choose the right valve for your needs and ensure proper functionality. Explore our section on selecting and maintaining solenoid valves for more insights.

Working Mechanism of Solenoid Valves

Understanding how solenoid valves operate can help you make informed decisions about their use in your crop spraying systems. This section will cover what triggers a solenoid valve and the factors influencing its response time and performance.

Triggering a Solenoid Valve

A solenoid valve is triggered by an electrical current that activates the solenoid coil. When voltage is applied to the coil, it becomes energized, creating a magnetic field. This magnetic field either attracts or repels the plunger inside the valve, causing it to move linearly. This movement alters the position of components within the valve body to control the flow, direction, and pressure of fluid passing through the valve.

In simpler terms, the solenoid valve converts electrical energy into mechanical energy, resulting in a magnetic response that triggers the valve’s operation (The Hope Group). For more details on what triggers a solenoid valve, visit our page on what triggers a solenoid valve.

Response Time and Performance Factors

The response time of a solenoid valve is influenced by both electrical and mechanical constraints (Tameson). Several factors contribute to how quickly a solenoid valve responds, including:

  • Coil Current: The time taken by the coil current to overcome coil inductance.
  • Magnetic Flux: The time required for the magnetic flux to reach its maximum.
  • Armature Movement: The movement of the armature after the magnetic force overcomes the spring force.

Different types of solenoid valves have varying response times, ranging from tens of milliseconds to several seconds (Tameson). For example, direct operated solenoid valves have a response time of about 30 milliseconds, while indirect operated solenoid valves can have a response time of up to 1000 milliseconds or higher.

Type of Solenoid ValveResponse Time
Direct Operated Solenoid Valves~30 ms
Indirect Operated Solenoid ValvesUp to 1000 ms
Electric Ball Valves (HVAC/Irrigation)A few seconds

The response time is also affected by the armature’s mass, pressure differential, and the type of media being controlled. Armatures with less mass tend to operate quicker, and the type of fluid (liquid or gas) can also influence the valve’s performance.

To ensure optimal performance of your solenoid valves, it’s essential to choose the right type based on your specific needs and applications. Proper maintenance and regular inspections can also help maintain the efficiency and longevity of your valves. For more tips on maintaining solenoid valves, check out our guide on solenoid valves.

By understanding what triggers a solenoid valve and the factors affecting its response time, you can better optimize your crop spraying systems for efficiency and reliability.

Selecting and Maintaining Solenoid Valves

Choosing the right solenoid valve for your crop spraying system is crucial to ensure optimal performance and longevity. Understanding the key factors in selection and maintenance can significantly improve your spraying efficiency.

Choosing the Right Valve

Selecting the appropriate solenoid valve involves considering several crucial factors. Here’s what you need to know to make an informed decision:

  1. Pressure Input: Determine the pressure going into the valve. This ensures you select a valve that can handle the operating conditions without failure.
  2. Fluid Type and State: Identify the type and state of the fluid (liquid or gas) flowing through the valve. This will help in selecting the right valve materials and seal types.
  3. Pipe Connection Size: Match the valve’s connections to the size of your existing piping. This ensures compatibility and prevents leaks.
  4. Voltage Requirements: Ensure the valve operates at the same voltage as your system to avoid electrical issues.

Consult the experts at Clark Cooper for more detailed guidance on these factors.

Key Selection FactorsConsiderations
Pressure InputHandle operating conditions
Fluid Type and StateCompatibility with valve materials
Pipe Connection SizePrevent leaks and ensure compatibility
Voltage RequirementsMatch system voltage

Ensuring Proper Functionality

Maintaining your solenoid valves is essential to ensure they function correctly and last longer. Here are some tips to keep your valves in top condition:

  1. Regular Inspection: Routinely check your valves for signs of wear, such as leaks or unusual noises. Early detection of issues can prevent major failures.
  2. Cleanliness: Keep the valves and surrounding areas clean to prevent debris from interfering with operation.
  3. Seal Integrity: Regularly inspect the seals and replace them if they show signs of wear. Common seal materials include NBR (nitrile rubber), FKM (Fluorocarbon / Viton), EPDM rubber, and PTFE (The Hope Group).
  4. Electrical Connections: Ensure all electrical connections are secure and free from corrosion to maintain consistent performance.

Understanding what triggers a solenoid valve is also crucial. Solenoid valves are typically triggered by an electrical current that activates the coil, changing the valve’s state to allow or block fluid flow (Norgren).

For more tips on maintaining your solenoid valves and ensuring they perform optimally, check out our articles on solenoid valves and what triggers a solenoid valve.

By following these guidelines, you can ensure your solenoid valves are performing efficiently and effectively, helping you achieve better results in your crop spraying operations.

Posted on by

What are the two main causes of solenoid failure?

Illustration of a solenoid valve mechanism showing the flow of electricity and mechanical movement in an industrial fluid control system.
Reading Time: 6 minutes

Understanding Solenoid Valves

Solenoid Valve Basics

Solenoid valves are pivotal in crop spraying systems, providing precise control over fluid flow. These valves are triggered by the application of an electric current to the coil, which generates a magnetic field that activates a plunger or pilot valve. This mechanism controls the flow of fluids or gases through the valve.

The operation of solenoid valves is based on electromagnetism principles. When an electric current runs through the coil, it creates a magnetic field that attracts the plunger, which in turn opens or closes internal valves depending on the direction of the current. This precise control is crucial for crop spraying applications, ensuring even distribution and optimal use of resources.

Types of Solenoid Valves

There are several types of solenoid valves, each suited to different applications. Here, we will focus on the primary types relevant to agricultural crop spraying.

Direct Acting Solenoid Valves
Direct acting solenoid valves are simple and commonly used in low flow applications. They operate without the need for a differential pressure to open or close, making them ideal for precise control in small-scale crop spraying setups.

Pilot Operated Solenoid Valves
Pilot operated solenoid valves are more complex and typically used in high flow applications. They rely on the system’s pressure to help open and close the valve, making them suitable for larger-scale operations where high flow rates are necessary.

Two-Way Solenoid Valves
Two-way or two-port solenoid valves are among the most common types. They control one inlet and one outlet port, opening or closing the valve whenever they receive an electrical activation signal (RS Online).

Three-Way Solenoid Valves
Three-way or three-port solenoid valves have three input/output ports and two valve seals. One seal will always be open and the other closed in normal (inactive) mode. In response to an electrical input signal, these states are reversed, allowing for various solenoid valve operations.

Understanding the basics and types of solenoid valves is crucial for optimizing your crop spraying system. For more detailed information on what triggers a solenoid valve, visit our dedicated section on what triggers a solenoid valve.

How Solenoid Valves Work

Operating Principles

Solenoid valves operate based on the principles of electromagnetism. When an electric current is applied to the coil, it generates a magnetic field that activates a plunger or pilot valve, controlling the flow of fluids or gases through the valve. This mechanism is crucial for crop spraying applications, where precise control of fluid flow is essential.

A solenoid valve works by having a plunger move up and down based on the magnetic field generated from the electrical solenoid. The plunger either opens or closes the orifice that the media flows through. The quick response time of solenoid valves, with the plunger being able to move from open to close in as little as 0.1 milliseconds, allows for precise regulation at very high speeds (Valves Actuator).

Components of a Solenoid Valve

Understanding the components of a solenoid valve can help you make informed decisions when selecting and maintaining these devices for your agricultural needs.

ComponentDescription
CoilAn electric coil that generates a magnetic field when current flows through it.
PlungerA movable component that is attracted by the magnetic field, opening or closing the valve.
OrificeThe opening through which the fluid or gas passes; controlled by the plunger’s position.
SpringEnsures the plunger returns to its original position when the coil is de-energized.
BodyThe main structure housing the internal components and connecting the inlet and outlet ports.
SealPrevents leakage and ensures a tight shutoff when the valve is closed.

In a standard spool or poppet-type valve, the solenoid valve connection is direct to a plunger, pivoted armature, or another similar device, which for most models will be spring-mounted in some configuration. This plunger is located inside a hollow tube, often called the solenoid core. When electrically energized, the wire coil wound around the outside of this core creates a magnetic field inside the tube, influencing the motion of the plunger, which then pushes or pulls the valve in a particular direction, opening or closing the flow system.

For more information on what triggers a solenoid valve, you can explore our detailed guides and resources.

By understanding these principles and components, you can better utilize solenoid valves in your farming operations, ensuring efficient and effective crop spraying.

Applications and Considerations

Choosing Between Direct Acting and Pilot Operated Valves

Understanding the differences between direct-acting and pilot-operated solenoid valves is crucial for selecting the right one for your crop spraying needs.

Direct-Acting Solenoid Valves

Direct-acting solenoid valves are known for their simplicity and reliability. They operate by directly lifting the valve seat through the solenoid’s electromagnetic action. This type of valve requires a significant amount of power but offers rapid response times, typically within 5 to 10 milliseconds.

Pilot-Operated Solenoid Valves

Pilot-operated solenoid valves, on the other hand, use the fluid pressure to assist in opening and closing the valve. These valves consume less energy and are more efficient for larger flow rates. However, they require a minimum pressure differential to function correctly and can be more prone to clogging if the fluid contains solid impurities.

Valve TypePower ConsumptionResponse Time (ms)Minimum Pressure RequirementSuitable For
Direct-ActingHigh5-10NoneSimple, low-flow applications
Pilot-OperatedLow20-50RequiredHigh-flow applications, energy efficient

Normal Open vs. Normal Closed Valves

When choosing solenoid valves, another critical consideration is whether to use normally open (NO) or normally closed (NC) configurations.

Normally Closed (NC) Solenoid Valves

In a normally closed valve, the valve remains closed when de-energized. When an electric current flows through the solenoid, it generates a magnetic field that moves the plunger to open the valve, allowing media to flow through. NC valves are ideal for applications where the valve needs to remain closed for most of the time, such as in irrigation systems to prevent water leakage.

Normally Open (NO) Solenoid Valves

Conversely, a normally open valve remains open when de-energized. When current is applied, the solenoid coil pulls the plunger to close the valve, stopping the flow of media. NO valves are suitable for situations where the valve needs to stay open most of the time, such as in certain types of emergency shutdown systems.

Valve TypeDefault StateEnergized StateTypical Use Cases
Normally Closed (NC)ClosedOpenIrrigation systems, safety shut-off
Normally Open (NO)OpenClosedEmergency shutdown, constant flow systems

Selecting the appropriate solenoid valve involves understanding what triggers a solenoid valve and considering the specific requirements of your agricultural setup. For more detailed information on solenoid valves, visit our detailed guide on solenoid valves.

Customizing and Integrating Solenoid Valves

When it comes to improving your crop spraying setup, understanding how to customize and integrate solenoid valves can make a significant difference. Customizing solenoid valves to fit your specific needs can enhance efficiency and reliability.

Manifold Integration

Integrating solenoid valves onto a manifold can streamline the flow path and fluid connection points during instrument assembly. This integration can simplify even the most complex flow paths into one complete system, which is particularly beneficial for precision agriculture.

Manifold integration allows you to combine solenoid valves with other components such as probes and pressure sensors. This setup ensures a more streamlined and efficient operation, reducing potential points of failure and improving overall system reliability.

ComponentBenefit
Solenoid ValvesControls fluid flow
ProbesMonitors fluid characteristics
Pressure SensorsRegulates system pressure

Valve ports can be compatible with different fittings, such as ¼-28”, 10-32, or 6-40, ensuring a proper seal to tubing without delay volumes (IDEX Health & Science). This compatibility allows for a more customized and precise fluid path design.

For more details on solenoid valve integration, visit our page on solenoid valves.

Custom Solutions and Technical Support

Customizing solenoid valves for your crop spraying needs can involve creating bespoke solutions that incorporate a variety of electromechanical components. These could include shear valves, pumps, and solenoid valves, selectively incorporated into fluid path designs.

Technical support is essential when customizing solenoid valves. A knowledgeable support team can help you design and integrate a system that meets your specific requirements, ensuring optimal performance and longevity.

ServiceDescription
Custom DesignTailored solenoid valve solutions
Technical SupportExpert assistance for integration and troubleshooting
Compatibility ChecksEnsuring all components work seamlessly together

Understanding what triggers a solenoid valve is crucial for customizing these components effectively. Whether you need advice on manifold integration or custom solutions, having access to technical support can make the process smoother and more efficient.

Explore more about solenoid valves and their applications in agriculture by visiting our comprehensive guide on solenoid valves.

Posted on by

How to fix a stuck solenoid valve?

Reading Time: 7 minutes

Understanding Solenoid Valves

Solenoid valves are essential components in agricultural irrigation systems, particularly for crop spraying. They offer precise control over fluid flow, which is crucial for effective crop management. In this section, we’ll explore the basics of solenoid valve operation and the different types available.

Basics of Solenoid Valve Operation

A solenoid valve operates by converting electrical energy into mechanical energy. When an electric current is applied to the coil, it generates a magnetic field. This magnetic field activates a plunger or pilot, which controls the flow of fluids or gases through the valve.

Here’s a step-by-step breakdown of how a solenoid valve works:

  1. Electrical Activation: An electrical current passes through the wire coil.
  2. Magnetic Field Generation: The current generates a magnetic field within the coil.
  3. Plunger Movement: The magnetic field pulls a plunger or pivoted armature against the action of a spring.
  4. Flow Control: The plunger’s movement either opens or closes the orifice, regulating the flow of the medium (fluid or gas).
ComponentFunction
CoilGenerates magnetic field when energized
PlungerMoves to open or close the orifice
SpringReturns plunger to original position when de-energized
OrificeAllows or restricts fluid flow

For more details on what triggers a solenoid valve, visit our dedicated page on what triggers a solenoid valve.

Types of Solenoid Valves

There are two primary types of solenoid valves: direct acting and pilot operated. Each type has its own unique features and applications, making them suitable for different agricultural needs.

Direct Acting Solenoid Valves

Direct acting solenoid valves are straightforward and reliable. They are ideal for low flow applications, making them suitable for precise crop spraying tasks. These valves operate directly on the main orifice, meaning the plunger opens and closes the orifice without any additional pilot mechanism.

FeatureDescription
SimplicitySimple construction with fewer parts
ReliabilityHighly reliable due to fewer moving parts
ApplicationsSuitable for low flow and low pressure applications

Pilot Operated Solenoid Valves

Pilot operated solenoid valves are more complex and designed for high flow applications. They use a smaller pilot valve to control the larger main valve. This allows them to handle higher pressures and larger volumes of fluid, making them ideal for extensive irrigation systems (U.S. Solid).

FeatureDescription
ComplexityMore intricate design with additional pilot mechanism
CapabilityHandles higher pressures and flow rates
ApplicationsIdeal for high flow and high pressure situations

Understanding these types and their functionalities can help you choose the right solenoid valve for your agricultural needs. For further reading on solenoid valves, check out our detailed guide on solenoid valves.

Direct Acting Solenoid Valves

Components and Functionality

Direct acting solenoid valves are essential components in many agricultural systems. Understanding their components and functionality can help you optimize their use. These valves consist of several key parts: a coil, a plunger, and a valve seat. When an electric current is applied, the magnetic field generated pulls the plunger towards the coil, opening the valve seat and allowing fluid or gas to flow through (U.S. Solid).

In a de-energized state, the valve remains closed due to the core spring and fluid pressure holding the valve seal on the seat. When energized, the core and seal are pulled into the solenoid coil, thus opening the valve.

ComponentFunction
CoilGenerates magnetic field when electric current is applied
PlungerMoves towards coil to open valve seat
Valve SeatAllows or restricts flow of fluid or gas

Direct-acting valves need full power to operate and can be either normally open or normally closed. In a normally closed valve, the inlet pressure is released when the solenoid coil retracts, allowing fluid to pass through the outlet (The Hope Group).

Applications in Agriculture

Direct acting solenoid valves have significant applications in agriculture, particularly in crop spraying systems. These valves offer precise control over the flow of liquids, making them ideal for tasks that require accurate spraying.

Some common applications include:

  • Irrigation Systems: These valves help control the water flow, ensuring efficient irrigation.
  • Fertilizer Distribution: Direct acting solenoid valves regulate the flow of liquid fertilizers, providing uniform distribution across crops.
  • Pesticide Application: They ensure precise application of pesticides, minimizing waste and environmental impact.

To ensure optimal performance, it’s crucial to perform regular maintenance on your solenoid valves. For more tips, check out our section on solenoid valves maintenance.

By understanding the components and functionality of direct-acting solenoid valves, you can make informed decisions about their use in your agricultural practices. For more in-depth information on what triggers a solenoid valve, visit what triggers a solenoid valve.

Pilot Operated Solenoid Valves

Pilot operated solenoid valves are essential components in many agricultural applications, especially for managing high flow rates. Understanding how these valves work and their specific uses can help you optimize your crop spraying system.

Mechanism and Function

Pilot operated solenoid valves consist of two main parts: the pilot valve and the main valve. When an electric current is applied to the coil of the pilot valve, it generates a magnetic field. This magnetic field opens or closes the pilot valve, which in turn affects the flow of fluid or gas. The fluid then acts on the diaphragm of the main valve, controlling the overall flow.

These valves are designed to convert electrical energy into mechanical energy, causing a magnetic response. The solenoid activates when an electrical current passes through the wire coil. This activation allows the valve to control the flow of fluid in hydraulic and pneumatic systems.

Pilot operated valves use the pressure of the fluid in the line to open the valve, allowing for the use of a smaller coil and lower cost. These valves consume less electrical power but require sufficient pressure to operate (The Hope Group).

Usage in High Flow Applications

Pilot operated solenoid valves are ideal for high flow applications, making them perfect for various agricultural tasks, including crop spraying. These valves are particularly useful in scenarios where a high flow rate is necessary but electrical power consumption needs to be minimized.

Internally piloted solenoid valves are designed for switching higher pressures with larger orifice sizes. They are equipped with either a 2- or 3-way pilot solenoid valve, where a diaphragm or a piston provides the seal for the main valve seat. These valves require a minimum pressure differential to ensure satisfactory opening and closing (Omega).

ParameterSpecification
Coil Voltage12V, 24V, 110V, 220V
Pressure RatingUp to 300 psi
Flow RateHigh (varies by model)
Temperature Range-40°F to 250°F

Using pilot operated solenoid valves in your crop spraying system can greatly improve efficiency and performance. For more information on solenoid valves, visit our solenoid valves page. To understand what triggers these valves, check out our article on what triggers a solenoid valve.

By employing these valves, you can achieve better control over fluid flow, ensuring that your crops receive the right amount of spray at the right time. This can lead to healthier crops and improved yields, making your farming operations more productive and profitable.

Troubleshooting Solenoid Valve Issues

Understanding how to troubleshoot solenoid valve issues is crucial for maintaining the efficiency of your crop spraying systems. Here’s a detailed look at common problems and practical solutions, along with maintenance tips for optimal performance.

Common Problems and Solutions

Several issues can cause a solenoid valve to malfunction. Knowing what triggers a solenoid valve and the typical problems can help in troubleshooting effectively.

ProblemPossible CauseSolution
Valve not opening or closingRust, dirt, corrosion, missing equipment, incorrect voltage or currentClean or replace the valve, ensure correct voltage
Coil issues (burning, melting, remaining cold)Short circuit, slow coil armature, incorrect voltage supply, high temperaturesCheck and correct voltage, replace damaged coil
Irregular pressure and disturbing soundsWater hammering, irregular pressureInstall a T-piece pipe, increase pipe dimensions
Leakage or partial closingDust and sediments, contaminationRegular cleaning, use filters to prevent contamination

(Comet Integrated)

  1. Rust and Corrosion: Solenoid valves exposed to moisture can rust and corrode, preventing proper operation. Regularly inspect and clean the valves to prevent rust buildup.
  2. Dirt and Debris: Particles such as dust and sediments can enter the valve, causing leakage or blocking the valve completely. Ensure the system is clean and use filters to minimize contamination.
  3. Voltage Issues: Incorrect voltage or current can lead to coil issues. Verify that the voltage supply matches the valve specifications to avoid short circuits or coil armature problems (Comet Integrated).
  4. Water Hammering: Irregular pressure can cause disturbing sounds and damage the valve. Mitigate water hammering by installing a T-piece pipe or increasing the pipe size.

Maintenance Tips for Optimal Performance

Regular maintenance is key to ensuring your solenoid valves function efficiently in your crop spraying systems. Here are some practical tips:

  1. Routine Inspection: Regularly check for signs of wear, rust, and corrosion. Replace any components showing significant damage.
  2. Cleanliness: Keep the valve and surrounding areas clean. Use compressed air to remove dust and debris from the valve’s internals.
  3. Proper Voltage Supply: Ensure that the voltage supplied to the solenoid matches the manufacturer’s specifications. Incorrect voltage can cause coil damage and operational failures.
  4. Prevent Contamination: Use filters to prevent dirt and sediments from entering the valve. Contaminants can cause leakage and blockage, leading to valve failure.
  5. Monitor Pressure: Regularly monitor the pressure levels to avoid irregularities that can cause water hammering and other issues (Comet Integrated).

By following these troubleshooting and maintenance tips, you can ensure your solenoid valves operate efficiently, ultimately improving your crop spraying performance. For more detailed guidance on maintaining and troubleshooting your solenoid valves, visit our resource on solenoid valves.

Posted on by

What is the common problem of solenoid valve?

Reading Time: 7 minutes

Understanding Solenoid Valves

Purpose of Solenoid Valves

Solenoid valves are essential for controlling the flow of various liquids and gases, making them a versatile component in numerous applications ranging from industrial machinery to home appliances. These valves operate by moving a piston to cover or uncover an internal orifice, creating a tight seal with the help of differential pressure and spring force. Solenoid activation results in the movement of internal components, either opening or closing the valve.

Solenoid valves are used across many applications:

  • Industrial Machinery: For controlling the flow of air, water, and other fluids.
  • Automobiles: Used in fuel injection systems and other fluid control applications.
  • Home Appliances: Found in washing machines and dishwashers to control water flow.

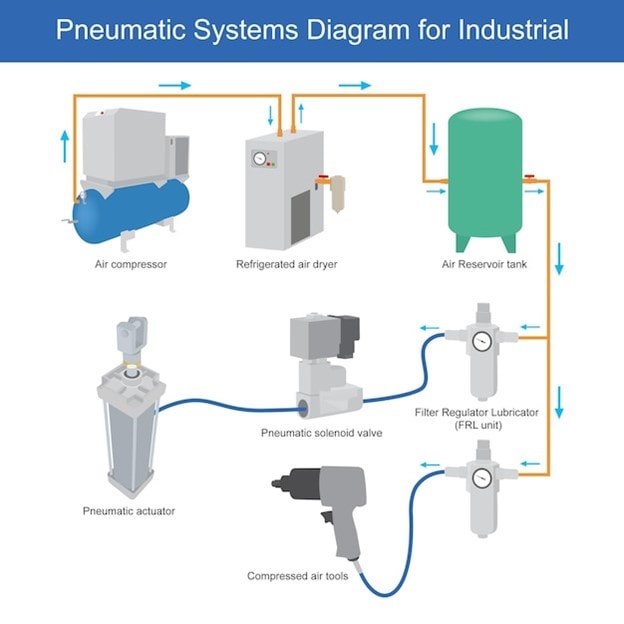

  • Pneumatic Systems: Regulate the passage of air in a circuit.
  • Liquid Systems: Control the flow of various liquid mediums.

Working Principle of Solenoid Valves

Solenoid valves function by converting electrical energy into mechanical energy, which causes a magnetic response. When an electrical current passes through the wire coil of the solenoid, it activates the solenoid. This activation controls the flow of fluid in hydraulic and pneumatic systems. Solenoid valves are often used to replace manual valves or for remote control (The Hope Group).

Here’s a step-by-step breakdown of how solenoid valves work:

  1. Electrical Activation: An electrical current activates the solenoid.
  2. Magnetic Response: The current generates a magnetic field in the coil.
  3. Plunger Movement: The magnetic field moves a plunger within a sleeve tube.
  4. Orifice Control: The plunger either opens or closes an orifice in the valve body.
  5. Flow Regulation: This action allows or prevents the flow of liquids or gases through the valve (Bürkert).

For more details on what triggers a solenoid valve, visit our article on what triggers a solenoid valve.

Understanding these principles can help you make informed decisions when selecting solenoid valves for your crop spraying needs, ensuring optimal performance and efficiency.

Factors Influencing Solenoid Valve Selection

When choosing the right solenoid valves for crop spraying, it’s essential to consider several factors that could affect performance and longevity. Two primary considerations are the material of the valve and the environmental conditions in which the valve will operate.

Material Considerations

The material of the solenoid valve is crucial because it needs to withstand the specific media it will regulate. Different materials offer varying levels of resistance to corrosion and wear.

  1. Plastic: Lightweight and resistant to corrosion, but may not be suitable for high-pressure applications.
  2. Steel: Durable and capable of handling high pressures but can corrode if not properly treated.
  3. Brass: Commonly used for its good balance of durability and corrosion resistance.
  4. Bronze: Offers excellent corrosion resistance and is often used in marine applications.
  5. Aluminum: Lightweight and corrosion-resistant but may not be suitable for all media types.
  6. Stainless Steel: Highly recommended for applications involving beverages or food liquids due to its safety and corrosion resistance.
MaterialCorrosion ResistanceDurabilityCommon Uses
PlasticHighLowLow-pressure
SteelModerateHighHigh-pressure
BrassHighModerateGeneral-purpose
BronzeVery HighModerateMarine
AluminumHighModerateLightweight applications
Stainless SteelVery HighVery HighFood and beverage

Environmental Conditions

The environment where the solenoid valve will be used is another critical factor. Harsh conditions such as outdoor exposure, high temperatures, corrosive substances, explosive or dusty environments, and moist conditions require specific materials and IP ratings to ensure the valve can withstand the surroundings (Starter Solenoid).

  1. Outdoor Exposure: Valves need to be weather-resistant and possibly UV-resistant.
  2. High Temperatures: Materials like stainless steel or specially treated metals may be required.
  3. Corrosive Substances: Non-corrosive materials like plastic or specially coated metals are preferable.
  4. Explosive Environments: Valves must meet specific safety standards to prevent ignition.
  5. Dusty Environments: Valves with high IP ratings are needed to prevent dust ingress.
  6. Moist Conditions: Waterproof materials and high IP-rated valves are essential.

For more information on how to choose suitable solenoid valves for your specific needs, check out our article on what triggers a solenoid valve.

By carefully considering these material and environmental factors, you can ensure that your solenoid valve selection will meet the demands of your agricultural applications. For additional guidance on maintaining and troubleshooting solenoid valves, visit our section on solenoid valves.

Types of Solenoid Valves

Choosing the right solenoid valve for your crop spraying needs is essential to ensure efficient and effective operation. This section delves into the different types of solenoid valves, highlighting their unique characteristics and applications.

Direct-Acting vs. Pilot-Operated Valves

Direct-Acting Valves

Direct-acting solenoid valves open the valve magnetically through direct action. The coil pushes and pulls a shaft to shift the valve seat. These valves require full power to operate and can be either normally open or normally closed, depending on the application (The Hope Group).

  • Advantages: Quick response, reliable operation in low-pressure systems.
  • Disadvantages: Higher power consumption, suitable for smaller flow rates.

Pilot-Operated Valves

Pilot-operated valves use the pressure of the fluid in the line to open the valve. This allows for the use of a smaller coil and lower cost. However, these valves require available pressure to operate effectively.

  • Advantages: Lower power consumption, suitable for larger flow rates.
  • Disadvantages: Requires a minimum pressure differential, slower response compared to direct-acting valves.

2-Way, 3-Way, and 4-Way Valves

Solenoid valves are available as 2-way, 3-way, and 4-way valves, each serving different applications in agriculture and crop spraying.

2-Way Valves

2-way solenoid valves have two ports, an inlet, and an outlet. They are used in On/Off applications that require a quick response and higher flow rates (The Hope Group). These valves can be normally open or normally closed.

Valve TypePortsApplications
2-Way2 (Inlet, Outlet)On/Off control, Quick response

3-Way Valves

3-way solenoid valves have three ports and can be in one of two states or circuits. These valves are used to mix or divert the flow of fluids. They are ideal for applications that require a change in the flow direction.

Valve TypePortsApplications
3-Way3Mixing, Diverting flow, Control of multiple circuits

4-Way Valves

4-way solenoid valves have four or five ports and are typically used in complex applications that require precise control of fluid flow. These valves are commonly used in pneumatic or hydraulic systems where directional control of actuators is necessary (The Hope Group).

Valve TypePortsApplications
4-Way4 or 5Pneumatic systems, Hydraulic systems, Precise directional control

When selecting a solenoid valve for your crop spraying system, consider the specific requirements of your application, including the desired flow rate, pressure, and control functions. For more information on solenoid valves and their applications, visit our detailed guide on solenoid valves. To understand what triggers a solenoid valve, refer to our article on what triggers a solenoid valve.

Maintenance and Troubleshooting

Common Solenoid Valve Issues

Understanding the common problems of solenoid valves in crop spraying systems can help you maintain equipment efficiency and avoid significant downtime. Here are some frequent issues you might encounter:

  • Failure to Open: Solenoid valves may not open properly due to high temperatures, a leaking solenoid, or a dirty plunger. This leads to a partial or complete seal of fluid flow, potentially causing system damage. (AgProud)
  • Failure to Close: If a solenoid valve does not close properly, it can cause fluid flow stagnation and backup. This may result in overheating and damage to heat-sensitive components. Causes include dirt on the plunger head, corrosion buildup, or a stuck plunger. (AgProud)
  • Coil Issues: Solenoid valve coils can develop problems with wiring, insulation, and contact points, leading to short circuits, corrosion, or even electrical fires. (AgProud)
  • Noise: Intermittent valve noise can be caused by debris in the valve’s linear motion potentiometer or contamination of the solenoid coil, leading to screeching or clicking sounds. (AgProud)
  • Partial Closure: Manual overrides, uneven pressure, coil power problems, dented armature tubes, damaged valve seats, or misplaced system components can cause partial closure of solenoid valves. (Comet Integrated)
  • Coil Problems: Issues such as burning, melting, or remaining cold despite power supply can result from short circuits, slow coil armatures, incorrect voltage supply, or high temperatures of the gas or liquid. (Comet Integrated)
  • Irregular Sounds: Pressure variations can lead to buzzing noises during valve operation. Water hammering can also contribute to these sounds. (Comet Integrated)
  • Contamination: Particles like dust and sediments can enter solenoid valves over time, causing leakage and partial closure problems. (Comet Integrated)

Troubleshooting and Solutions

Addressing these issues involves specific troubleshooting steps. Here are solutions to common solenoid valve problems:

  • Failure to Open:
  • Solution: Check for exposure to high temperatures and ensure the solenoid is not leaking. Clean the plunger to remove any dirt or debris causing blockage.
  • Failure to Close:
  • Solution: Inspect the plunger head for dirt and remove any corrosion buildup. Ensure the plunger is not stuck and can move freely.
  • Coil Issues:
  • Solution: Examine the wiring, insulation, and contact points for signs of short circuits or corrosion. Replace any damaged components to prevent electrical fires.
  • Noise:
  • Solution: Clean the linear motion potentiometer and solenoid coil to remove debris. For water hammering, install a T-piece pipe and increase pipe dimensions to lower inlet pressure on valves.
  • Partial Closure:
  • Solution: Check wiring, component connections, and diaphragm settings. Ensure coil functionality and refit any inverted diaphragms before considering replacement.
  • Coil Problems:
  • Solution: Address short circuits and slow coil armatures. Ensure the voltage supply is correct and that the gas or liquid temperatures are within acceptable ranges.
  • Irregular Sounds:
  • Solution: Increase pipe sizes to lower inlet pressure on valves, reducing buzzing and water hammering noises.
  • Contamination:
  • Solution: Clean the valve to remove dust and sediment particles. Regular maintenance can help prevent contamination-related issues.

For more insights on maintaining and troubleshooting your solenoid valves, explore our detailed articles on solenoid valves and what triggers a solenoid valve.
