Control Valve Sizing Guide for Efficient Farming Operations

Reading Time: 8 minutes

Proper control valve sizing is a foundational step in designing efficient and reliable fluid control systems. An incorrectly sized control valve can lead to poor performance, increased maintenance, and even system failure. This guide covers the essentials of control valve sizing to help you avoid common mistakes and optimize your process control.

Understanding Control Valve Sizing Basics
Key Factors in Control Valve Sizing
Understanding Flow Characteristics
- Linear Flow Characteristic
- Equal Percentage Flow Characteristic
Choosing the Right Valve Type
Steps to Size a Control Valve
Common Pitfalls in Control Valve Sizing
Advanced Considerations in Control Valve Sizing
The Impact of Proper Control Valve Sizing
Conclusion

Understanding Control Valve Sizing Basics

At its heart, control valve sizing matches a valve’s capacity to the system’s flow requirements. This is much more than simply picking a valve that fits the pipe diameter. The primary objective is to select a valve that effectively manages the required flow rate while maintaining stable process control over its entire operating range.

A properly sized control valve gives you precise control over the process, which is essential for product quality and system safety. It also helps reduce wear and tear on the valve and associated equipment. Ultimately, a well-sized control valve contributes to energy efficiency and lower operational costs.

Key Factors in Control Valve Sizing

Several variables influence the sizing calculations for control valves. Each one must be carefully considered to achieve an accurate result. Here are the most critical factors you need to gather before beginning any sizing calculations.

Flow Rate

The flow rate is the volume of fluid that must pass through the valve within a specific time frame. This is typically measured in gallons per minute (GPM) for liquids or cubic feet per minute (CFM) for gases. It’s important to know the minimum, normal, and maximum flow conditions to ensure the valve performs well across all scenarios.

Pressure Drop

The pressure drop, or differential pressure, is the difference between the pressure at the valve inlet and the valve outlet. This pressure differential is what drives flow through the valve. Accurately determining the pressure drops at minimum and maximum flow is fundamental for calculating the required valve capacity.

Fluid Properties

The characteristics of the process fluid heavily influence valve sizing. The specific gravity, density, viscosity, and temperature required for the process are all essential inputs for sizing equations. Additionally, the fluid’s vapor pressure is critical for liquid sizing to predict and avoid flashing and cavitation.

For gas or steam services, properties like compressibility and the ratio of specific heats are needed. Understanding the fluid’s potential for corrosion or erosion also guides the selection of the appropriate valve body and valve trim materials. This is an important step in selecting control valve components.

Understanding Flow Characteristics

A valve’s flow characteristic describes the relationship between the valve’s travel (how much it’s open) and the flow rate through it. This relationship is determined by the design of the valve trim. The two most common inherent flow characteristics are linear and equal percentage.

Selecting the right flow characteristic is vital for achieving stable process control. An incorrect choice can lead to a system that is either too sensitive or too sluggish. The decision depends on how the pressure drop changes with the flow rate in your specific system.

Linear Flow Characteristic

A linear valve produces a flow rate directly proportional to the amount of valve travel. For example, at 50% open, the flow rate is 50% of the maximum flow. A linear valve is typically used in systems where the pressure drop across the valve remains relatively constant as the flow rate changes.

Equal Percentage Flow Characteristic

An equal percentage valve produces a change in flow that is proportional to the flow rate just before the change. This means that for each equal increment of valve travel, the flow rate changes by an equal percentage of the previous flow. This type of equal percentage valve is ideal for systems where a significant portion of the pressure drop is lost to the piping and other equipment, resulting in a smaller pressure drop available for the valve at high flow rates.

Choosing the Right Valve Type

The valve style chosen has a significant impact on control performance, capacity, and cost. While there are many designs, a few common types are used in the majority of process control applications. Consulting a valve manufacturer can provide guidance for a specific application.

Valve Type	Primary Application	Advantages	Disadvantages
Globe Valve	Precise flow and pressure control	Excellent throttling, good rangeability, various flow characteristics available	Higher pressure drop, higher valve cost, can be bulky
Ball Valve	On/off service, some throttling	High flow capacity, tight shutoff, low pressure drop, relatively inexpensive	Limited throttling capability in standard designs, can have high torque
Butterfly Valve	Large-volume, low-pressure applications	Low cost, lightweight, good for large pipe sizes, high flow capacity	Limited pressure drop capability, can be prone to cavitation
Segmented Ball Valve	Throttling control for slurries or fibrous fluids	Good control, high capacity, can handle solids without clogging	More expensive than standard ball valves, shutoff may not be as tight

Other valve types include cage guided globe valves, which offer better stability and noise reduction. Diaphragm valves are used for corrosive or sterile services. The right valve selection depends on a thorough understanding of the process requirements and fluid properties.

Steps to Size a Control Valve

Now that we have covered the fundamentals, let’s outline the process for sizing a control valve. Following these steps systematically will lead to a correctly sized control valve.

Gather all necessary process data, including flow rates, pressures, temperatures, and fluid properties.
Determine the required flow characteristic (linear or equal percentage) based on the system’s dynamics.
Choose a suitable valve style (e.g., globe valve, ball valve) based on the application requirements.
Perform valve sizing calculations using the appropriate sizing equation to determine the required flow coefficient (Cv).
The flow coefficient is a measure of a valve’s flow capacity; a larger Cv means a higher flow rate for a given pressure drop.
Select a valve from a valve manufacturer’s catalog that provides the calculated Cv and meets all other process requirements.
Verify that the chosen valve operates within an acceptable range of valve travel (typically 20-80% open) for normal conditions.

Many engineers use sizing software provided by manufacturers to simplify these sizing calculations. These tools, often called a sizing calculator, incorporate the complex formulas for liquid sizing, gas sizing, and two-phase flow, reducing the potential for manual errors.

Common Pitfalls in Control Valve Sizing

Even with software, mistakes can happen. Being aware of common pitfalls is the first step in avoiding them. Here are some frequent errors made during valve sizing.

Oversizing

An oversized control valve is the most common mistake. This happens when excessive safety factors are added, leading to a valve that is too large for the service. An oversized control valve will operate very close to its closed position, resulting in poor control, rapid wear on the valve trim, and potential system instability.

Undersizing

An undersized valve is less common but can be just as problematic. This valve will not have enough flow capacity to pass the required flow, even when fully open. This creates a bottleneck in the process and prevents the system from reaching its design capacity.

Ignoring Choked Flow and Cavitation

For liquid services, high pressure drops can cause the fluid pressure to drop below its vapor pressure within the valve body, a point known as the vena contracta. This can lead to flashing or cavitation, which can cause severe damage, noise, and vibration. Correctly accounting for choked flow and the potential for cavitation is critical for the longevity of the valve and safety of the system.

When the pressure at the vena contracta drops to the fluid’s vapor pressure, the flow becomes choked. At this point, further decreases in the downstream pressure will not increase the flow rate. Sizing software can predict these conditions and help select the right valve trim to mitigate the effects.

Advanced Considerations in Control Valve Sizing

Once you have the basics down, some advanced topics can help you fine-tune your valve selection. These factors are often important in severe or critical service applications.

Installed Characteristics

The inherent flow characteristic of a valve can be distorted by the system in which it is installed. The installed flow characteristic is the actual relationship between valve travel and flow in a specific system. Analyzing the installed characteristic helps confirm if the chosen valve will provide good control performance once it is part of the larger process.

Noise and Vibration

High fluid velocities through a control valve can generate significant noise and pipe vibration. This is especially true for gas services with high pressure drops. Special low-noise valve trim designs and sizing calculations are available to predict and reduce valve noise to acceptable levels.

Special Service Conditions

Applications involving high temperatures, high pressure, corrosive fluids, or slurries require special attention. The temperature required for the process affects material selection for the valve body and trim. High pressure applications might demand a specific valve style or pressure class to ensure safety and reliability.

The Impact of Proper Control Valve Sizing

The effort put into correct control valve sizing pays off in several significant ways.

Energy Savings

A properly sized valve minimizes unnecessary pressure drops, which means the pump or compressor does not have to work as hard. This directly translates to energy savings and reduced operating costs over the life of the plant. A smaller pressure drop means less wasted energy.

Improved Process Control

The primary goal of a control valve is to maintain a process variable at its setpoint. A correctly sized valve responds accurately and smoothly to signals from the control system. This leads to more stable operation, better product quality, and reduced process variability.

Extended Equipment Life

By avoiding issues like an oversized control valve, cavitation, and excessive vibration, proper sizing significantly extends the service life of the valve. It also reduces wear on other equipment in the system, like pumps and piping. This lowers maintenance costs and improves overall plant reliability.

Conclusion

Control valve sizing is a detailed but essential part of system design. It requires a solid understanding of fluid dynamics, process conditions, and the different types of valves available. By carefully gathering data, using the right sizing equations, and avoiding common errors, you can select a sized control valve that delivers optimal performance.

Remember that a correctly sized valve is the foundation of effective process control. It contributes to safety, efficiency, and profitability. Taking the time to get the valve size right will provide benefits for the entire lifespan of your system.

Posted on November 10, 2025November 10, 2025 by Marketing

Essential Guide to Control Valve Types for Modern Farming

Reading Time: 8 minutes

Choosing the correct control valve types for your system is a critical decision that impacts efficiency and safety. These essential devices manage fluid flow in countless industrial processes, but they are not a one-size-fits-all solution. Understanding the fundamental differences between various valve types is the first step to optimizing your operations.

This guide examines the main categories of control valves you will find in industrial settings. We will explore their features, common applications, and performance trade-offs. This information will help you select the right valve for any application, from simple on/off service to precise flow modulation.

Globe Valves: The All-Rounders
Ball Valves: Quick and Easy
Butterfly Valves: Compact and Efficient
Gate Valves: Full Flow Masters
Linear vs. Rotary Valves: A Key Distinction
- Comparing Valve Motion Types
Diaphragm Valves: Clean and Leak-Proof
Plug Valves: Simple and Versatile
Solenoid Valves: Automated On-Off Control
Needle Valves: Precision Flow Control
Check Valves: One-Way Traffic Controllers
Conclusion

Globe Valves: The All-Rounders

Globe valves are one of the most popular control valve types due to their excellent throttling capabilities. Their design features a movable disk-like element, or valve plug, and a stationary ring seat in a generally spherical valve body. This internal structure is what makes globe control valves so effective.

The movement of the valve plug in relation to the seat allows for precise adjustments to the flow rate. As a type of linear control valve, the valve stem moves up and down in a straight line to open or close the valve. This design gives them the ability to regulate flow accurately across a wide range.

While valves globe valves provide superior control, their winding flow path creates a significant pressure drop across the valve. This makes them less ideal for applications where energy efficiency is the top priority. They are frequently used in steam systems, fuel oil lines, and processes requiring fine-tuned flow control.

Ball Valves: Quick and Easy

Ball valves are a type of rotary valve that uses a spherical disc, or ball, with a hole through the center to control flow. When the hole is aligned with the pipe, the valve is fully open, allowing for straight-through fluid flow. A 90-degree turn of the valve stem moves the solid part of the ball into the flow path, stopping the flow completely.

These quarter-turn valves are celebrated for their quick operation and tight, reliable shutoff. Because they are a rotary control valve, they can be actuated quickly with a simple lever or automated actuator. This makes them perfect for on-off applications where rapid response is necessary.

While standard valves ball valves are not typically used for precise throttling, some models feature V-port or characterized balls for better control. The simple rotating closure mechanism of ball valves ball makes them durable and suitable for handling slurries and other challenging fluids. The basic ball control valve consists of the body, ball, stem, and seats.

Butterfly Valves: Compact and Efficient

Butterfly valves are another common type of rotary control device. They manage fluid flow using a disc that rotates on a shaft mounted in the center of the pipe. Their compact, lightweight design makes them a cost-effective option, especially in larger pipe diameters.

Like ball valves, standard butterfly valves are quarter-turn valves that are well-suited for on-off service. They create a relatively low pressure drop when fully open. High-performance butterfly valves butterfly valves feature offset disc and shaft designs, improving shutoff and allowing them to handle high pressure and temperature applications.

You will often find valves butterfly in water treatment facilities, chemical services, and large-scale HVAC systems. While they are economical and efficient, concentric butterfly valves may not provide the bubble-tight shutoff seen in other valve designs. However, offset designs offer excellent sealing for more demanding services.

Gate Valves: Full Flow Masters

Gate valves utilize a flat or wedge-shaped gate that moves perpendicular to the flow path. When the valve is fully open, the gate is completely out of the flow stream. This design provides an unobstructed path for fluid, resulting in a very minimal pressure drop.

This makes gate valves ideal for applications where full, unrestricted flow is a primary requirement. They are almost exclusively used for on-off service. Using a gate valve for throttling is not recommended because the partial flow can cause vibration and rapid erosion of the gate and seats.

Common applications include large water lines, steam systems, and oil and gas pipelines where the valve will remain either fully open or fully closed for long periods. These multi-turn valves require multiple rotations of the handle to move the gate from the open to the closed position. The gradual opening valve process prevents fluid hammer effects.

Linear vs. Rotary Valves: A Key Distinction

Control valves can be broadly categorized by their motion: linear or rotary. This distinction describes how the closure element moves to control flow within the valve body. Understanding this difference is fundamental to valve selection.

Linear valves, such as globe and diaphragm valves, use a sliding valve stem that pushes or pulls the closure element into and out of the flow path. These multi-turn valves often require several full rotations of the handwheel to go from fully open to fully closed. This linear motion provides precise positioning, making them excellent for throttling and accurate flow regulation.

Rotary valves, on the other hand, use a rotating closure element to manage flow. Ball valves, butterfly valves, and plug valves fall into this category. Most are quarter-turn valves, requiring only a 90-degree turn to move from fully open to fully closed, offering fast actuation.

Comparing Valve Motion Types

To make the differences clearer, consider this breakdown:

Linear Motion Valves:
- Examples: Globe, Gate, Diaphragm, Needle
- Action: Sliding stem for push/pull motion.
- Best For: Precise throttling and flow regulation (except gate valves).
- Characteristics: Generally slower actuation, higher accuracy.
Rotary Motion Valves:
- Examples: Ball, Butterfly, Plug
- Action: Rotating disc or plug across the flow path.
- Best For: On-off service, quick shutoff, and some throttling applications.
- Characteristics: Fast actuation (often quarter-turn), compact design.

Diaphragm Valves: Clean and Leak-Proof

Diaphragm valves use a flexible, elastomeric diaphragm to control flow. The diaphragm is pressed down onto a weir or the bottom of the valve body to stop the flow. This design isolates the fluid from all other valve components, such as the stem and bonnet.

This isolation makes diaphragm valves a top choice for processing corrosive, abrasive, or sanitary fluids. Since there are no packing glands to maintain, the risk of external leakage is eliminated. This valve offers a clean and secure solution for sensitive applications.

You will find diaphragm valves extensively in the pharmaceutical, food and beverage, and chemical industries where product purity is paramount. Their main limitations are typically related to temperature and pressure, which are dictated by the diaphragm material. They provide excellent shutoff but may have a lower flow capacity compared to other valve types.

Plug Valves: Simple and Versatile

A plug valve is a rotary valve that uses a cylindrical or tapered plug with a hollow passageway. A quarter-turn rotation aligns the hollow part with the flow for an open position or turns the solid part to block the flow for a closed position. Their design is one of the simplest among all valve types.

Plug valves are known for their durability and effective shutoff capabilities in demanding services. They are excellent for handling fluids with suspended solids, slurries, and viscous media. Different port designs, such as rectangular or diamond ports, allow them to be used for on-off or throttling services.

These rugged valves are common in chemical processing, wastewater treatment, and the oil and gas industry. Some designs require lubrication to reduce friction and help seal the valve, while others feature special sleeves or linings that make them maintenance-free. Their simplicity and robust construction make them a reliable choice.

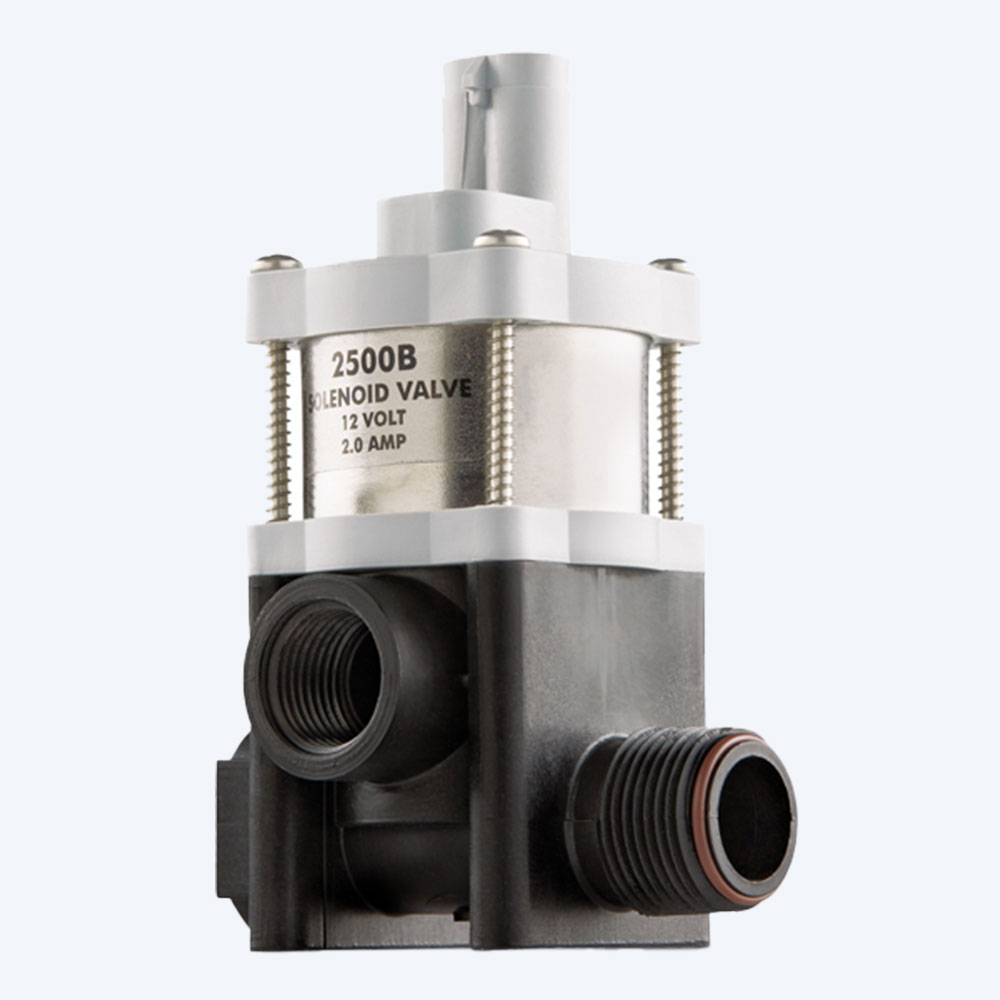

Solenoid Valves: Automated On-Off Control

Solenoid valves are electromechanically operated valves used to automate flow control. A solenoid valve valve consists of a coil, plunger, and a valve body with one or more ports. When an electric current is sent to the coil, it creates a magnetic field that moves the plunger, which in turn opens or closes the valve.

These valves are primarily used for on-off service in air, gas, water, and oil systems. Their primary advantage is their fast response time and ability to be controlled remotely by an electrical signal. This makes them a key component in automated process control systems.

You will see valves solenoid valves in a wide range of applications include irrigation systems, car washes, and industrial machinery. They are not typically used for throttling flow, as their design is optimized for fully open or fully closed states. Their selection depends on the fluid, pressure, temperature, and electrical requirements of the system.

Needle Valves: Precision Flow Control

Needle valves are a type of globe control valve that offers extremely fine control over the flow rate. They use a long, tapered needle-like plunger that fits precisely into a seat. The fine-threaded valve stem allows for many rotations, enabling very small adjustments to the plunger’s position.

This design allows for highly accurate and repeatable flow settings, especially at low flow rates. This precision makes them essential for applications requiring meticulous flow metering. Valves needle valves are the go-to choice for instrumentation panels, sampling lines, and laboratory settings.

While valves needle excel at precision, their design inherently restricts flow, resulting in a significant pressure drop. They are not suitable for large-volume flow applications. For delicate tasks like controlling gas flow to an analyzer or managing liquid level in a sight glass, their performance is unmatched.

Check Valves: One-Way Traffic Controllers

Although not a flow control valve in the traditional sense, check valves are critical for process safety. Their sole purpose is to allow fluid flow in only one direction, automatically preventing backflow. They are passive devices that operate based on the differential pressure across the valve.

There are many designs, including swing check, lift check, and ball check valves, each suited for different conditions. When flow moves in the correct direction, the pressure opens the valve. If the flow reverses, the backpressure pushes the closure element against its seat, stopping the reverse flow.

Check valves are essential in pump and compressor discharge lines to protect equipment from damage caused by backflow. They are also used to prevent cross-contamination between fluid lines. While they do not regulate flow, their presence is fundamental to the proper operation of many fluid systems.

Conclusion

Selecting the appropriate control valve type is essential for the performance and safety of any industrial process. From the precise throttling of a globe valve to the quick shutoff of a ball valve, each valve type offers a specific set of advantages. Factors such as fluid properties, pressure, temperature, and required flow characteristics all influence the final choice.

By understanding the fundamental workings of these different control valves, you can make a more informed decision for your specific needs. The right valve ensures efficient operation, enhances safety, and minimizes maintenance. Whether you need to control flow, manage pressure, or simply start and stop a process, a suitable valve offers the solution.

Posted on November 10, 2025November 10, 2025 by Marketing

Maximizing Efficiency with Butterfly Control Valve Upgrades

Reading Time: 10 minutes

You’ve probably seen them without even realizing it. They are in irrigation lines, on processing equipment, and a whole lot more. A butterfly control valve is one of the most common ways to manage fluid flow, offering a reliable way to regulate or stop it.

You’re not alone if you’ve scratched your head about this. Many people see these devices as simple open-and-close mechanisms. They are so much more than that, and knowing the difference can save you time, money, and big headaches.

You’ll learn what these essential control valves are, how they work, and where they shine. We will cover the valve parts that make them function and help you pick the right one. Let’s get into the specifics of these versatile components.

What Exactly is a Butterfly Control Valve?
The Core Components Working Together
Types of Butterfly Valves: Which One is Right for You?
Why Choose a Butterfly Control Valve for Your Farm or Business?
Common Applications in Agriculture and Industry
Installation and Maintenance Tips
- Getting the Installation Right
- Keeping It Running Smoothly
Conclusion

What Exactly is a Butterfly Control Valve?

Think of it like a damper in a chimney. When you open the damper, smoke goes up and out. A butterfly control valve works on a similar, simple principle but with much more precision for industrial and agricultural control applications.

Inside the valve, a metal disc is mounted on a rod. A quick quarter-turn of that rod moves the valve disc from fully open to fully closed, altering the flow direction and volume. This design is what makes it a quarter-turn valve, known for its rapid operation.

Its main job is to start, stop, or throttle the flow of fluids like water, chemicals, or even air. Unlike a simple on/off valve, a butterfly control valve can be positioned at any angle between fully open and fully closed to precisely control flow. This ability to regulate flow is what makes them critical in many systems.

The Core Components Working Together

Every butterfly valve has four key parts that work in harmony to control flow. You have the body, the disc, the stem, and the actuator. Understanding each piece helps you see the full picture of the valve’s operation.

The Disc: The Heart of the Valve

The disc is the gatekeeper of the valve and is often called the valve disc. It is the part that sits in the middle of the pipe and pivots to block or allow flow. This component is always in the flow path, even when fully open, which creates a small pressure drop.

The valve design of the disc can vary for different jobs. Some are simple flat plates for basic on-off service, while others are contoured to provide more precise control flow when throttling. An erosion resistant disc is crucial for applications involving abrasive media like slurry control.

The material of the disc is very important. It has to stand up to whatever is flowing through it. Common materials include stainless steel for corrosion resistance or ductile iron for general water service, sometimes with special coatings to enhance durability.

The Body: The Outer Shell

The valve body is the outer casing that holds everything together and connects directly to your pipes. The body design affects how you install the valve and its overall strength. This outer shell is a critical structural component.

There are a few main body styles. Wafer-style bodies are the most common; they feature a compact design and clamp between two pipe flanges. Lug-style bodies have threaded holes, so they can be bolted directly to one pipe flange, which is helpful for end-of-line service where you might need to disconnect one side for maintenance.

The body material can range from ductile iron with a protective epoxy powder coating to various grades of valve stainless steel for corrosive environments. The choice of body material depends entirely on the application and the media being handled. This variety makes butterfly control valves suitable for a broad range of industries.

The Stem & Seals: The Connection and Containment

The stem is the shaft that connects the disc to the actuator, transferring the rotational motion to open or close the valve. It must be strong enough to handle the torque required to move the disc against the flow and pressure. The way the stem connects to the disc can also vary, affecting the valve’s performance characteristics.

Equally important are the seals. These components prevent leaks from around the stem and between the disc and the body. Over time, friction and media exposure can lead to seal wear, so selecting the right material is vital for long-term reliability.

High-quality seals seals are essential for ensuring a tight shutoff and preventing fugitive emissions in chemical applications. Regular inspection for seal wear is a key part of valve maintenance. Proper sealing is fundamental to the valve’s function and safety.

The Actuator: The Brains of the Operation

The valve actuator is what turns the stem to open or close the valve. Your choice of actuator depends on how you plan to use the valve. It can range from a simple manual handle to a sophisticated automated system.

The simplest actuators are manual handles or gearboxes. A handle is great for small valves that you open and close quickly. A gearbox gives you more muscle for larger, high-pressure valves that need more torque to turn.

For automation, you have pneumatic, hydraulic, or an electric actuator. A pneumatic valve actuator uses compressed air and is very fast and reliable. An electric actuator uses a motor and is excellent for precise positioning and remote control, often found in advanced control applications.

Types of Butterfly Valves: Which One is Right for You?

Not all butterfly valves are created equal. They are usually grouped by the design of their disc and seat. This affects their performance, pressure rating, and the jobs they’re best suited for.

Here’s a quick breakdown of the main types of butterfly valves available. Knowing the difference will help you select the correct valve for your specific needs. Each type offers a different balance of performance, durability, and cost.

Valve Type	Also Known As	Common Applications	Pressure Rating
Concentric	Zero Offset / Resilient Seated	General service, low pressure water, HVAC, drinking water	Low
Double Eccentric	High Performance / Double Offset	Chemicals, oil and gas, throttling, water industry	Medium to High
Triple Eccentric	Triple Offset	Critical service, high temperature, steam, severe service	High to Severe

Concentric (Zero Offset) Valves

This is the most basic and common type of butterfly valve, often called a resilient seated valve. In a concentric design, the stem passes through the centerline of the disc. The disc seats against a soft, resilient seat, like rubber or EPDM, which lines the valve body.

Because the seat makes full contact with the disc, it creates a tight seal. This constant contact, however, also causes wear over time, limiting its lifespan in high-cycle applications. These are best for low-pressure applications where the valve isn’t opened and closed constantly.

You will often see these used in water distribution and food and beverage industries. They are inexpensive and get the job done for simple on-off tasks. This design is widely used across the water industry for its cost-effectiveness.

Double Eccentric (High Performance) Valves

Things get a little more clever with double eccentric or double offset valves. This design has two offsets. First, the stem is positioned behind the disc, not on its centerline.

Second, the stem is also moved slightly to one side of the pipe’s centerline. These two offsets create a cam action. The disc swings into the seat in the final few degrees of closing, significantly reducing friction and seal wear.

This high performance valve design lets them handle higher pressures and temperatures. It also gives them a much longer service life than concentric valves. They are a good fit for chemical processing or situations that require throttling.

Triple Eccentric Valves

This is the top-tier of butterfly valves, known as the triple offset valve. It adds a third offset, which is an angled contact axis for the seat and disc. This geometry completely eliminates any rubbing or friction between the seat and the disc during operation.

The disc only contacts the seat at the exact moment of full closure. This creates a bubble-tight, zero-leakage seal, even in harsh conditions. The seat is typically made of metal, allowing these valves to handle very high temperatures and abrasive materials.

You find triple eccentric valves in the toughest jobs. Think steam, oil and gas, and chemical plants where failure is not an option. According to research on valve selection criteria from industry leaders, these are often chosen for severe service and critical isolation tasks.

Why Choose a Butterfly Control Valve for Your Farm or Business?

So, with all the valve options out there, from ball valves to gate valves, why go with a butterfly? They have some clear advantages, especially in agriculture and for original equipment manufacturers. They are also cost effective for medium sized farms.

Here are some of the main benefits these valves offer:

Lightweight and compact design. They take up less space and are easier to install than a bulky gate valve or globe style valve.
Relatively inexpensive. Especially in larger pipe sizes, they often cost less than other valve types.
Fast-acting. That quarter-turn action means you can go from fully open to fully closed in seconds.
Good for large volumes. They offer very little restriction to flow when fully open.
Versatility in control applications. They can be used for on/off, throttling, and isolation duties across a broad range of services.

But they aren’t perfect for every situation. The disc is always in the flow, so it does create a slight pressure drop. Also, in high-velocity liquid applications, they can be prone to cavitation, which can damage the disc and body over time.

Common Applications in Agriculture and Industry

The versatility of butterfly control valves is what makes them so popular. On the farm, they are a staple in irrigation systems. They let you easily control water flow to different fields or zones.

They are also used in equipment for spreading fertilizers or chemicals. Their quick shutoff helps prevent spills and gives precise control over application rates. Many equipment manufacturers build them right into their sprayers and spreaders as part of their featured products.

Beyond the farm, their uses are nearly endless. You’ll see them in municipal water treatment plants, power generation facilities, and HVAC systems. Anywhere you need to control a large volume of fluid efficiently, a butterfly valve is likely a good choice, especially for the broader water industry and systems handling drinking water.

Some applications requiring tight control may also use them in conjunction with other types, such as check valves to prevent backflow or pressure relief valves for safety. You may even see specialized air release / vacuum valves installed in pipelines to protect them from pressure fluctuations. Their widespread use means agricultural suppliers and industrial distributors often have a broad range in stock, making it easy to find valve parts or complete retrofit solutions.

Installation and Maintenance Tips

Getting the most out of your butterfly valve starts with a good installation. And a little routine maintenance goes a long way to keep it working for years. It is not difficult, but you have to do it right.

Getting the Installation Right

A poor installation is the number one reason these valves fail early. Make sure the pipes on either side are aligned correctly. Any misalignment puts stress on the valve body and can cause the seal to fail prematurely.

Before you tighten the bolts, cycle the valve from open to closed a few times. This makes sure the disc isn’t hitting the inside of the adjacent pipe. This is a very common and costly mistake that can damage the valve before it even begins service.

Always make sure your pipes are clean before starting.
Place the valve between the flanges with the disc slightly open.
Tighten the bolts in a star pattern to apply even pressure on the flanges.
Once installed, cycle it one more time to check for smooth operation.

Keeping It Running Smoothly

Maintenance for butterfly valves is fairly simple. The best thing you can do is cycle the valve regularly. If a valve sits in one position for months, the resilient seated models can get stuck to the disc.

Regularly check for any leaks around the stem. If you see weeping, you may need to tighten the packing or replace the seals. Catching small leaks early prevents bigger problems later and improves overall system safety.

Finally, if you have an actuated valve, check the actuator. Make sure it’s getting the correct air pressure or voltage and that all connections are secure. A failing actuator can make you think the valve itself is the problem, so troubleshooting should always include the control system.

Conclusion

The humble butterfly control valve is a real workhorse in countless industries. From the irrigation lines on a small farm to complex chemical plants, it provides reliable flow control. It is simple, effective, and economical for a wide array of applications.

Choosing the right one comes down to your specific needs. Think about pressure, temperature, and what’s flowing through the pipe. You can consult technical resources or a manufacturer’s knowledge center for detailed specifications.

With the right selection and proper care, a butterfly control valve can be a component you install and simply forget about for a long, long time. It provides a dependable solution for managing fluid systems effectively. This ensures operational efficiency and reliability in your processes.

Posted on September 26, 2024September 26, 2024 by Marketing

A Game-Changer in Fluid Control

Reading Time: 5 minutes

In today’s rapidly evolving industrial landscape, staying ahead of the curve is not just an advantage—it’s a necessity. Texas Industrial Remcor has long been at the forefront of this evolution, consistently delivering innovative solutions that improve industrial operations across the Lone Star State and beyond. Our latest newsletter showcases how we’re continuing to push the boundaries of what’s possible in fluid control technology, and we’re excited to share these insights with you in greater detail.

Texas Industrial Remcor · A Game-Changer in Fluid Control

Our SV.2500B.1.WP Solenoid Valve: A Game-Changer in Fluid Control

At the heart of our newsletter is our featured product, the SV.2500B.1.WP Solenoid Valve. This isn’t just another valve—it’s a testament to our commitment to engineering excellence and our deep understanding of the challenges faced by modern industrial operations.

Unparalleled Performance

The SV.2500B.1.WP is a 2-Way Direct Operating, High Flow solenoid valve that’s designed to meet the most demanding needs of various industrial applications. With an impressive output range of 0-10 GPM and a maximum pressure rating of 100 PSI, this valve offers the kind of performance that can truly revolutionize fluid control operations.

Versatility Meets Efficiency

What sets the SV.2500B.1.WP apart is its versatility. Whether you’re in manufacturing, agriculture, or any other industry that relies on precise fluid control, this valve is engineered to deliver. Its high flow capacity makes it ideal for applications where large volumes of fluid need to be controlled quickly and accurately, while its robust construction ensures reliability even in harsh industrial environments.

Energy Efficiency at Its Core

In an era where energy efficiency is not just a buzzword but a critical factor in operational success, the SV.2500B.1.WP shines. Its design incorporates the latest advancements in fluid control technology, resulting in reduced power consumption without compromising on performance. This not only leads to cost savings but also aligns with the growing emphasis on sustainable industrial practices.

Advancing Fluid Control Technology: A Broader Perspective

While the SV.2500B.1.WP is a standout product, it’s just one example of how Texas Industrial Remcor is driving innovation in fluid control technology. Our approach to advancement is holistic, encompassing every aspect of our motorized and solenoid valves and control systems.

Reducing Power Consumption

One of the key challenges in industrial operations is managing energy costs. Our R&D team has been relentless in their pursuit of solutions that minimize power consumption. By optimizing valve designs and incorporating advanced materials, we’ve been able to create products that operate more efficiently, reducing the overall energy footprint of industrial processes.

Lowering Input Voltage Requirements

Another area where we’ve made significant strides is in reducing the input voltage requirements of our valves. This not only contributes to energy efficiency but also enhances safety in industrial settings. Lower voltage requirements mean reduced risk of electrical hazards and greater flexibility in system design.

Tackling the Heat Challenge

Operating temperatures have always been a concern in industrial environments. Excessive heat can lead to premature wear and tear, reduced efficiency, and even safety hazards. Our latest generation of valves and control systems are designed to operate at lower temperatures, extending their lifespan and improving overall system reliability.

Customer Success: The True Measure of Innovation

While technical specifications and innovative features are important, the true measure of any industrial product’s success is its impact on real-world operations. That’s why we’re particularly proud of the customer testimonials featured in our newsletter.

One of our recent customers shared, “Outstanding service, I’m impressed. The package came in on time and in a perfect condition. To summarize, I can recommend it.” This feedback encapsulates what we strive for at Texas Industrial Remcor—not just delivering superior products, but backing them up with exceptional service and reliability.

This customer’s experience is not an isolated incident. We’ve consistently received positive feedback on both our products and our commitment to timely delivery. In an industry where downtime can result in significant financial losses, the ability to deliver high-quality products on schedule is crucial.

Maximizing Efficiency: Tips from the Experts

Our newsletter also includes a section on tips and tricks for maximizing efficiency with solenoid valves. While these tips are valuable, we believe in going beyond just providing information—we want to empower our customers to get the most out of their fluid control systems. Here’s an expanded look at how you can optimize your operations:

1. Choose the Right Valve Type: The SV.2500B.1.WP, being a 2-Way Direct Operating valve, is ideal for high flow needs. However, different applications may require different valve types. Our team of experts can help you determine the best valve for your specific needs, ensuring optimal performance and efficiency.

2. Consider All Factors: While maximum pressure and flow rate are critical factors in valve selection, it’s important to consider other aspects as well. These might include the type of fluid being controlled, the operating environment, and any specific industry regulations. A holistic approach to valve selection can lead to significant improvements in system performance.

3. Regular Maintenance is Key: Even the best valves require proper maintenance to ensure long-term performance. We recommend establishing a regular maintenance schedule, which should include inspections, cleaning, and replacement of wear parts as needed. This proactive approach can prevent unexpected downtime and extend the life of your equipment.

4. Optimize Your Control Systems: Valves don’t operate in isolation. The efficiency of your fluid control system depends on how well all components work together. Consider upgrading to smart control systems that can provide real-time data and allow for more precise control, leading to improved efficiency and reduced waste.

5. Stay Informed About New Technologies: The field of fluid control is constantly evolving. Staying informed about the latest advancements can help you identify opportunities for improvement in your operations. Our team regularly keeps our customers up-to-date on the latest innovations.

Looking Ahead: Upcoming Events

As part of our commitment to the industries we serve, Texas Industrial Remcor actively participates in key industry events. Our newsletter highlights two upcoming events in the agriculture sector:

1. Sunbelt Agriculture Exposition: Scheduled for October 15-17, 2024, in Moultrie, Georgia, this event is North America’s premier farm show.

2. World AG Expo: Taking place from February 11-13, 2025, in Tulare, California, this is the world’s largest annual agricultural exposition.

Conclusion: A Commitment to Continuous Improvement

At Texas Industrial Remcor, we believe that the pursuit of excellence is an ongoing journey. Our newsletter is just one way we keep our customers informed about our latest innovations and industry insights. But our commitment goes beyond communication—it’s embedded in every product we design, every service we offer, and every customer interaction we have.

As we continue to push the boundaries of what’s possible in fluid control technology, we remain dedicated to our core mission: improving industrial operations across Texas and beyond. Whether it’s through groundbreaking products like the SV.2500B.1.WP Solenoid Valve, or through our ongoing efforts to advance fluid control technology as a whole, we’re here to help our customers overcome challenges and seize new opportunities.

We invite you to join us on this journey of innovation and excellence. Visit our website at www.sprayervalves.com to learn more about our products and services, or reach out to us directly to discuss how we can help optimize your operations. Together, we can shape the future of industrial fluid control.

Posted on September 11, 2024September 11, 2024 by Marketing

Agriculture and Industry with Texas Industrial Remcor’s Solenoid Valves and Control Systems

Reading Time: 3 minutes

Texas Industrial Remcor (TIR) is at the forefront of transforming agriculture and various industries with their cutting-edge solenoid valves and control systems. Their blog provides valuable insights into how their innovative products are enhancing efficiency, precision, and sustainability across a wide range of applications.

Solenoid Valves: The Unsung Heroes of Modern Farming

Solenoid valves play a crucial role in modern farming practices, silently ensuring precise flow control of liquids and gases. TIR’s high-quality solenoid valves are designed for unparalleled precision in controlling the application of water, fertilizers, and chemicals in agricultural settings. By efficiently managing water usage, these valves are integral to precision irrigation systems and essential for farmers looking to maximize productivity and sustainability. TIR’s solenoid valves offer numerous long-term benefits for livestock management as well. They are instrumental in automating feeding and watering processes, precisely controlling the flow of water and nutrients to optimize animal health and growth.

Enhancing Precision Agriculture with TIR’s Advanced Technology

Texas Industrial Remcor’s advanced technology is revolutionizing precision farming by providing innovative solutions that maximize efficiency, accuracy, and sustainability. Their solenoid valves and control systems are setting new standards in agricultural practices. TIR’s boom control valves, when paired with automatic section control (ASC) systems, significantly improve spraying efficiency, reduce input waste, and enhance application accuracy. These game-changing technologies are enabling farmers to optimize their operations and achieve higher yields sustainably. The company’s sprayer valves are also crucial for precise and reliable crop nurturing. Designed for low flows and quick component attachment, these valves give farmers total control over spray tips and chemical application. TIR’s commitment to precision craftsmanship makes their valves the artisanal instruments in the symphony of agriculture.

Mastering Fluid Control with Solenoid Valves and Control Systems

Beyond agriculture, solenoid valves are the unsung heroes of fluid control in various industries. These versatile devices silently ensure the precise flow and direction of liquids and gases in applications ranging from manufacturing to healthcare. TIR’s control systems act as the brain behind the brawn, ensuring efficient and reliable operation of solenoid valves. By offering a variety of control options, from basic on/off functionality to advanced proportional control, TIR enables users to fine-tune their fluid management processes for optimal performance. Innovations like TIR’s E-Chip™ technology are further enhancing the efficiency and reliability of solenoid valves. This breakthrough significantly reduces the operational needs of valves in terms of power, heat generation, and size, leading to improved performance and longevity.

Empowering Farmers and Manufacturers with Knowledge

Texas Industrial Remcor’s blog is not just a showcase of their products; it’s a valuable resource for farmers, DIY enthusiasts, and industry professionals looking to expand their knowledge. The blog covers a wide range of topics, from troubleshooting guides to comprehensive explanations of how various components work. For instance, their guide on connecting solenoid valves to a controller provides step-by-step instructions for farmers and manufacturers looking to optimize their processes. The blog also delves into the differences between solenoid and motorized valves, helping readers make informed decisions based on their specific needs. TIR’s commitment to education extends to their YouTube channel, where they share informative videos on topics like calculating gallons per minute for sprayers, finding the perfect spray system, and troubleshooting common issues. By empowering their audience with knowledge, TIR is helping to drive innovation and efficiency across industries.

Conclusion

Texas Industrial Remcor’s solenoid valves and control systems are revolutionizing agriculture and various industries by enhancing precision, efficiency, and sustainability. Our blog serves as a testament to the company’s expertise and dedication to empowering farmers, manufacturers, and professionals with the knowledge and tools they need to succeed. As the world continues to evolve, TIR remains at the forefront of innovation, constantly pushing the boundaries of what’s possible with their cutting-edge products and valuable insights. By embracing the future of farming and manufacturing with Texas Industrial Remcor, businesses can unlock new levels of productivity and success in an increasingly competitive landscape.

Posted on August 15, 2024October 17, 2024 by Marketing

How TIR is Helping Farmers Adapt to a Transforming Ag Industry

Reading Time: 5 minutes

The world of agriculture is undergoing a period of unprecedented change. From the urgent need to feed a growing global population with dwindling arable land to the rapid rise of smart farming technologies, today’s farmers face both immense challenges and exciting opportunities. As a leading provider of high-performance solenoid valves and sprayer control systems for over 25 years, Texas Industrial Remcor is proud to play a vital role in helping the agriculture industry navigate this transformation.

In this blog post, we’ll explore three key trends reshaping agriculture in 2024 and discuss how Texas Industrial Remcor’s advanced fluid control solutions are enabling farmers to thrive in this dynamic landscape.

Trend #1: The Sustainable Agriculture Imperative

Perhaps the most pressing issue facing modern agriculture is the need to drastically increase food production while simultaneously reducing the environmental footprint of farming. The United Nations projects that global food demand will surge 70% by 2050 as the world population balloons to nearly 10 billion. Yet the amount of arable land per capita is expected to plunge by over 30% in the same timeframe due to urbanization, desertification, and other factors.

This widening gap between food demand and land capacity is forcing farmers to seek out new ways to maximize crop yields and resource efficiency. One of the most promising solutions is precision agriculture – the use of advanced technologies to optimize inputs like water, fertilizers, and pesticides on a granular level.

At the heart of many precision agriculture systems are high-performance solenoid valves that enable ultra-precise control over spraying and irrigation. Texas Industrial Remcor offers one of the industry’s most extensive selections of U.S.-made solenoid valves, with options available for virtually any fluid, pressure, and flow rate. Our valves deliver unmatched accuracy and consistency, allowing farmers to apply just the right amount of inputs for optimal crop health while minimizing waste and runoff.

For example, our top-selling 5000 Series 3-Way Direct Acting Solenoid Valves are ideal for precision spraying in demanding agricultural environments. With a durable 304 stainless steel body, large 10mm orifice for high flow rates, and available NPT or push-to-connect fittings, these valves provide reliable performance season after season. By incorporating our solenoid valves into precision spraying equipment, farmers can dramatically reduce their environmental impact and input costs while boosting yields.

Trend #2: The Rise of Smart Agriculture

Another key trend transforming the agriculture industry is the rapid adoption of digital technologies and data-driven decision-making tools. The global smart agriculture market is expected to soar from $15 billion in 2020 to over $33 billion by 2027, representing a blistering 12% CAGR. From IoT-connected sensors and drones to AI-powered crop monitoring platforms, cutting-edge technologies are becoming mainstream on farms worldwide.

These smart agriculture solutions generate vast amounts of real-time data on weather patterns, soil conditions, plant health, and countless other variables. By analyzing this data, farmers can make proactive, informed decisions to optimize every aspect of their operations. However, translating data insights into real-world actions often requires advanced fluid control capabilities.

Texas Industrial Remcor’s solenoid valves and customized control panels serve as the essential link between smart agriculture software and physical spraying and irrigation equipment. Our valves offer ultra-fast response times and precise flow control, allowing farmers to dynamically adjust water, fertilizer, and pesticide application based on real-time conditions. We also offer extensive customization options, including custom manifolds, wiring harnesses, and control panels, enabling seamless integration with a wide range of smart agriculture systems.

One example of our smart agriculture solutions in action is our work with a leading precision irrigation company. By incorporating Texas Industrial Remcor valves and custom manifolds into their smart irrigation systems, this company empowered farmers to automatically optimize water usage based on data from soil moisture sensors, weather stations, and satellite imagery. The result was water savings of up to 40% and yield increases of over 12%.

Trend #3: Spraying Beyond Agriculture

While agriculture remains the primary market for spraying equipment, solenoid valve technologies are finding a growing range of uses in other industries. From turf management and landscaping to street cleaning and dust control, the benefits of precise, reliable fluid control are proving valuable across diverse applications.

One booming market is compact spraying equipment for ATVs, UTVs, and other utility vehicles. These nimble sprayers allow municipalities, landscapers, and groundskeepers to efficiently treat smaller areas that are inaccessible to larger equipment. Texas Industrial Remcor’s 8000 Series 2-Way Solenoid Valves are perfectly suited for these compact sprayers, offering high flow rates up to 15 GPM in a space-saving form factor.

Another emerging application is misting and cooling systems for outdoor venues, greenhouses, and livestock facilities. By precisely controlling the flow of water through high-pressure nozzles, these systems can efficiently lower ambient temperatures and improve air quality. Texas Industrial Remcor’s direct-acting solenoid valves provide the rapid cycling and fine flow control necessary for optimal misting performance.

As solenoid valve technology continues to advance, the range of potential applications will only expand further. With our deep engineering expertise and passion for innovation, Texas Industrial Remcor is well-positioned to develop cutting-edge valve solutions for any industry or use case.

The Texas Industrial Remcor Difference

In today’s fast-changing agriculture industry, having a trusted partner that deeply understands your fluid control needs is essential. At Texas Industrial Remcor, we’ve spent over two decades earning a reputation as the go-to experts for high-performance solenoid valves and sprayer control systems.

What sets us apart is our relentless focus on understanding and serving the unique needs of each customer. With the industry’s widest selection of U.S.-made solenoid valves and extensive customization capabilities, we excel at crafting optimized solutions for any application. Our experienced team works closely with each customer to select the ideal valves and components for their specific equipment and environment.

This commitment to customization and customer service, combined with the unmatched quality and reliability of our valves, translates into incredible value for our customers. In fact, our advanced sprayer control systems deliver an average ROI of 3800% thanks to dramatic reductions in input costs, waste, and labor. For farmers seeking to maximize profitability and navigate an uncertain future, Texas Industrial Remcor offers an unbeatable combination of performance, expertise, and ROI.

The Future of Agriculture is Fluid

As the agriculture industry races toward a future of sustainability, efficiency, and smart technology, one thing is clear: optimizing every drop of fluid will be essential. At Texas Industrial Remcor, we’re excited to continue partnering with farmers and spraying equipment manufacturers to solve their most challenging fluid control problems. With our expanding lineup of innovative valve products and unmatched customization capabilities, we’re ready to help the agriculture industry thrive in 2024 and for decades to come.

Is your spraying equipment ready for the future of agriculture? Contact us today to discover how Texas Industrial Remcor’s solenoid valves and fluid control solutions can help you maximize efficiency and profitability.

Posted on August 14, 2024August 14, 2024 by Marketing

Top 5 Benefits of Using Solenoid Valves in Modern Agriculture

Reading Time: 8 minutes

Discover how solenoid valves revolutionize flow control in agriculture, enhancing efficiency and ROI. Explore our selection of solenoid valves for water, gas, and more!

Introduction

Solenoid valves are electromechanically controlled devices that use an electromagnet to move a plunger, which in turn controls the flow of liquids or gases. These components are crucial in managing and directing fluid flow in various systems, ensuring smooth operation and improved efficiency. By responding to electrical signals, solenoid valves can accurately control the opening and closing of passages, making them essential in modern automated systems.

In this article, you will:

Gain an understanding of different types of solenoid valves.
Learn about the key components and materials used in their design.
Explore how solenoid valves control fluid flow.
Discover real-world applications across various industries.
Understand current market trends driving demand for advanced solutions.
Examine challenges faced by the industry and innovations addressing these issues.

By the end of this article, you will have a comprehensive understanding of solenoid valves and their significance in modern air and fluid control systems.

Understanding Different Types of Solenoid Valves

Solenoid valves come in various configurations, each designed to meet specific operational requirements. The two primary types are normally closed and normally open solenoid valves.

Normally Closed Solenoid Valve

In its default state, a normally closed solenoid valve remains shut, preventing fluid or gas flow. When an electrical current is applied, the valve opens, allowing flow.

Applications

This type is commonly used in systems where maintaining a closed state is crucial for safety or operational efficiency, such as fuel injection systems in automotive applications.

Normally Open Solenoid Valve

Conversely, a normally open solenoid valve stays open by default, allowing fluid or gas to pass through until an electrical signal causes it to close.

Applications

Ideal for applications requiring continuous flow that can be intermittently stopped, such as certain cooling systems.

Bi-Stable Solenoid Valves

Bi-stable solenoid valves retain their position after the control signal is removed.

Advantages

Energy-efficient since they only consume power during the switching process.

Applications

Useful in scenarios where a valve needs to stay in its last position without continual energy consumption, like in some robotic systems.

Direct Acting vs. Indirect Acting Solenoid Valves

Direct Acting Solenoid Valves

These valves operate directly by the electromagnetic force generated by the coil.

They offer quick response times due to direct actuation.
Suitable for low-flow and low-pressure systems where immediate action is required.

Indirect (Pilot Operated) Solenoid Valves

Utilize the line pressure to assist in opening and closing the valve. The solenoid controls a smaller pilot valve which then regulates the larger main valve.

Capable of controlling larger flows and higher pressures with minimal electrical input.
Commonly found in applications requiring large volume control like industrial water treatment facilities.

Understanding these different types and their functionalities helps you choose the right solenoid valve tailored for specific needs, ensuring efficient air and fluid control in various applications.

Key Components and Materials Used in Solenoid Valve Design

A solenoid valve is a precise assembly of various components working together to control fluid or air flow. Understanding these components helps you appreciate their roles and the importance of material selection for efficiency and reliability.

Essential Components

Solenoid Coil: The heart of an electric solenoid valve, the coil generates a magnetic field when energized, which actuates the plunger. Typically made from copper wire due to its excellent electrical conductivity.
Plunger: Also known as the armature, this movable element reacts to the magnetic field created by the solenoid coil. It opens or closes the valve orifice to control fluid flow. Materials like stainless steel are often used for their durability and corrosion resistance.
Valve Body/Housing: Encases the internal components, providing structural integrity. Commonly constructed from brass, stainless steel, or plastic depending on application requirements.
Orifice: The opening through which fluid passes, controlled by the movement of the plunger. Material choices may include brass or stainless steel to withstand different operating pressures and fluids.
Seals: Critical for preventing leaks and ensuring efficient operation. Made from materials like nitrile rubber (NBR), viton (FKM), or polytetrafluoroethylene (PTFE) based on compatibility with the fluids being controlled.

Importance of Material Selection

Longevity: Choosing suitable materials extends the life of your pneumatic valve by resisting wear and tear.
Reliability: Ensures consistent performance under varying operating conditions including temperature extremes, pressure fluctuations, and exposure to corrosive substances.
Compatibility: Different applications necessitate different materials; for instance, a 3 way solenoid valve in chemical processing might require higher resistance seals compared to those used in water treatment systems.

Using appropriate materials is vital not only for performance but also for safety, particularly in critical applications like automotive engine management systems or industrial automation setups.

How Solenoid Valves Control Fluid Flow: A Closer Look at Operating Principles

Solenoid valves are great at controlling fluid flow because they have precise circuit functions. These valves work mainly by turning electrical signals into mechanical movement, which allows them to effectively open and close fluid pathways or adjust flow rates.

Key Circuit Functions

1. Opening/Closing

When an electrical current passes through the solenoid coil, it creates a magnetic field that moves the plunger. This movement either opens or closes the valve, allowing or stopping the flow of fluids or gases. This on/off operation is crucial for applications that need quick and reliable switching, such as automated manufacturing processes and safety systems in various industries.

2. Modulating Flow Rates

In more advanced setups, solenoid valves can adjust flow rates instead of just switching between open and closed positions. By changing the strength or frequency of the electrical signal, you can finely control how much fluid goes through the valve. This ability is important for processes that require precise fluid management, like dosing in chemical processing or maintaining optimal pressure levels in hydraulic systems.

Electrical Signals and Their Impact

Electrical signals are essential for how solenoid valves work. Simple on/off signals can trigger basic actions like opening and closing, while variable signals enable modulation. This flexibility allows solenoid valves to adapt to various applications:

Automotive Systems: They manage critical functions like fuel injection by regulating fuel flow based on real-time engine conditions.
HVAC Systems: They control coolant flow to efficiently maintain desired temperatures.
Industrial Automation: They facilitate complex tasks involving liquid or gas distribution with high precision.

Understanding these operating principles shows why solenoid valves are crucial for efficient air and fluid control in many industries.

Exploring Real-World Applications of Solenoid Valves Across Industries

Industries Utilizing Solenoid Valves Extensively

Solenoid valves are vital components in various sectors due to their ability to control fluid and gas flow efficiently. Key industries leveraging these devices include:

1. Automotive

In automotive systems, solenoid valves manage air intake, exhaust, and transmission fluids. Examples include engine management systems and fuel injection mechanisms.

2. Aerospace

These valves regulate hydraulic and pneumatic systems crucial for flight control and landing gear operations.

3. Oil & Gas

Solenoids ensure precise control over high-pressure fluids in drilling operations and pipeline management.

4. Industrial Automation

Robotics and automated machinery rely on solenoids for accurate fluid control, enhancing productivity.

Case Study: Automotive Sector

Solenoid valves play a crucial role in modern vehicles’ performance and safety features. Their applications include:

Engine Management Systems: Engine management is critical for optimizing fuel efficiency and reducing emissions. Solenoid valves control the air-fuel mixture entering the combustion chamber, ensuring optimal performance.
Transmission Systems: Solenoid valves regulate hydraulic fluid in automatic transmissions, enabling smooth gear shifts.
Brake Operations: Modern braking systems use solenoid valves to modulate brake fluid pressure, enhancing safety by providing anti-lock braking capabilities.
Steering Assistance: Power steering systems leverage solenoid valves to manage hydraulic fluid flow, providing effortless steering control.

The integration of solenoid valves into these systems underscores their importance in achieving advanced vehicle functionalities. By enabling precise control over various fluids, they contribute significantly to vehicle performance, safety, and efficiency.

The specific examples provided within each industry showcase the versatility and essential nature of solenoid valves in real-world applications. This variety in usage illustrates how integral these components are across different sectors.

Current Market Trends Driving Demand for Advanced Solenoid Valve Solutions

The global solenoid valve market trends 2024 indicate a strong growth trajectory driven by several emerging technologies. Innovations like IoT integration capabilities are changing the way solenoid valves work, providing unprecedented levels of control and monitoring. This connectivity enables real-time diagnostics and predictive maintenance, improving system reliability and minimizing downtime.

Miniaturization techniques are another significant trend shaping future solenoid valve designs. These advancements make it possible to create compact yet highly efficient valves that are suitable for applications with limited space, such as in aerospace and microfluidic systems.

Key Trends Shaping the Solenoid Valve Market

IoT Integration: Enhances real-time monitoring and remote control
Miniaturization: Ideal for space-constrained applications
Energy Efficiency: New designs prioritize reduced power consumption

The combination of these trends is not only broadening the range of applications for solenoid valves but also increasing demand in various industries that are looking for improved performance and efficiency in their fluid control systems.

Challenges Faced by the Industry and Innovations Overcoming Them

Manufacturers of solenoid valves face several significant challenges in their industry. One major challenge is competition from alternative technologies such as pneumatic actuators or smart valves. These alternatives have their own advantages, like better energy efficiency and advanced control features, which can make them appealing choices for specific applications.

Another critical challenge is dealing with strict regulations that govern certain applications. Regulatory bodies often set high standards for solenoid valves used in industries such as healthcare, food processing, and chemical manufacturing. Meeting these standards requires continuous innovation and adaptation in design and materials.

High-Pressure Capabilities in Oil & Gas Sectors

In the oil and gas industry, solenoid valves need to work under extreme conditions, including high pressures and temperatures. Traditional solutions may not be sufficient in such demanding environments, leading to performance problems or even system failures. To address this issue, manufacturers are creating solenoid valves that can handle high pressure and are specifically designed to endure harsh operating conditions.

Innovations Paving the Way

Innovations play a crucial role in overcoming these challenges:

Material Advancements: Using advanced materials like stainless steel or specialized alloys improves the durability and resistance to corrosion of solenoid valves.
Smart Integration: Adding IoT capabilities enables predictive maintenance, reduces downtime, and enhances overall system reliability.
Miniaturization: Developing smaller yet more efficient solenoid valves caters to the increasing demand for compact solutions in industries such as automotive and aerospace.

By prioritizing these innovative approaches, manufacturers can not only meet current industry needs but also anticipate future requirements. This proactive mindset ensures that solenoid valves continue to be essential components in various sectors, despite the competitive and regulatory challenges they encounter.

Conclusion

Investing in reliable yet versatile solenoid valves is crucial for businesses aiming to optimize their processes. These devices play a pivotal role in minimizing risks associated with system failures.

Advanced designs with built-in safety features like manual overrides or redundant circuits offer significant advantages. They provide robust solutions that enhance system reliability and longevity.

Key benefits include:

Energy efficiency
Durability
Reduced maintenance costs

As automation technology advances, embracing innovative solenoid valve solutions will be essential for efficient air and fluid control systems.

Posted on August 9, 2024October 17, 2024 by Marketing

Boomless Sprayers: Preventing Damage with Proper Pressure Release

Reading Time: 5 minutes

Boomless sprayers are a popular choice for spraying in areas where using a traditional boom sprayer is impractical, such as along fence lines, ditches, power lines, and other obstacles. While boomless sprayers offer convenience and flexibility, it’s important to understand how to properly maintain and operate them to prevent damage. One key aspect is managing the pressure in the sprayer tank and system. Failing to release pressure after each use can lead to serious problems like blown pressure gauges, damaged pumps, and ruptured tanks.

Why Pressure Builds Up

Several factors can cause pressure to build up excessively in a boomless sprayer:

Clogged nozzles: If the spray nozzles become clogged and restrict flow, pressure will increase in the system as the pump continues to run.
Improper pressure relief valve: A malfunctioning or improperly adjusted pressure relief valve may fail to open and relieve pressure when it exceeds the set point.
Overfilling the tank: Filling the tank completely full reduces the air space at the top. As the fluid level rises from thermal expansion or foaming, it compresses this air space and increases pressure.
Temperature changes: Leaving a sprayer out in the sun can cause the fluid inside to heat up and expand, increasing pressure. Conversely, very cold temperatures may freeze and rupture components if pressure isn’t released.

The Importance of Boomless sprayers are a popular choice for spraying in areas where using a traditional boom sprayer is impractical, such as along fence lines, ditches, power lines, and other obstacles. While boomless sprayers offer convenience and flexibility, it’s important to understand how to properly maintain and operate them to prevent damage. One key aspect is managing the pressure in the sprayer tank and system. Failing to release pressure after each use can lead to serious problems like blown pressure gauges, damaged pumps, and ruptured tanks.

Why Pressure Builds Up

Several factors can cause pressure to build up excessively in a boomless sprayer:

Clogged nozzles: If the spray nozzles become clogged and restrict flow, pressure will increase in the system as the pump continues to run.
Improper pressure relief valve: A malfunctioning or improperly adjusted pressure relief valve may fail to open and relieve pressure when it exceeds the set point.
Overfilling the tank: Filling the tank completely full reduces the air space at the top. As the fluid level rises from thermal expansion or foaming, it compresses this air space and increases pressure.
Temperature changes: Leaving a sprayer out in the sun can cause the fluid inside to heat up and expand, increasing pressure. Conversely, very cold temperatures may freeze and rupture components if pressure isn’t released.

The Importance of Releasing Pressure

Relieving the pressure in your boomless sprayer after each use is critical to avoid damage and extend the life of the components. Here’s why:

Prevent blown gauges: The pressure gauge is often the weakest point in the system. Excessive pressure can blow out the gauge, requiring replacement. Releasing pressure extends gauge life.

Protect pump seals: Leaving the pump and plumbing under pressure for extended periods can damage the pump seals and diaphragms, causing leaks. Relieving pressure reduces strain on the seals.

Avoid tank rupture: While poly tanks are durable, they can rupture if left under high pressure too long, especially if there are any weak points. Releasing pressure prevents this costly damage.

Reduce stress on hoses and fittings: Hoses and fittings are designed to handle a certain pressure range. Subjecting them to excessive pressure unnecessarily shortens their lifespan.

How to Release Pressure Properly

The proper way to release pressure from your boomless sprayer depends on how it is configured. Here are some common methods:

Open the pressure relief valve: If equipped, open the pressure relief valve and allow it to vent until pressure drops to zero. Make sure the valve isn’t clogged and is functioning properly.
Disconnect the supply line: Carefully disconnect the supply line from the pump outlet and allow the pressure to dissipate. Wear gloves and eye protection in case of spray.
Open the tank lid: Slowly open the tank lid to vent pressure. Be careful as contents may spray out. Don’t remove the lid fully until pressure has dropped.
Trigger the spray gun: If your sprayer has a handgun, you can trigger it to relieve pressure in the hose. However, this won’t release all pressure in the tank and pump.

Consult your sprayer’s instruction manual for the manufacturer’s recommended method to release pressure safely.

Preventing Pressure Problems

In addition to releasing pressure after each use, there are other steps you can take to prevent pressure issues with your boomless sprayer:

Install a quality pressure relief valve: A good pressure relief valve will automatically open and vent fluid when the pressure exceeds a set point, protecting the system from overpressure. Make sure the valve is sized correctly for your sprayer’s flow rate and pressure range.

Use an inline pressure regulator: A pressure regulator will maintain constant pressure to the nozzles, even if the flow rate changes. This helps prevent pressure spikes and keeps spraying consistent.

Maintain the proper air space in the tank: Avoid filling the tank more than 95% full to maintain an air gap at the top. This allows for fluid expansion and reduces the risk of over pressurizing the tank.

Keep nozzles and filters clean: Regularly check and clean the spray nozzles and inline filters to make sure they aren’t clogged. Nozzle orifices can be cleaned with a soft brush, compressed air, or by soaking in cleaning solution.

Winterize and store properly: Before storing your sprayer for the winter, drain all fluid and release pressure. Flush the system with RV antifreeze to prevent freezing. Store out of direct sunlight to avoid heat damage.

Troubleshooting Low Pressure Problems

While high pressure can damage a boomless sprayer, low pressure is a more common problem that can hinder performance. If you’re experiencing low pressure (below 20 psi), here are some things to check:

Clogged intake filter: A clogged filter on the pump inlet will restrict flow and reduce pressure. Clean or replace the filter.
Air leak on inlet side: An air leak anywhere between the tank and pump inlet will cause the pump to suck air and lose prime, reducing flow and pressure. Tighten connections or replace damaged lines.
Worn pump: Diaphragm and roller pumps will wear over time, reducing their efficiency and pressure. Rebuild or replace the pump.
Undersized plumbing: Using hoses and fittings that are too small in diameter for the flow rate will restrict flow and limit pressure. Make sure plumbing is sized correctly.
Collapsed suction hose: A weak or kinked suction hose can collapse under vacuum and restrict flow to the pump. Use a reinforced suction hose sized for the pump inlet.

By understanding the causes of pressure problems and taking steps to prevent damage, you can keep your boomless sprayer running smoothly for years to come. Always release tank pressure after each use, install proper pressure control devices, and perform regular maintenance. Protecting your sprayer from pressure damage will save downtime and repair costs, letting you spray efficiently and effectively all season long.

Posted on August 8, 2024October 17, 2024 by Marketing

What are the key features of the motorized valves

Reading Time: 2 minutes

Based on the provided search results, here are the key features to consider when selecting motorized valves:

Precision Control and Automation

Motorized valves offer precise control over fluid flow compared to manual valves. They can be programmed to operate with a high degree of accuracy and consistency, making them ideal for applications requiring precise flow rates, pressure levels, and fluid ratios. The automation capabilities of motorized valves significantly reduce the need for human intervention, improving operational efficiency.

Durability and Reliability

Motorized valves are designed for durability, with simple designs and minimal moving parts that reduce wear and tear. They typically have a longer service life and require less maintenance compared to traditional valves. Materials like brass, bronze, and stainless steel offer better durability than plastic valves.

Safety Features

Motorized valves enhance safety by allowing remote operation in hazardous environments. Some valves include safety locks to prevent tampering and warning lights to alert operators of potential issues. In case of emergencies or power failures, motorized valves can automatically return to fail-safe positions to prevent accidents.

Versatility and Compatibility

Motorized valves are versatile and can be used across various industries, including HVAC, water treatment, chemical processing, oil and gas. They are compatible with different types of fluids and operating conditions. However, it’s important to ensure the valve fits with the existing piping system or if an adapter is required.

Pressure Rating and Flow Characteristics

The pressure rating indicates how much pressure the valve can handle without risk of failure. Different valves have different pressure ratings, typically measured in psi or kPa. The flow characteristics of the valve, such as flow coefficient (Cv), should match the system requirements for optimal performance.

Cost-Effectiveness

While the upfront cost of motorized valves may be higher than manual valves, they offer long-term cost savings through reduced maintenance, improved efficiency, and minimized product waste. The energy-efficient design of motorized valves also helps reduce operational costs over time.

When selecting a motorized valve, consider factors such as the system requirements (pressure, temperature, flow rate), ease of installation, maintenance requirements, and the reputation of the valve manufacturer. Choosing the right size and type of motorized valve is crucial for efficient and reliable operation of the system.

Posted on August 2, 2024July 31, 2024 by Marketing

Motorized Valves: Essential for Automated Fluid Management

Reading Time: 10 minutes

Introduction

Motorized valves are automated devices designed to control the flow of liquids or gases in various applications. Using an electric motor to open or close the valve, they provide precise control over fluid management.

Automated fluid management plays a crucial role in multiple industries, including HVAC, food processing, and chemical manufacturing. Efficient and accurate fluid control can lead to significant improvements in system performance and reliability.

Key Takeaway: Motorized valves are essential for efficient and precise control of fluid flow in various applications. They offer advantages such as:

Faster response times
Reduced energy consumption
Improved system reliability

What you’ll learn: This article will explore:

Different types of motorized valves, including 2-way and 3-way configurations
Their key specifications, features, and functionalities
Applications across various industries

Understanding Motorized Valves

Motorized valves, also known as actuated valves, are essential components of automated fluid management systems. They work by using an electric motor or actuator to control the opening and closing of the valve, allowing for precise regulation of fluid flow.

How Motorized Valves Work

The basic operation involves sending an electric signal to the actuator, which converts this signal into mechanical motion. This motion then adjusts the valve position to either permit or restrict fluid passage. The electric motor powers the movement, ensuring accurate and consistent control.

Components of Motorized Valves

Key components include:

Electric Motor: Provides the necessary force to open or close the valve.
Actuator: Converts electrical signals into mechanical actions.
Valve Body: The physical structure that houses the valve mechanism.
Control Unit: Manages input signals and coordinates motor actions.

Importance of Electric Motors and Actuators

Electric motors and actuators play crucial roles:

Electric Motors: Deliver power to move the valve with precision. They come in various types such as AC, DC, and stepper motors, each suited for different applications.
Electric Actuators: Serve as intermediaries between control systems and valves. They interpret control signals and execute movements accurately, often equipped with feedback mechanisms for real-time adjustments.

Understanding these elements provides a foundation for exploring different types of motorized valves and their applications across industries.

Types of Motorized Valves

1. 2-Way Motorized Valves

Design and Functionality of 2-Way Electric Ball Valves

2-way motorized valves, often referred to as 2-way motorized electric ball valves, are designed for straightforward on/off control of fluid flow. The valve consists of an electric motor that connects to an actuator, which in turn operates the ball mechanism inside the valve body. When the motor receives a control signal, it rotates the ball 90 degrees, either opening or closing the valve.

Key components include:

Electric Motor: Provides the necessary torque to rotate the ball.
Actuator: Converts electrical signals into mechanical movement.
Ball Mechanism: Controls fluid flow by rotating within the valve body.

These valves are typically made from durable materials like stainless steel or brass, making them suitable for various environments and applications.

Common Applications in HVAC and Industrial Systems

In HVAC systems, 2-way motorized valves are used extensively for controlling water flow in heating and cooling circuits. They ensure precise temperature regulation by quickly opening or closing in response to system demands.

Industrial applications include:

Process Automation: Used in chemical plants to manage fluid transfer between different stages of production.
Water Treatment Plants: Control water distribution and treatment processes efficiently.
Food and Beverage Industry: Manage flow of liquids like juices, milk, and other consumables with high precision.

Benefits of Using 2-Way Configurations

The use of 2-way motorized valves offers several advantages:

Faster Response Times: Quick actuation ensures immediate control over fluid dynamics.
Reduced Energy Consumption: Energy-efficient motors help lower operational costs.
Improved System Reliability: Automated control reduces the risk of human error and system failures.

These benefits make 2-way motorized electric ball valves a preferred choice for many automated fluid management systems, providing both efficiency and reliability.

2. 3-Way Motorized Valves

Understanding 3-Way Electric Ball Valves

3-way motorized electric ball valves are designed to offer greater flexibility in controlling fluid flow. Unlike standard 2-way valves that can only be fully open or closed, these valves have a unique T-shaped or L-shaped design that allows them to direct fluid through three different pathways. This means they can not only stop or allow flow but also redirect it as needed.

Applications of 3-Way Motorized Valves

The versatility of 3-way motorized valves makes them essential in various industries:

HVAC Systems: They help maintain optimal temperatures by mixing or diverting air or water flows.
Industrial Processes: These valves simplify operations like filling tanks, draining liquids, and distributing fluids selectively without requiring multiple valve setups.

Advantages Over Manual Valves

Motorized 3-way valves offer several benefits compared to traditional manual ones:

Precise Control: Automation ensures consistent and accurate management of fluid flow.
Increased Efficiency: Less manual work involved reduces the risk of errors caused by humans.
Reliable Performance: Electric actuators provide dependable operation even in tough conditions.

These improvements highlight why opting for a motorized 3-way valve can enhance the effectiveness and dependability of your fluid control systems.

Key Specifications for Motorized Valves

Understanding the specifications of motorized valves is crucial when selecting the right component for your application. Detailed knowledge of voltage and torque ranges, along with standardized mounting interfaces, ensures optimal performance and compatibility.

Common Voltage and Torque Ranges

Motorized valves typically operate within specific voltage ranges:

12V to 24V DC: Suitable for low-power applications.
110V to 240V AC: Common in industrial settings requiring higher power.

Torque ranges vary depending on the valve size and type:

1 Nm to 50 Nm: Used for smaller valves such as those in HVAC systems.
50 Nm to 500 Nm: Ideal for larger industrial applications that require higher torque.

Choosing the correct voltage and torque range is essential for efficient operation and longevity of the valve.

ISO 5211 Standard

The ISO 5211 standard specifies mounting interfaces for actuators on industrial valves. This standardization allows for:

Interchangeability: Actuators from different manufacturers can be used without modifications.
Ease of Installation: Simplifies the mounting process, reducing installation time.
Reliability: Ensures a secure fit, enhancing operational stability.

Adhering to ISO 5211 standards guarantees that your motorized valve system will be compatible with a wide range of actuators, providing flexibility and reliability in various applications.

Actuator Types

Actuators play a crucial role in the functioning of motorized valves. It’s important to understand the differences between quarter-turn and multi-turn actuators in order to choose the right one for your needs.

Quarter-Turn Actuators

Quarter-turn actuators are designed to rotate the valve stem 90 degrees. This type of actuator is typically used with ball, butterfly, and plug valves.

Key Features:**

Simple design
Fast operation
Ideal for on/off control applications

Common Applications:

HVAC systems
Water treatment plants
Chemical processing industries

Multi-Turn Actuators

Multi-turn actuators, on the other hand, are capable of rotating the valve stem multiple times. This allows for precise modulation and is suitable for gate, globe, and sluice valves.

Key Features:

Fine control over flow rates
More complex design
Suitable for throttling applications

Common Applications:

Oil and gas pipelines
Power generation facilities
Municipal water systems

Impact on Valve Performance

The choice between quarter-turn and multi-turn actuators directly impacts valve performance:

Speed: Quarter-turn actuators provide quicker response times.
Precision: Multi-turn actuators offer better control for modulating applications.
Installation: Quarter-turn actuators are generally easier to install.

Choosing the right actuator type ensures optimal performance, efficiency, and durability of the motorized valve in its specific application.

Features and Functionalities of Motorized Valves

Key features that enhance the functionality of motorized valves include:

Internal cams: These allow for precise control of valve position and movement, facilitating smooth operation.
Limit switches: These provide feedback on valve position, ensuring accurate and reliable control. They help prevent over-travel and potential damage by stopping the motor once the valve reaches its intended position.
Digital position sensors: These sensors offer high-resolution feedback on valve position, enabling precise adjustments and real-time monitoring.

The role of limit switches and sensors in precise control operations is paramount. Limit switches ensure that the valve operates within its designated range, preventing mechanical stress and enhancing longevity. Digital position sensors provide detailed data on the valve’s status, allowing for fine-tuned control and integration into automated systems.

Motorized valves equipped with these features deliver superior performance in various applications by ensuring accurate positioning, reducing maintenance needs, and enhancing overall system reliability. This level of precision is crucial in industries where exact fluid management is essential.

Operation Modes in Motorized Valves

Motorized valves can operate in two primary modes: normally closed (NC) and normally open (NO). Understanding these modes is crucial for selecting the appropriate valve for your fluid management system.

Normally Closed Operation

In a normally closed operation mode, the valve remains closed when there is no power supplied to it. When an electric signal is received, the valve opens, allowing fluid to pass through. This mode is ideal for applications where:

Safety: Preventing unwanted flow during power failures is critical.
Energy Efficiency: Reducing unnecessary energy consumption by only activating the valve when needed.

Normally Open Operation

Conversely, a normally open operation mode means that the valve stays open without power. It closes only when an electric signal is applied. Situational uses include:

Continuous Flow: Ensuring fluid flow even during power outages.
Fail-Safe Mechanisms: Maintaining operational processes in case of system failures.

Both modes offer unique advantages depending on the specific needs of your application. For instance, in HVAC systems, normally closed valves can prevent leaks when maintenance is required, while normally open valves ensure continuous heating or cooling during electrical downtimes.

Choosing between NC and NO operation modes hinges on the operational priorities of your fluid management system, whether it’s safety, energy efficiency, or fail-safe operation.

Applications of Motorized Valves

Electric motorized valves are widely used in various industries because they offer precise control and efficient operation. Here are some key sectors that benefit from these advanced control solutions:

HVAC (Heating, Ventilation, and Air Conditioning)

In HVAC systems, motorized valves play a critical role in controlling the flow of water, steam, and glycol mixtures. They ensure accurate temperature control and maintain system stability. Some examples include:

Chiller Systems: Automatically regulating the supply of chilled water.
Boiler Controls: Precisely managing steam for heating applications.

Food Processing

The food industry requires strict control over fluid handling to meet hygiene and safety standards. Motorized valves are essential in processes such as:

Beverage Production: Automatically controlling liquid ingredients.
Dairy Processing: Efficiently managing the pasteurization of milk.

Chemical Manufacturing

Chemical plants rely on motorized valves to handle aggressive fluids and ensure process safety. Key applications include:

Reactor Systems: Controlling the addition of reactants.
Waste Treatment: Efficiently managing wastewater streams.

Specific Use Cases

Motorized valves significantly improve operational efficiency in various industries:

HVAC Systems: Instant delivery of hot water in district heating.
Food Processing Plants: Reducing contamination risk through automated valve operations.
Chemical Plants: Enhancing safety by precisely controlling hazardous chemicals.

These examples demonstrate the versatility of motorized valves across different industries, providing reliable and efficient fluid management solutions.

Advantages Over Manual Valves

Automated valve control vs. manual valves presents a compelling case for those looking to enhance fluid management systems. The benefits of automation in this context can be summarized into two main categories: efficiency and safety.

Efficiency

Precision Control: Automated valves allow for more precise control over fluid flow, reducing the likelihood of errors associated with manual adjustments.
Speed: Motorized valves respond much faster than manual ones, ensuring timely interventions that can be crucial in industrial applications.
Energy Savings: By optimizing flow rates and minimizing wastage, automated systems contribute to significant energy savings.

Safety

Reduced Human Error: Automation eliminates the risk of human error, enhancing system reliability.
Remote Operation: Automated systems can be controlled remotely, reducing the need for personnel to operate in hazardous environments.
Consistent Performance: Unlike manual valves that may degrade over time due to inconsistent handling, motorized valves offer consistent performance, leading to fewer maintenance issues.

Case Studies Highlighting Successful Implementation

Chemical Manufacturing: A leading chemical plant implemented motorized ball valves to regulate the flow of reactive substances. The result was a 30% reduction in spillage incidents and a 20% increase in production efficiency.
HVAC Systems: In an advanced HVAC setup, motorized control valves were used to manage temperature and flow rates more accurately. This led to a 25% reduction in energy consumption and significantly improved occupant comfort levels.

These advantages illustrate why many industries are transitioning from manual to automated valve control systems.

Purchasing Options for Motorized Valves

When looking for motorized valves to purchase, there are several factors to consider in order to make the right decision. Here are some important things to keep in mind:

Cost

Initial Investment: Consider the upfront cost of the valve and actuator. Higher-quality valves may have a higher initial price but can offer long-term savings due to durability and lower maintenance needs.
Operational Costs: Evaluate the energy consumption of the motorized valve. Efficient models might have a higher purchase price but reduce operational costs over time.

Compatibility

System Integration: Ensure the motorized valve is compatible with your existing control systems. Check for compatibility with your PLCs, SCADA systems, or other control interfaces.
Material Suitability: Choose materials that are suitable for your specific application. For instance:

Stainless Steel: Ideal for food processing and corrosive environments.
Brass: Common in industrial applications due to its versatile properties.

Mounting Standards: Verify that the valve complies with standards like ISO 5211 for mounting interfaces, ensuring easy integration and replacement.

Vendor Support

Technical Support: Opt for vendors that offer comprehensive technical support, including installation assistance and troubleshooting.
Warranty and Return Policy: A solid warranty and return policy can save you from potential issues down the line.

Specific Features

Control Precision: Look for features such as limit switches and sensors that allow precise control operations.
Auto-Calibrations: Valves with auto-calibration capabilities can simplify setup and maintenance processes.

By considering these factors, you can find the most suitable motorized valve for your fluid management needs, ensuring efficiency, reliability, and cost-effectiveness in your operations.

Conclusion

Understanding how motorized valves work is essential for improving fluid management systems. Using motorized valves with automation brings many advantages:

Efficiency: Quicker response times and lower energy usage.
Precision: Exact control of fluid flow in different applications.
Reliability: More dependable systems and less manual involvement.

By incorporating motorized valves into your processes, you gain better performance and smoother operations, leading to success in various industries.

Table of Contents:

Understanding Control Valve Sizing Basics

Key Factors in Control Valve Sizing

Flow Rate

Pressure Drop

Fluid Properties

Understanding Flow Characteristics

Linear Flow Characteristic

Equal Percentage Flow Characteristic

Choosing the Right Valve Type

Steps to Size a Control Valve

Common Pitfalls in Control Valve Sizing

Oversizing

Undersizing

Ignoring Choked Flow and Cavitation

Advanced Considerations in Control Valve Sizing

Installed Characteristics

Noise and Vibration

Special Service Conditions

The Impact of Proper Control Valve Sizing

Energy Savings

Improved Process Control

Extended Equipment Life

Conclusion

Table of Contents:

Globe Valves: The All-Rounders

Ball Valves: Quick and Easy

Butterfly Valves: Compact and Efficient

Gate Valves: Full Flow Masters

Linear vs. Rotary Valves: A Key Distinction

Comparing Valve Motion Types

Diaphragm Valves: Clean and Leak-Proof

Plug Valves: Simple and Versatile

Solenoid Valves: Automated On-Off Control

Needle Valves: Precision Flow Control

Check Valves: One-Way Traffic Controllers

Conclusion

Table of Contents:

What Exactly is a Butterfly Control Valve?

The Core Components Working Together

The Disc: The Heart of the Valve

The Body: The Outer Shell

The Stem & Seals: The Connection and Containment

The Actuator: The Brains of the Operation

Types of Butterfly Valves: Which One is Right for You?

Concentric (Zero Offset) Valves

Double Eccentric (High Performance) Valves

Triple Eccentric Valves

Why Choose a Butterfly Control Valve for Your Farm or Business?

Common Applications in Agriculture and Industry

Installation and Maintenance Tips

Getting the Installation Right

Keeping It Running Smoothly

Conclusion

Solenoid Valves: The Unsung Heroes of Modern Farming

Enhancing Precision Agriculture with TIR’s Advanced Technology

Mastering Fluid Control with Solenoid Valves and Control Systems

Empowering Farmers and Manufacturers with Knowledge

Conclusion

Trend #1: The Sustainable Agriculture Imperative

Trend #2: The Rise of Smart Agriculture

Trend #3: Spraying Beyond Agriculture

The Texas Industrial Remcor Difference

The Future of Agriculture is Fluid

Introduction

Understanding Different Types of Solenoid Valves

Normally Closed Solenoid Valve

Applications

Normally Open Solenoid Valve

Applications

Bi-Stable Solenoid Valves

Advantages

Applications

Direct Acting vs. Indirect Acting Solenoid Valves

Indirect (Pilot Operated) Solenoid Valves

Key Components and Materials Used in Solenoid Valve Design

Essential Components

Importance of Material Selection

How Solenoid Valves Control Fluid Flow: A Closer Look at Operating Principles

Key Circuit Functions
