Essential Guide to Control Valve Types for Modern Farming

Reading Time: 8 minutes

Choosing the correct control valve types for your system is a critical decision that impacts efficiency and safety. These essential devices manage fluid flow in countless industrial processes, but they are not a one-size-fits-all solution. Understanding the fundamental differences between various valve types is the first step to optimizing your operations.

This guide examines the main categories of control valves you will find in industrial settings. We will explore their features, common applications, and performance trade-offs. This information will help you select the right valve for any application, from simple on/off service to precise flow modulation.

Table of Contents:

Globe Valves: The All-Rounders

Globe valves are one of the most popular control valve types due to their excellent throttling capabilities. Their design features a movable disk-like element, or valve plug, and a stationary ring seat in a generally spherical valve body. This internal structure is what makes globe control valves so effective.

The movement of the valve plug in relation to the seat allows for precise adjustments to the flow rate. As a type of linear control valve, the valve stem moves up and down in a straight line to open or close the valve. This design gives them the ability to regulate flow accurately across a wide range.

While valves globe valves provide superior control, their winding flow path creates a significant pressure drop across the valve. This makes them less ideal for applications where energy efficiency is the top priority. They are frequently used in steam systems, fuel oil lines, and processes requiring fine-tuned flow control.

Ball Valves: Quick and Easy

Ball valves are a type of rotary valve that uses a spherical disc, or ball, with a hole through the center to control flow. When the hole is aligned with the pipe, the valve is fully open, allowing for straight-through fluid flow. A 90-degree turn of the valve stem moves the solid part of the ball into the flow path, stopping the flow completely.

These quarter-turn valves are celebrated for their quick operation and tight, reliable shutoff. Because they are a rotary control valve, they can be actuated quickly with a simple lever or automated actuator. This makes them perfect for on-off applications where rapid response is necessary.

While standard valves ball valves are not typically used for precise throttling, some models feature V-port or characterized balls for better control. The simple rotating closure mechanism of ball valves ball makes them durable and suitable for handling slurries and other challenging fluids. The basic ball control valve consists of the body, ball, stem, and seats.

Butterfly Valves: Compact and Efficient

Butterfly valves are another common type of rotary control device. They manage fluid flow using a disc that rotates on a shaft mounted in the center of the pipe. Their compact, lightweight design makes them a cost-effective option, especially in larger pipe diameters.

Like ball valves, standard butterfly valves are quarter-turn valves that are well-suited for on-off service. They create a relatively low pressure drop when fully open. High-performance butterfly valves butterfly valves feature offset disc and shaft designs, improving shutoff and allowing them to handle high pressure and temperature applications.

You will often find valves butterfly in water treatment facilities, chemical services, and large-scale HVAC systems. While they are economical and efficient, concentric butterfly valves may not provide the bubble-tight shutoff seen in other valve designs. However, offset designs offer excellent sealing for more demanding services.

Gate Valves: Full Flow Masters

Gate valves utilize a flat or wedge-shaped gate that moves perpendicular to the flow path. When the valve is fully open, the gate is completely out of the flow stream. This design provides an unobstructed path for fluid, resulting in a very minimal pressure drop.

This makes gate valves ideal for applications where full, unrestricted flow is a primary requirement. They are almost exclusively used for on-off service. Using a gate valve for throttling is not recommended because the partial flow can cause vibration and rapid erosion of the gate and seats.

Common applications include large water lines, steam systems, and oil and gas pipelines where the valve will remain either fully open or fully closed for long periods. These multi-turn valves require multiple rotations of the handle to move the gate from the open to the closed position. The gradual opening valve process prevents fluid hammer effects.

Linear vs. Rotary Valves: A Key Distinction

Control valves can be broadly categorized by their motion: linear or rotary. This distinction describes how the closure element moves to control flow within the valve body. Understanding this difference is fundamental to valve selection.

Linear valves, such as globe and diaphragm valves, use a sliding valve stem that pushes or pulls the closure element into and out of the flow path. These multi-turn valves often require several full rotations of the handwheel to go from fully open to fully closed. This linear motion provides precise positioning, making them excellent for throttling and accurate flow regulation.

Rotary valves, on the other hand, use a rotating closure element to manage flow. Ball valves, butterfly valves, and plug valves fall into this category. Most are quarter-turn valves, requiring only a 90-degree turn to move from fully open to fully closed, offering fast actuation.

Comparing Valve Motion Types

To make the differences clearer, consider this breakdown:

  • Linear Motion Valves:
    • Examples: Globe, Gate, Diaphragm, Needle
    • Action: Sliding stem for push/pull motion.
    • Best For: Precise throttling and flow regulation (except gate valves).
    • Characteristics: Generally slower actuation, higher accuracy.
  • Rotary Motion Valves:
    • Examples: Ball, Butterfly, Plug
    • Action: Rotating disc or plug across the flow path.
    • Best For: On-off service, quick shutoff, and some throttling applications.
    • Characteristics: Fast actuation (often quarter-turn), compact design.

Diaphragm Valves: Clean and Leak-Proof

Diaphragm valves use a flexible, elastomeric diaphragm to control flow. The diaphragm is pressed down onto a weir or the bottom of the valve body to stop the flow. This design isolates the fluid from all other valve components, such as the stem and bonnet.

This isolation makes diaphragm valves a top choice for processing corrosive, abrasive, or sanitary fluids. Since there are no packing glands to maintain, the risk of external leakage is eliminated. This valve offers a clean and secure solution for sensitive applications.

You will find diaphragm valves extensively in the pharmaceutical, food and beverage, and chemical industries where product purity is paramount. Their main limitations are typically related to temperature and pressure, which are dictated by the diaphragm material. They provide excellent shutoff but may have a lower flow capacity compared to other valve types.

Plug Valves: Simple and Versatile

A plug valve is a rotary valve that uses a cylindrical or tapered plug with a hollow passageway. A quarter-turn rotation aligns the hollow part with the flow for an open position or turns the solid part to block the flow for a closed position. Their design is one of the simplest among all valve types.

Plug valves are known for their durability and effective shutoff capabilities in demanding services. They are excellent for handling fluids with suspended solids, slurries, and viscous media. Different port designs, such as rectangular or diamond ports, allow them to be used for on-off or throttling services.

These rugged valves are common in chemical processing, wastewater treatment, and the oil and gas industry. Some designs require lubrication to reduce friction and help seal the valve, while others feature special sleeves or linings that make them maintenance-free. Their simplicity and robust construction make them a reliable choice.

Solenoid Valves: Automated On-Off Control

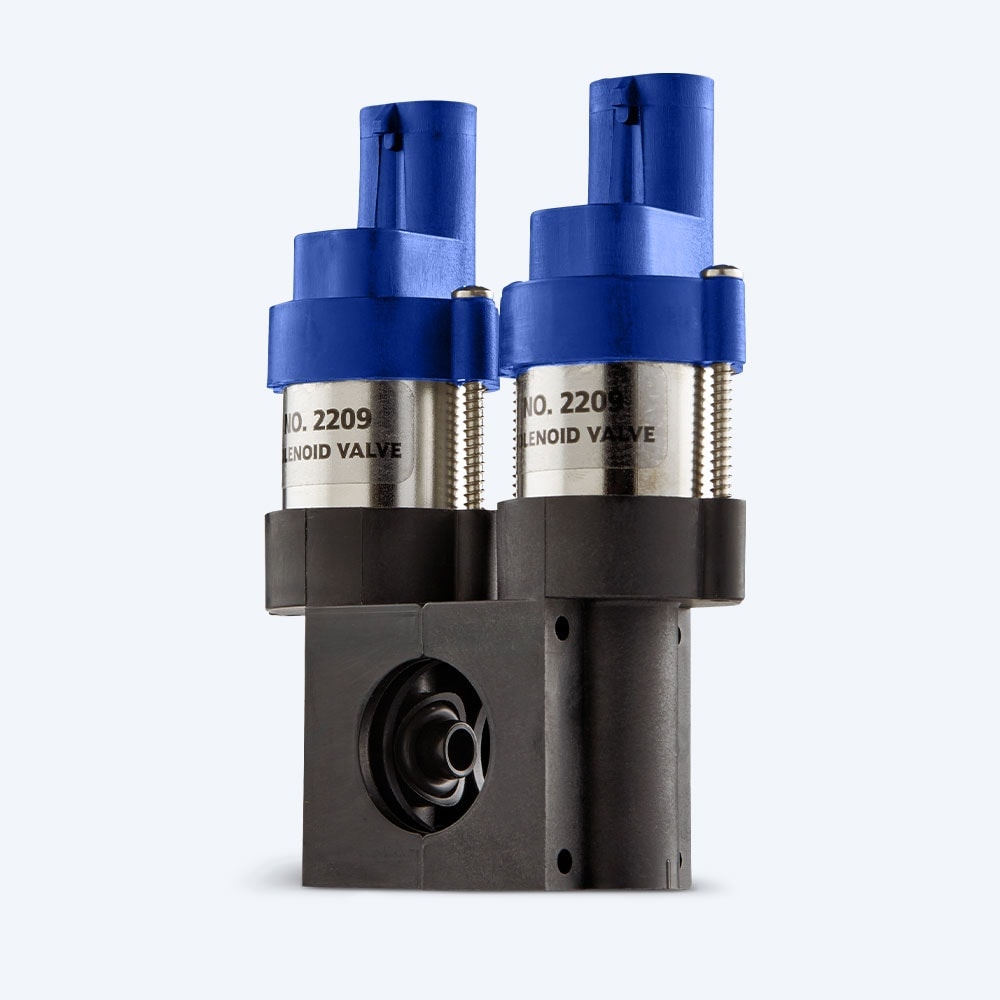

Solenoid valves are electromechanically operated valves used to automate flow control. A solenoid valve valve consists of a coil, plunger, and a valve body with one or more ports. When an electric current is sent to the coil, it creates a magnetic field that moves the plunger, which in turn opens or closes the valve.

These valves are primarily used for on-off service in air, gas, water, and oil systems. Their primary advantage is their fast response time and ability to be controlled remotely by an electrical signal. This makes them a key component in automated process control systems.

You will see valves solenoid valves in a wide range of applications include irrigation systems, car washes, and industrial machinery. They are not typically used for throttling flow, as their design is optimized for fully open or fully closed states. Their selection depends on the fluid, pressure, temperature, and electrical requirements of the system.

Needle Valves: Precision Flow Control

Needle valves are a type of globe control valve that offers extremely fine control over the flow rate. They use a long, tapered needle-like plunger that fits precisely into a seat. The fine-threaded valve stem allows for many rotations, enabling very small adjustments to the plunger’s position.

This design allows for highly accurate and repeatable flow settings, especially at low flow rates. This precision makes them essential for applications requiring meticulous flow metering. Valves needle valves are the go-to choice for instrumentation panels, sampling lines, and laboratory settings.

While valves needle excel at precision, their design inherently restricts flow, resulting in a significant pressure drop. They are not suitable for large-volume flow applications. For delicate tasks like controlling gas flow to an analyzer or managing liquid level in a sight glass, their performance is unmatched.

Check Valves: One-Way Traffic Controllers

Although not a flow control valve in the traditional sense, check valves are critical for process safety. Their sole purpose is to allow fluid flow in only one direction, automatically preventing backflow. They are passive devices that operate based on the differential pressure across the valve.

There are many designs, including swing check, lift check, and ball check valves, each suited for different conditions. When flow moves in the correct direction, the pressure opens the valve. If the flow reverses, the backpressure pushes the closure element against its seat, stopping the reverse flow.

Check valves are essential in pump and compressor discharge lines to protect equipment from damage caused by backflow. They are also used to prevent cross-contamination between fluid lines. While they do not regulate flow, their presence is fundamental to the proper operation of many fluid systems.

Conclusion

Selecting the appropriate control valve type is essential for the performance and safety of any industrial process. From the precise throttling of a globe valve to the quick shutoff of a ball valve, each valve type offers a specific set of advantages. Factors such as fluid properties, pressure, temperature, and required flow characteristics all influence the final choice.

By understanding the fundamental workings of these different control valves, you can make a more informed decision for your specific needs. The right valve ensures efficient operation, enhances safety, and minimizes maintenance. Whether you need to control flow, manage pressure, or simply start and stop a process, a suitable valve offers the solution.

Posted on by

Maximizing Efficiency with Butterfly Control Valve Upgrades

Reading Time: 10 minutes

You’ve probably seen them without even realizing it. They are in irrigation lines, on processing equipment, and a whole lot more. A butterfly control valve is one of the most common ways to manage fluid flow, offering a reliable way to regulate or stop it.

You’re not alone if you’ve scratched your head about this. Many people see these devices as simple open-and-close mechanisms. They are so much more than that, and knowing the difference can save you time, money, and big headaches.

You’ll learn what these essential control valves are, how they work, and where they shine. We will cover the valve parts that make them function and help you pick the right one. Let’s get into the specifics of these versatile components.

Table of Contents:

What Exactly is a Butterfly Control Valve?

Think of it like a damper in a chimney. When you open the damper, smoke goes up and out. A butterfly control valve works on a similar, simple principle but with much more precision for industrial and agricultural control applications.

Inside the valve, a metal disc is mounted on a rod. A quick quarter-turn of that rod moves the valve disc from fully open to fully closed, altering the flow direction and volume. This design is what makes it a quarter-turn valve, known for its rapid operation.

Its main job is to start, stop, or throttle the flow of fluids like water, chemicals, or even air. Unlike a simple on/off valve, a butterfly control valve can be positioned at any angle between fully open and fully closed to precisely control flow. This ability to regulate flow is what makes them critical in many systems.

The Core Components Working Together

Every butterfly valve has four key parts that work in harmony to control flow. You have the body, the disc, the stem, and the actuator. Understanding each piece helps you see the full picture of the valve’s operation.

The Disc: The Heart of the Valve

The disc is the gatekeeper of the valve and is often called the valve disc. It is the part that sits in the middle of the pipe and pivots to block or allow flow. This component is always in the flow path, even when fully open, which creates a small pressure drop.

The valve design of the disc can vary for different jobs. Some are simple flat plates for basic on-off service, while others are contoured to provide more precise control flow when throttling. An erosion resistant disc is crucial for applications involving abrasive media like slurry control.

The material of the disc is very important. It has to stand up to whatever is flowing through it. Common materials include stainless steel for corrosion resistance or ductile iron for general water service, sometimes with special coatings to enhance durability.

The Body: The Outer Shell

The valve body is the outer casing that holds everything together and connects directly to your pipes. The body design affects how you install the valve and its overall strength. This outer shell is a critical structural component.

There are a few main body styles. Wafer-style bodies are the most common; they feature a compact design and clamp between two pipe flanges. Lug-style bodies have threaded holes, so they can be bolted directly to one pipe flange, which is helpful for end-of-line service where you might need to disconnect one side for maintenance.

The body material can range from ductile iron with a protective epoxy powder coating to various grades of valve stainless steel for corrosive environments. The choice of body material depends entirely on the application and the media being handled. This variety makes butterfly control valves suitable for a broad range of industries.

The Stem & Seals: The Connection and Containment

The stem is the shaft that connects the disc to the actuator, transferring the rotational motion to open or close the valve. It must be strong enough to handle the torque required to move the disc against the flow and pressure. The way the stem connects to the disc can also vary, affecting the valve’s performance characteristics.

Equally important are the seals. These components prevent leaks from around the stem and between the disc and the body. Over time, friction and media exposure can lead to seal wear, so selecting the right material is vital for long-term reliability.

High-quality seals seals are essential for ensuring a tight shutoff and preventing fugitive emissions in chemical applications. Regular inspection for seal wear is a key part of valve maintenance. Proper sealing is fundamental to the valve’s function and safety.

The Actuator: The Brains of the Operation

The valve actuator is what turns the stem to open or close the valve. Your choice of actuator depends on how you plan to use the valve. It can range from a simple manual handle to a sophisticated automated system.

The simplest actuators are manual handles or gearboxes. A handle is great for small valves that you open and close quickly. A gearbox gives you more muscle for larger, high-pressure valves that need more torque to turn.

For automation, you have pneumatic, hydraulic, or an electric actuator. A pneumatic valve actuator uses compressed air and is very fast and reliable. An electric actuator uses a motor and is excellent for precise positioning and remote control, often found in advanced control applications.

Types of Butterfly Valves: Which One is Right for You?

Not all butterfly valves are created equal. They are usually grouped by the design of their disc and seat. This affects their performance, pressure rating, and the jobs they’re best suited for.

Here’s a quick breakdown of the main types of butterfly valves available. Knowing the difference will help you select the correct valve for your specific needs. Each type offers a different balance of performance, durability, and cost.

Valve TypeAlso Known AsCommon ApplicationsPressure Rating
ConcentricZero Offset / Resilient SeatedGeneral service, low pressure water, HVAC, drinking waterLow
Double EccentricHigh Performance / Double OffsetChemicals, oil and gas, throttling, water industryMedium to High
Triple EccentricTriple OffsetCritical service, high temperature, steam, severe serviceHigh to Severe

Concentric (Zero Offset) Valves

This is the most basic and common type of butterfly valve, often called a resilient seated valve. In a concentric design, the stem passes through the centerline of the disc. The disc seats against a soft, resilient seat, like rubber or EPDM, which lines the valve body.

Because the seat makes full contact with the disc, it creates a tight seal. This constant contact, however, also causes wear over time, limiting its lifespan in high-cycle applications. These are best for low-pressure applications where the valve isn’t opened and closed constantly.

You will often see these used in water distribution and food and beverage industries. They are inexpensive and get the job done for simple on-off tasks. This design is widely used across the water industry for its cost-effectiveness.

Double Eccentric (High Performance) Valves

Things get a little more clever with double eccentric or double offset valves. This design has two offsets. First, the stem is positioned behind the disc, not on its centerline.

Second, the stem is also moved slightly to one side of the pipe’s centerline. These two offsets create a cam action. The disc swings into the seat in the final few degrees of closing, significantly reducing friction and seal wear.

This high performance valve design lets them handle higher pressures and temperatures. It also gives them a much longer service life than concentric valves. They are a good fit for chemical processing or situations that require throttling.

Triple Eccentric Valves

This is the top-tier of butterfly valves, known as the triple offset valve. It adds a third offset, which is an angled contact axis for the seat and disc. This geometry completely eliminates any rubbing or friction between the seat and the disc during operation.

The disc only contacts the seat at the exact moment of full closure. This creates a bubble-tight, zero-leakage seal, even in harsh conditions. The seat is typically made of metal, allowing these valves to handle very high temperatures and abrasive materials.

You find triple eccentric valves in the toughest jobs. Think steam, oil and gas, and chemical plants where failure is not an option. According to research on valve selection criteria from industry leaders, these are often chosen for severe service and critical isolation tasks.

Why Choose a Butterfly Control Valve for Your Farm or Business?

So, with all the valve options out there, from ball valves to gate valves, why go with a butterfly? They have some clear advantages, especially in agriculture and for original equipment manufacturers. They are also cost effective for medium sized farms.

Here are some of the main benefits these valves offer:

  • Lightweight and compact design. They take up less space and are easier to install than a bulky gate valve or globe style valve.
  • Relatively inexpensive. Especially in larger pipe sizes, they often cost less than other valve types.
  • Fast-acting. That quarter-turn action means you can go from fully open to fully closed in seconds.
  • Good for large volumes. They offer very little restriction to flow when fully open.
  • Versatility in control applications. They can be used for on/off, throttling, and isolation duties across a broad range of services.

But they aren’t perfect for every situation. The disc is always in the flow, so it does create a slight pressure drop. Also, in high-velocity liquid applications, they can be prone to cavitation, which can damage the disc and body over time.

Common Applications in Agriculture and Industry

The versatility of butterfly control valves is what makes them so popular. On the farm, they are a staple in irrigation systems. They let you easily control water flow to different fields or zones.

They are also used in equipment for spreading fertilizers or chemicals. Their quick shutoff helps prevent spills and gives precise control over application rates. Many equipment manufacturers build them right into their sprayers and spreaders as part of their featured products.

Beyond the farm, their uses are nearly endless. You’ll see them in municipal water treatment plants, power generation facilities, and HVAC systems. Anywhere you need to control a large volume of fluid efficiently, a butterfly valve is likely a good choice, especially for the broader water industry and systems handling drinking water.

Some applications requiring tight control may also use them in conjunction with other types, such as check valves to prevent backflow or pressure relief valves for safety. You may even see specialized air release / vacuum valves installed in pipelines to protect them from pressure fluctuations. Their widespread use means agricultural suppliers and industrial distributors often have a broad range in stock, making it easy to find valve parts or complete retrofit solutions.

Installation and Maintenance Tips

Getting the most out of your butterfly valve starts with a good installation. And a little routine maintenance goes a long way to keep it working for years. It is not difficult, but you have to do it right.

Getting the Installation Right

A poor installation is the number one reason these valves fail early. Make sure the pipes on either side are aligned correctly. Any misalignment puts stress on the valve body and can cause the seal to fail prematurely.

Before you tighten the bolts, cycle the valve from open to closed a few times. This makes sure the disc isn’t hitting the inside of the adjacent pipe. This is a very common and costly mistake that can damage the valve before it even begins service.

  1. Always make sure your pipes are clean before starting.
  2. Place the valve between the flanges with the disc slightly open.
  3. Tighten the bolts in a star pattern to apply even pressure on the flanges.
  4. Once installed, cycle it one more time to check for smooth operation.

Keeping It Running Smoothly

Maintenance for butterfly valves is fairly simple. The best thing you can do is cycle the valve regularly. If a valve sits in one position for months, the resilient seated models can get stuck to the disc.

Regularly check for any leaks around the stem. If you see weeping, you may need to tighten the packing or replace the seals. Catching small leaks early prevents bigger problems later and improves overall system safety.

Finally, if you have an actuated valve, check the actuator. Make sure it’s getting the correct air pressure or voltage and that all connections are secure. A failing actuator can make you think the valve itself is the problem, so troubleshooting should always include the control system.

Conclusion

The humble butterfly control valve is a real workhorse in countless industries. From the irrigation lines on a small farm to complex chemical plants, it provides reliable flow control. It is simple, effective, and economical for a wide array of applications.

Choosing the right one comes down to your specific needs. Think about pressure, temperature, and what’s flowing through the pipe. You can consult technical resources or a manufacturer’s knowledge center for detailed specifications.

With the right selection and proper care, a butterfly control valve can be a component you install and simply forget about for a long, long time. It provides a dependable solution for managing fluid systems effectively. This ensures operational efficiency and reliability in your processes.

Posted on by

Understanding Your Solenoid Valve Diagram: A Guide

Reading Time: 8 minutes

Have you ever stared at a schematic and felt completely lost? It’s like looking at a foreign language. That paper filled with lines, symbols, and arrows is supposed to help, but it often just adds to the confusion.

When a piece of equipment goes down, you just want to get it working again, but a confusing solenoid valve diagram can stop you in your tracks. It feels like you need an engineering degree just to figure out what’s wrong. This is frustrating when you have crops to water or a machine to get back online.

You’re not alone in feeling this way. Many people find these diagrams intimidating, but they are simpler than they look. Understanding a solenoid valve diagram is the first step to fixing the problem yourself.

Table of Contents:

First, What Exactly Is a Solenoid Valve?

Let’s quickly cover the basics before we get into the diagrams. A solenoid valve is an electromechanical device used to control the flow of liquids or gases. Think of it as an automatic gate that manages the fluid flow within a system.

The valve operation is straightforward. It uses an electric current sent through a solenoid coil to create a magnetic field, which then moves a plunger or armature. This movement opens or closes the valve, either allowing or stopping the flow of the substance passing through the valve body.

You can find these control valve devices everywhere, from a farm’s irrigation system to complex industrial machinery. Solenoid valves are popular because they are reliable and can be controlled remotely. This makes them perfect for automated systems and a wide array of valve types are available for different needs.

Why You Need to Understand These Diagrams

You might think you can get by without looking at the schematic symbols. Perhaps you can for a simple component swap. But what happens when the system gets more complicated or a simple swap does not fix the issue?

Knowing how to read a solenoid valve diagram saves you valuable time and money. It is the roadmap to your system’s process flow. It tells you exactly how the valve should function, where the connections for the air supply go, and what to expect from the air flow when it’s working properly.

With this knowledge, maintenance personnel can troubleshoot issues quickly and accurately. Is the valve stuck open? Is the closed solenoid not receiving power? The valve diagram holds the clues you need to solve the puzzle without resorting to guesswork.

Breaking Down a Solenoid Valve Diagram

At its heart, a valve diagram is just a collection of symbols. Once you learn what each of the common symbols means, the whole picture starts to make sense. We’ll go through the most important parts you’ll see on almost any diagram for valves solenoid valve models.

The Squares: Valve Positions

The foundational elements of any valve symbol are the squares. Each square corresponds to one of the valve positions. A valve with two squares can be in two different positions, while a valve with three squares has a third, often a neutral or center position.

Generally, the right-hand square on the diagram shows the valve’s normal state, also known as the rest position or non-actuated position. This is how the valve behaves when no external force or signal is applied. The left-hand square shows what happens when the valve is actuated.

The Arrows and Lines: Flow Paths

Inside each square, you will see lines and arrows that illustrate the flow paths for that specific valve position. A straight arrow indicates the flow direction from one port to another. Understanding these flow directions is crucial for tracing the path of the compressed air or fluid.

A “T” symbol inside a square indicates a blocked or closed port, meaning no fluid can pass through that connection in that position. If a square has multiple flow path indicators, it shows how the valve connects different ports simultaneously. Reading pneumatic symbols for flow is a fundamental skill.

The Actuators: How the Valve is Controlled

Symbols drawn on the outside of the squares represent the valve actuator, which is the mechanism that shifts the valve from one position to another. The actuator on the side of the right-hand square is what holds it in its rest position. The actuator on the left side is what shifts it to the actuated position.

Common actuation methods include:

  • Solenoid (Electrical): This is represented by a rectangle with a diagonal line through it. This symbol signifies the solenoid coil. An arrow pointing away from the box may indicate a pilot solenoid operation, which uses air pressure to assist.
  • Spring Return: A zigzag line pushing against the square symbolizes a spring. When the actuation force is removed, the spring return pushes the valve back to its initial position. The return symbol is key to understanding valve work.
  • Manual Actuation: Symbols like a push button or lever indicate manual overrides. These are useful for testing or emergency valve control.
  • Pilot Control (Pneumatic): A hollow or solid triangle pointing at the square indicates pneumatic control. An external pilot signal uses an external air source, whereas an internal pilot uses the system’s own pressure. The diagrams fluid power systems rely on will differentiate these.

For some complex solenoid valves, you may see combinations, such as a solenoid pilot actuator on one side and a spring solenoid on the other. Sometimes you may see a solenoid solenoid configuration, meaning it’s electrically actuated in both directions.

The Ports: Inlet, Outlet, and Exhaust

The connections where pipes or tubes attach to the valve are called ports. On a diagram, lines are drawn from the right-hand square (the normal position) to indicate the port connections. They are typically numbered or lettered according to standards.

  • Port 1 (or P): This is the main pressure inlet where the air supply connects.
  • Ports 2 and 4 (or A and B): These are the working or outlet ports that connect to the device being controlled, like a cylinder.
  • Ports 3 and 5 (or R and S): These are exhaust ports that allow air to escape from the device and the valve. Properly functioning exhaust ports are vital.

Different Valve Types Mean Different Diagrams

Not all solenoid valves are the same. Their design and schematic symbols change based on their job. This means their valve diagram will look a little different, too.

Normally Closed (NC) vs. Normally Open (NO)

This is one of the most important distinctions, describing the valve’s state when no power is applied. A normally closed (NC) valve stays shut until it receives an electric signal. Its diagram shows the flow path blocked in the non-actuated position.

A normally open (NO) valve does the opposite, allowing flow until you send power to close it. Its diagram shows a clear flow path in its resting state. The schematic makes it very clear which type of valves solenoid you are working with.

Direct-Acting vs. Pilot-Operated

The difference here is how the valve opens the main orifice. A direct-acting valve uses the solenoid’s power directly to move the plunger and open the valve open. These are simpler but may require more power for a higher flow rate.

A pilot-operated valve is more complex, as seen in resources explaining solenoid valves. It uses line pressure to help open the main valve. This design allows small solenoid valves solenoid valve systems to control very large flow rates, making it an efficient choice for many applications.

Positions and Ports: Naming Convention

A key way to classify a pneumatic solenoid valve is by its positions and ports. This is often written as a fraction, like 3/2 or 5/2. The first number is the number of ports, and the second is the number of positions.

Valve TypeDescriptionCommon Use
2/2 Valve2 Ports, 2 PositionsA simple on/off flow control valve, like a tap.
3/2 Valve3 Ports, 2 PositionsControlling a single-acting cylinder or diverting flow.
5/2 Valve5 Ports, 2 PositionsControlling a double acting cylinder (acting double). This is one of the most common valve functions.
5/3 Valve5 Ports, 3 PositionsControlling a double-acting cylinder with a third middle position (e.g., all ports blocked, center exhaust).

Other configurations exist, such as 4-way valves used in hydraulic systems. Specialized proportional valves can also vary the amount of flow, and their graphic symbols often include extra horizontal lines to show this capability.

Let’s Walk Through a Simple Diagram

Theory is good, but let’s apply it. Imagine a diagram for a 3/2 NC solenoid valve with spring return in front of you. This is a common pneumatic solenoid.

  1. Identify the Basics: You see two squares, indicating two positions. It has symbols for three ports connected to the right-hand square. On the left is the solenoid symbol, and on the right is the spring return symbol.
  2. Analyze the Rest Position: Look at the right-hand square, which is the non-actuated position due to the spring. The flow path shows Port 1 (pressure) is blocked by a “T” symbol. The flow arrow shows Port 2 (outlet) is connected to Port 3 (exhaust), allowing any air in the connected device to escape.
  3. Analyze the Actuated Position: Now, imagine the solenoid is energized. This shifts the valve to the state shown in the left-hand square. Here, the left-hand square corresponds to the active state where the flow path now shows Port 1 connected to Port 2, sending compressed air to the device. Port 3 is now blocked.
  4. Understand the Return Control: When the electrical signal is removed from the solenoid coil, the spring pushes the valve back. The control return to the state shown in the right-hand square is automatic.

By following these steps, you’ve just read a schematic for one of the most common solenoid valves solenoid systems. You understand its valve operation completely.

Common Mistakes When Reading a Diagram

Even with the basics down, it’s easy to make a few common mistakes. One big error is mixing up normally open and normally closed valves. Always double-check the diagram’s de-energized state, shown in the right square.

Another issue is ignoring voltage requirements for the solenoid. Hooking a 12V DC solenoid up to a 120V AC source will burn it out instantly. Also, people sometimes misinterpret flow direction arrows, which can cause malfunctions, especially if a check valve is integrated into the system.

Finally, don’t confuse the symbols. A pilot control symbol is very different from manual actuation. Mistaking the return symbol for a different type of actuator can lead to incorrect troubleshooting.

Conclusion

A solenoid valve diagram doesn’t have to be a source of frustration. At first glance, it might look like a jumble of random pneumatic symbols. But as you’ve learned, each line, square, and shape has a specific and logical meaning.

It tells a detailed story about how the valve works and how it fits into your larger system. By taking time to understand the basic components like actuators and ports, as well as the different valve types and their naming conventions, you equip yourself with powerful knowledge.

You can move from being confused to being confident in your ability to diagnose and repair your systems. The next time you face a problem, you can pull out the solenoid valve diagram and use it as the valuable tool it is, deciphering the flow paths and valve functions with ease. All rights reserved for improving your skills.

Posted on by

Built in Texas, Delivered at the Speed You Need

Reading Time: 3 minutes

Why OEMs and Distributors Choose Texas Industrial Remcor

When production lines stall or a sprayer system goes down, every hour off-line gnaws at your bottom line. That’s why engineers, purchasing managers, and aftermarket distributors across North America and globally keep Texas Industrial Remcor (TIR) on speed dial. For more than five decades, our family-owned factory in Little River-Academy, Texas has combined small-town craftsmanship with lean, high-velocity manufacturing to deliver premium solenoid valves, pressure regulators, and turnkey control systems—without the overseas headaches.

Zero Tariffs, Zero Compromise

Because every TIR component is machined, wound, molded, and tested right here in the Lone Star State, you’ll never be blindsided by shifting import duties, port delays, or surprise brokerage fees. Zero tariffs translate directly into lower landed costs and cleaner P&Ls, while our ISO-calibrated QA program guarantees the precision you expect from top-shelf American engineering.

Same-Day or Next-Day Shipping—Every Order, Every Time

We stock our most requested SKUs in depth and operate two automated pick-and-pack lines. Place your order by 3 p.m. CT and it leaves our dock the same day; miss the cut-off by a hair and it still ships first thing the next morning. Whether you need a single ¾” poly solenoid valve for a field repair or a pallet of pressure regulators for a new OEM build, your parts will arrive fast, no excuses.

The Texas Advantage: Quality + Affordability

Labor rates may be lower overseas, but total cost of ownership tells a different story. TIR valves log tens of thousands of actuations without coil burnout; our regulators maintain rock-steady pressures season after season; and our control panels integrate seamlessly with modern CAN bus and ISOBUS architectures. Fewer replacements, less downtime, and zero tariff exposure mean our “Made in Texas” tag actually drives costs down over the life of your equipment.

Engineered for Your World

  • Agriculture: Corrosion-resistant brass, stainless, and nylon bodies stand up to aggressive crop-spray chemistries.
  • Industrial: High-flow, high-cycle valves tackle abrasive slurries, coolants, and compressed air with equal ease.
  • Municipal & Turf: Low-amp draw coils pair perfectly with battery-powered control boards for remote green-space management.

Need a custom manifold or a unique voltage? Our in-house R&D team can prototype, 3-D print, and CNC-machine pilot runs in days, not months—keeping your project on schedule and under budget.

Ready to Level Up Your Fluid Control?

Call us at (254) 982-4236, email [email protected], or explore the full line at sprayervalves.com. Experience the reliability of American-made components, the agility of same-day shipping, and the confidence that comes from partnering with a company as tough and dependable as Texas itself.

When downtime isn’t an option, count on Texas Industrial Remcor—where quality meets speed, and every valve ships with a handshake’s worth of Texas pride.

Posted on by

What condition can affect a solenoid?

Detailed diagram of a solenoid valve system showing components, electrical connections, and flow pathways for industrial use.
Reading Time: 6 minutes

Understanding Solenoid Valves

Before diving into what triggers a solenoid valve, it’s essential to grasp the basics and the different types of solenoid valves. This knowledge will help you make more informed decisions when considering their use in agricultural applications, particularly for crop spraying.

Solenoid Valve Basics

A solenoid valve is an electromechanical device used to control the flow of liquids or gases. It consists of a solenoid (a coil of wire that creates a magnetic field when an electric current passes through it) and a valve mechanism. When energized, the solenoid moves the valve to open or close the flow passage. Solenoid valves are widely used in various industries, including agriculture, to regulate the flow of water, chemicals, and other fluids.

Key Components:

  • Solenoid Coil: Generates a magnetic field when electric current flows through it.
  • Plunger: Moves within the coil, opening or closing the valve.
  • Spring: Helps return the plunger to its original position when de-energized.

Types of Solenoid Valves

Solenoid valves come in various designs, each tailored for specific applications. Understanding the types can help you select the best option for your crop spraying needs.

Two-Port Solenoid Valves

These valves have two ports—an inlet and an outlet—and are designed to regulate the flow of a single fluid. They are straightforward and commonly used in on/off applications.

Valve TypeDescription
Normally Open (N.O.)Allows flow when de-energized; stops flow when energized.
Normally Closed (N.C.)Stops flow when de-energized; allows flow when energized.

Three-Port Solenoid Valves

Three-port solenoid valves can direct flow between different pathways. These are ideal for more complex systems requiring multiple flow configurations.

Manifold Assemblies

Multiple solenoid valves can be mounted on a manifold, allowing for centralized control of several fluid pathways. This setup is especially useful in agricultural equipment where multiple spraying lines need to be controlled.

Port ConfigurationFunction
Three-PortSwitches flow between two outlet ports.
Four-PortCommon in pneumatic applications for controlling double-acting cylinders.

When exploring solenoid valves for crop spraying, consider the specific requirements of your application. For example, a direct-acting solenoid valve might be more suitable for controlling smaller fluid passages, while a pilot-operated valve could be better for larger systems.

By understanding these basics and types, you’ll be better equipped to choose the right solenoid valve for your agricultural needs. For more information on solenoid valves and their uses, check out our in-depth articles on solenoid valves.

Functionality of Solenoid Valves

Understanding the functionality of solenoid valves is crucial for optimizing their use in crop spraying. This section explores the differences between direct-acting and pilot-operated valves, as well as their power consumption and supply requirements.

Direct-Acting vs. Pilot-Operated Valves

Direct-acting solenoid valves convert electrical energy into mechanical energy. This action physically moves a barrier to either obstruct flow (normally open, N.O.) or allow flow (normally closed, N.C.). A spring often returns the valve to its resting position once power is shut off. These valves operate quickly, typically within 5 to 10 milliseconds.

Valve TypeOperation Time (ms)
Direct-Acting5 – 10
Pilot-Operated15 – 150

Pilot-operated solenoid valves, on the other hand, use the pressurized fluid itself to apply the forces required to actuate the valve. The solenoid acts as a “pilot,” directing the fluid. These valves are ideal for applications requiring large pressures and volumes, such as irrigation systems (Wikipedia).

Power Consumption and Supply Requirements

The power consumption and supply requirements of a solenoid valve are determined by factors such as fluid pressure and orifice diameter. For instance, a 3⁄4-inch 150 psi sprinkler valve designed for residential systems has a momentary inrush of 7.2 VA and a holding power requirement of 4.6 VA.

Valve SpecificationPower Consumption (VA)
Inrush7.2
Holding4.6

Proper installation is critical to avoid malfunctions. Solenoid valves should not be operated under vibrations exceeding 50 m/s², as it may cause malfunction. For more details on installation and maintenance, visit our section on installation tips for solenoid valves.

By understanding the functionality of direct-acting and pilot-operated valves, as well as their power requirements, you can make informed decisions that enhance the efficiency of your crop spraying operations. For more information on what triggers a solenoid valve, visit our detailed guide on what triggers a solenoid valve.

Applications of Solenoid Valves

Solenoid valves are versatile components used in various industries to control the flow of liquids and gases. Understanding their applications can significantly enhance your farm equipment’s efficiency and reliability.

Industrial and Automotive Use

In industrial settings, solenoid valves play a crucial role in controlling machines, dosing, mixing, or restricting the flow of liquids or gases. For example, in beverage factories, solenoid valves measure the exact amount of drink to be poured into bottles (Starter Solenoid). These valves ensure precision and consistency in production lines.

In the automotive industry, solenoid valves regulate the flow of automotive fluids such as oil, anti-skid brake fluid, or fuel. Variable solenoid valves are often utilized to control the medium instead of shutting it off completely, providing better control and efficiency. This makes them essential components in modern vehicles.

ApplicationFunction
Beverage FactoriesMeasure drink amounts
Automotive SystemsRegulate fluid flow
Car Wash SystemsMix water with detergents

For more insights on how solenoid valves function, visit our article on what triggers a solenoid valve.

Agricultural Equipment Integration

In agriculture, solenoid valves are integral to various systems, including irrigation devices and motorized farm machines. These valves control the flow of water in automatic sprinklers, ensuring efficient and precise irrigation. This helps in conserving water and optimizing crop growth.

Solenoid valves are also found in motorized farm equipment used for dosing substances such as fertilizers and pesticides. By controlling the dosage accurately, these valves help in achieving uniform application, thereby improving crop yield and reducing waste.

ApplicationFunction
Irrigation SystemsControl water flow
Farm MachinesDose fertilizers and pesticides

For more tips on maintaining and using solenoid valves in your equipment, check out our section on maintenance and best practices.

By understanding the applications of solenoid valves in industrial, automotive, and agricultural settings, you can make informed decisions about integrating these components into your farming operations. This knowledge will help you improve efficiency and ensure the longevity of your equipment.

Maintenance and Best Practices

Proper maintenance and best practices are essential for ensuring your solenoid valves operate efficiently and avoid malfunctions. Below are some valuable tips for installation and maintenance.

Installation Tips for Solenoid Valves

To ensure your solenoid valves work effectively, follow these installation tips:

  1. Positioning: Install the solenoid valve so that the vibration direction is perpendicular to the spool valve. This is important when operating under a vibration of 50m/s² or less.
  2. Vibration: Avoid operating solenoid valves under vibrations exceeding 50m/s² to prevent malfunctions (PISCO).
  3. Surge Protection: Equip the model of 24 VDC solenoid valve with a surge absorber to protect against electrical surges. Note that surges are not completely absorbed, so consider additional measures if there is a risk of malfunction due to surges (PISCO).
  4. Leakage Current: Ensure that the leakage current is less than 1mA when activating the solenoid valve. Higher leakage currents can cause the valve to malfunction (PISCO).
  5. Pressure: Solenoid valves should not be used for high volume air blowing. The internally piloted design may cause malfunctions due to a drop in internal pressure.

Avoiding Malfunctions and Ensuring Efficiency

To avoid malfunctions and ensure your solenoid valves operate efficiently, consider the following best practices:

  1. Regular Inspection: Conduct routine inspections to check for any wear and tear, leaks, or blockages. Regular maintenance helps in identifying potential issues before they become major problems.
  2. Proper Cleaning: Keep the valves clean and free from debris. Contaminants can cause blockages and affect the performance of the valves.
  3. Temperature Control: Ensure that the operating environment is within the recommended temperature range for your specific solenoid valve model. Extreme temperatures can affect the material integrity and functioning of the valve.
  4. Correct Voltage: Use the correct voltage as specified for your solenoid valve. Incorrect voltage can lead to inefficient operation and potential damage.
  5. Lubrication: Apply appropriate lubricants to the movable parts of the valve. This helps in reducing friction and wear, thereby extending the lifespan of the valve.

By following these installation tips and best practices, you can maintain the efficiency of your solenoid valves and avoid common malfunctions. For more information on what triggers a solenoid valve, make sure to check out our detailed guide. Additionally, explore our section on solenoid valves for a comprehensive understanding of their applications and functions.

Posted on by

How TIR is Helping Farmers Adapt to a Transforming Ag Industry

Reading Time: 5 minutes

The world of agriculture is undergoing a period of unprecedented change. From the urgent need to feed a growing global population with dwindling arable land to the rapid rise of smart farming technologies, today’s farmers face both immense challenges and exciting opportunities. As a leading provider of high-performance solenoid valves and sprayer control systems for over 25 years, Texas Industrial Remcor is proud to play a vital role in helping the agriculture industry navigate this transformation.

In this blog post, we’ll explore three key trends reshaping agriculture in 2024 and discuss how Texas Industrial Remcor’s advanced fluid control solutions are enabling farmers to thrive in this dynamic landscape.

Trend #1: The Sustainable Agriculture Imperative

Perhaps the most pressing issue facing modern agriculture is the need to drastically increase food production while simultaneously reducing the environmental footprint of farming. The United Nations projects that global food demand will surge 70% by 2050 as the world population balloons to nearly 10 billion. Yet the amount of arable land per capita is expected to plunge by over 30% in the same timeframe due to urbanization, desertification, and other factors.

This widening gap between food demand and land capacity is forcing farmers to seek out new ways to maximize crop yields and resource efficiency. One of the most promising solutions is precision agriculture – the use of advanced technologies to optimize inputs like water, fertilizers, and pesticides on a granular level.

At the heart of many precision agriculture systems are high-performance solenoid valves that enable ultra-precise control over spraying and irrigation. Texas Industrial Remcor offers one of the industry’s most extensive selections of U.S.-made solenoid valves, with options available for virtually any fluid, pressure, and flow rate. Our valves deliver unmatched accuracy and consistency, allowing farmers to apply just the right amount of inputs for optimal crop health while minimizing waste and runoff.

For example, our top-selling 5000 Series 3-Way Direct Acting Solenoid Valves are ideal for precision spraying in demanding agricultural environments. With a durable 304 stainless steel body, large 10mm orifice for high flow rates, and available NPT or push-to-connect fittings, these valves provide reliable performance season after season. By incorporating our solenoid valves into precision spraying equipment, farmers can dramatically reduce their environmental impact and input costs while boosting yields.

Trend #2: The Rise of Smart Agriculture

Another key trend transforming the agriculture industry is the rapid adoption of digital technologies and data-driven decision-making tools. The global smart agriculture market is expected to soar from $15 billion in 2020 to over $33 billion by 2027, representing a blistering 12% CAGR. From IoT-connected sensors and drones to AI-powered crop monitoring platforms, cutting-edge technologies are becoming mainstream on farms worldwide.

These smart agriculture solutions generate vast amounts of real-time data on weather patterns, soil conditions, plant health, and countless other variables. By analyzing this data, farmers can make proactive, informed decisions to optimize every aspect of their operations. However, translating data insights into real-world actions often requires advanced fluid control capabilities.

Texas Industrial Remcor’s solenoid valves and customized control panels serve as the essential link between smart agriculture software and physical spraying and irrigation equipment. Our valves offer ultra-fast response times and precise flow control, allowing farmers to dynamically adjust water, fertilizer, and pesticide application based on real-time conditions. We also offer extensive customization options, including custom manifolds, wiring harnesses, and control panels, enabling seamless integration with a wide range of smart agriculture systems.

One example of our smart agriculture solutions in action is our work with a leading precision irrigation company. By incorporating Texas Industrial Remcor valves and custom manifolds into their smart irrigation systems, this company empowered farmers to automatically optimize water usage based on data from soil moisture sensors, weather stations, and satellite imagery. The result was water savings of up to 40% and yield increases of over 12%.

Trend #3: Spraying Beyond Agriculture

While agriculture remains the primary market for spraying equipment, solenoid valve technologies are finding a growing range of uses in other industries. From turf management and landscaping to street cleaning and dust control, the benefits of precise, reliable fluid control are proving valuable across diverse applications.

One booming market is compact spraying equipment for ATVs, UTVs, and other utility vehicles. These nimble sprayers allow municipalities, landscapers, and groundskeepers to efficiently treat smaller areas that are inaccessible to larger equipment. Texas Industrial Remcor’s 8000 Series 2-Way Solenoid Valves are perfectly suited for these compact sprayers, offering high flow rates up to 15 GPM in a space-saving form factor.

Another emerging application is misting and cooling systems for outdoor venues, greenhouses, and livestock facilities. By precisely controlling the flow of water through high-pressure nozzles, these systems can efficiently lower ambient temperatures and improve air quality. Texas Industrial Remcor’s direct-acting solenoid valves provide the rapid cycling and fine flow control necessary for optimal misting performance.

As solenoid valve technology continues to advance, the range of potential applications will only expand further. With our deep engineering expertise and passion for innovation, Texas Industrial Remcor is well-positioned to develop cutting-edge valve solutions for any industry or use case.

The Texas Industrial Remcor Difference

In today’s fast-changing agriculture industry, having a trusted partner that deeply understands your fluid control needs is essential. At Texas Industrial Remcor, we’ve spent over two decades earning a reputation as the go-to experts for high-performance solenoid valves and sprayer control systems.

What sets us apart is our relentless focus on understanding and serving the unique needs of each customer. With the industry’s widest selection of U.S.-made solenoid valves and extensive customization capabilities, we excel at crafting optimized solutions for any application. Our experienced team works closely with each customer to select the ideal valves and components for their specific equipment and environment.

This commitment to customization and customer service, combined with the unmatched quality and reliability of our valves, translates into incredible value for our customers. In fact, our advanced sprayer control systems deliver an average ROI of 3800% thanks to dramatic reductions in input costs, waste, and labor. For farmers seeking to maximize profitability and navigate an uncertain future, Texas Industrial Remcor offers an unbeatable combination of performance, expertise, and ROI.

The Future of Agriculture is Fluid

As the agriculture industry races toward a future of sustainability, efficiency, and smart technology, one thing is clear: optimizing every drop of fluid will be essential. At Texas Industrial Remcor, we’re excited to continue partnering with farmers and spraying equipment manufacturers to solve their most challenging fluid control problems. With our expanding lineup of innovative valve products and unmatched customization capabilities, we’re ready to help the agriculture industry thrive in 2024 and for decades to come.

Is your spraying equipment ready for the future of agriculture? Contact us today to discover how Texas Industrial Remcor’s solenoid valves and fluid control solutions can help you maximize efficiency and profitability.





Posted on by

Boomless Sprayers: Preventing Damage with Proper Pressure Release

boomless sprayer
Reading Time: 5 minutes

Boomless sprayers are a popular choice for spraying in areas where using a traditional boom sprayer is impractical, such as along fence lines, ditches, power lines, and other obstacles. While boomless sprayers offer convenience and flexibility, it’s important to understand how to properly maintain and operate them to prevent damage. One key aspect is managing the pressure in the sprayer tank and system. Failing to release pressure after each use can lead to serious problems like blown pressure gauges, damaged pumps, and ruptured tanks.

Why Pressure Builds Up

Several factors can cause pressure to build up excessively in a boomless sprayer:

  • Clogged nozzles: If the spray nozzles become clogged and restrict flow, pressure will increase in the system as the pump continues to run.
  • Improper pressure relief valve: A malfunctioning or improperly adjusted pressure relief valve may fail to open and relieve pressure when it exceeds the set point.
  • Overfilling the tank: Filling the tank completely full reduces the air space at the top. As the fluid level rises from thermal expansion or foaming, it compresses this air space and increases pressure.
  • Temperature changes: Leaving a sprayer out in the sun can cause the fluid inside to heat up and expand, increasing pressure. Conversely, very cold temperatures may freeze and rupture components if pressure isn’t released.

The Importance of Boomless sprayers are a popular choice for spraying in areas where using a traditional boom sprayer is impractical, such as along fence lines, ditches, power lines, and other obstacles. While boomless sprayers offer convenience and flexibility, it’s important to understand how to properly maintain and operate them to prevent damage. One key aspect is managing the pressure in the sprayer tank and system. Failing to release pressure after each use can lead to serious problems like blown pressure gauges, damaged pumps, and ruptured tanks.

Why Pressure Builds Up

Several factors can cause pressure to build up excessively in a boomless sprayer:

  • Clogged nozzles: If the spray nozzles become clogged and restrict flow, pressure will increase in the system as the pump continues to run.
  • Improper pressure relief valve: A malfunctioning or improperly adjusted pressure relief valve may fail to open and relieve pressure when it exceeds the set point.
  • Overfilling the tank: Filling the tank completely full reduces the air space at the top. As the fluid level rises from thermal expansion or foaming, it compresses this air space and increases pressure.
  • Temperature changes: Leaving a sprayer out in the sun can cause the fluid inside to heat up and expand, increasing pressure. Conversely, very cold temperatures may freeze and rupture components if pressure isn’t released.

The Importance of Releasing Pressure

Relieving the pressure in your boomless sprayer after each use is critical to avoid damage and extend the life of the components. Here’s why:

Prevent blown gauges: The pressure gauge is often the weakest point in the system. Excessive pressure can blow out the gauge, requiring replacement. Releasing pressure extends gauge life.

Protect pump seals: Leaving the pump and plumbing under pressure for extended periods can damage the pump seals and diaphragms, causing leaks. Relieving pressure reduces strain on the seals.

Avoid tank rupture: While poly tanks are durable, they can rupture if left under high pressure too long, especially if there are any weak points. Releasing pressure prevents this costly damage.

Reduce stress on hoses and fittings: Hoses and fittings are designed to handle a certain pressure range. Subjecting them to excessive pressure unnecessarily shortens their lifespan.

How to Release Pressure Properly

The proper way to release pressure from your boomless sprayer depends on how it is configured. Here are some common methods:

  • Open the pressure relief valve: If equipped, open the pressure relief valve and allow it to vent until pressure drops to zero. Make sure the valve isn’t clogged and is functioning properly.
  • Disconnect the supply line: Carefully disconnect the supply line from the pump outlet and allow the pressure to dissipate. Wear gloves and eye protection in case of spray.
  • Open the tank lid: Slowly open the tank lid to vent pressure. Be careful as contents may spray out. Don’t remove the lid fully until pressure has dropped.
  • Trigger the spray gun: If your sprayer has a handgun, you can trigger it to relieve pressure in the hose. However, this won’t release all pressure in the tank and pump.

Consult your sprayer’s instruction manual for the manufacturer’s recommended method to release pressure safely.

Preventing Pressure Problems

In addition to releasing pressure after each use, there are other steps you can take to prevent pressure issues with your boomless sprayer:

Install a quality pressure relief valve: A good pressure relief valve will automatically open and vent fluid when the pressure exceeds a set point, protecting the system from overpressure. Make sure the valve is sized correctly for your sprayer’s flow rate and pressure range.

Use an inline pressure regulator: A pressure regulator will maintain constant pressure to the nozzles, even if the flow rate changes. This helps prevent pressure spikes and keeps spraying consistent.

Maintain the proper air space in the tank: Avoid filling the tank more than 95% full to maintain an air gap at the top. This allows for fluid expansion and reduces the risk of over pressurizing the tank.

Keep nozzles and filters clean: Regularly check and clean the spray nozzles and inline filters to make sure they aren’t clogged. Nozzle orifices can be cleaned with a soft brush, compressed air, or by soaking in cleaning solution.

Winterize and store properly: Before storing your sprayer for the winter, drain all fluid and release pressure. Flush the system with RV antifreeze to prevent freezing. Store out of direct sunlight to avoid heat damage.

Troubleshooting Low Pressure Problems

While high pressure can damage a boomless sprayer, low pressure is a more common problem that can hinder performance. If you’re experiencing low pressure (below 20 psi), here are some things to check:

  • Clogged intake filter: A clogged filter on the pump inlet will restrict flow and reduce pressure. Clean or replace the filter.
  • Air leak on inlet side: An air leak anywhere between the tank and pump inlet will cause the pump to suck air and lose prime, reducing flow and pressure. Tighten connections or replace damaged lines.
  • Worn pump: Diaphragm and roller pumps will wear over time, reducing their efficiency and pressure. Rebuild or replace the pump.
  • Undersized plumbing: Using hoses and fittings that are too small in diameter for the flow rate will restrict flow and limit pressure. Make sure plumbing is sized correctly.
  • Collapsed suction hose: A weak or kinked suction hose can collapse under vacuum and restrict flow to the pump. Use a reinforced suction hose sized for the pump inlet.

By understanding the causes of pressure problems and taking steps to prevent damage, you can keep your boomless sprayer running smoothly for years to come. Always release tank pressure after each use, install proper pressure control devices, and perform regular maintenance. Protecting your sprayer from pressure damage will save downtime and repair costs, letting you spray efficiently and effectively all season long.

Posted on by

5 Reasons Every Farmer Needs Solenoid Valves in 2024

Reading Time: 8 minutes

Introduction

Solenoid valves are electromechanical devices that control the flow of liquids and gases, playing a crucial role in agricultural settings. By managing water usage efficiently, these valves are integral to precision irrigation systems. Efficient water management is essential in modern farming to ensure sustainability and productivity.

This article focuses on the benefits of solenoid valves for farmers in 2024. By exploring their various applications and advantages, you’ll understand why incorporating solenoid valves into your farming operations can lead to significant improvements.

1. Enhanced Water Management with Solenoid Valves

Efficient water management is crucial for any irrigation system. Solenoid valves play a key role in this by offering precise fluid control. When integrated into irrigation systems, these valves allow farmers to regulate water flow accurately, ensuring that crops receive the exact amount of water they need. This precision helps in conserving water and reducing waste, which is essential in regions facing water scarcity.

Benefits of Solenoid Valves in Irrigation Systems

  • Precise Flow Control: Solenoid valves can be programmed to open and close at specific times, providing consistent and controlled water distribution.
  • Reduced Water Waste: With accurate control, there is less overwatering or underwatering, leading to efficient water usage.
  • Automated Operation: These valves can be integrated with sensors and timers to automate irrigation schedules, minimizing manual intervention.

Case Studies

In California’s Central Valley, a region known for its agricultural output, several farms have successfully implemented solenoid valves. One farm reported a 30% reduction in water usage after upgrading their irrigation systems with solenoid valves. Another study from Israel demonstrated how solenoid valves contributed to a 25% increase in crop yield by ensuring optimal soil moisture levels.

These examples highlight the transformative impact of solenoid valves on irrigation systems. Their ability to manage water resources effectively makes them an indispensable tool for modern farming practices.

2. Increased Agricultural Efficiency through Automation and ROI Benefits

Solenoid valves significantly enhance agricultural efficiency by enabling automation in farming operations. By incorporating these electromechanical devices, farmers can automate critical processes such as irrigation, fertilization, and even environmental control within greenhouses. This automation translates to consistent and precise management of resources with minimal manual intervention.

Automation in agriculture offers numerous benefits:

  • Reduced Labor Costs: Automated systems reduce the need for manual labor, allowing farmers to allocate resources more effectively.
  • Precision: Solenoid valves provide precise control over water and nutrient distribution, ensuring optimal conditions for crop growth.
  • Time Savings: Automated systems operate round the clock without human intervention, increasing productivity.

The economic impact of integrating solenoid valves is profound. The average return on investment (ROI) for implementing solenoid valves in agricultural settings is reported to be around 3800%. This staggering figure underscores the financial advantages of adopting automated solutions.

In essence, solenoid valves are a linchpin in modernizing farming practices, driving both efficiency and profitability through advanced automation technologies.

3. Types of Solenoid Valves and Their Applications in Farming

Understanding the different types of solenoid valves is crucial for selecting the right one for your agricultural needs. The two primary categories are direct-acting valves and pilot-operated valves. Each type has unique characteristics that make them suitable for specific applications within farming.

1. Direct-Acting Valves

Direct-acting solenoid valves operate by directly lifting the valve seat using an electromagnetic force. They are known for their rapid response times and reliability in low-flow scenarios.

Advantages:

  • Quick response time
  • Simple design, fewer moving parts
  • Effective at low pressures

Applications:

  • Precision irrigation systems where immediate water flow control is needed.
  • Greenhouse misting systems that require quick on/off cycles.

2. Pilot-Operated Valves

Pilot-operated solenoid valves use a smaller, direct-acting valve to control a larger diaphragm or piston. This allows them to handle higher pressures and flow rates compared to direct-acting valves.

Advantages:

  • Capable of managing higher pressures and larger flow rates
  • Energy-efficient since they require smaller actuating forces
  • Suitable for continuous operation

Applications:

  • Large-scale irrigation setups where high water pressure and volume are necessary.
  • Automated livestock watering systems that demand robust performance under variable conditions.

Material Considerations

The material of the solenoid valve also plays a significant role in its suitability for agricultural applications:

  • Brass: Ideal for neutral fluids, commonly used in general irrigation.
  • Stainless Steel: Suitable for corrosive environments or high-temperature operations.
  • Plastic: Cost-effective and resistant to many chemicals, making it suitable for various agricultural uses.

Choosing the right type of solenoid valve ensures optimal performance and longevity in your farming operations.

4. Installation Best Practices for Optimal Performance and Longevity

Proper installation techniques are crucial for ensuring the performance and longevity of solenoid valves in agricultural systems. Adhering to installation best practices prevents common issues like clogging, leaks, or malfunctioning, which can disrupt farming operations.

Key Considerations During Solenoid Valve Installation:

  1. Orientation: Ensuring the correct orientation of the solenoid valve is vital. Most valves have an arrow indicating the flow direction, which should align with the system’s flow. Incorrect orientation can lead to improper functioning or damage.
  2. Strainers and Filters: Incorporating strainers or filters upstream of the solenoid valve helps prevent debris from entering and clogging the valve. This is particularly important in agricultural settings where water sources may contain particulates that could impair valve operation.
  3. Electrical Connections: Secure electrical connections are necessary to ensure reliable operation. Loose or faulty connections can result in intermittent performance or complete failure of the valve.
  4. Pressure Rating: Matching the solenoid valve’s pressure rating with the system’s requirements avoids overloading and potential damage. Checking manufacturer specifications for compatibility is essential.
  5. Regular Maintenance: Routine inspection and maintenance extend the life of solenoid valves. Cleaning filters, checking seals, and testing operation periodically help identify and address issues early on.

By focusing on these installation best practices, you can maximize the efficiency and durability of solenoid valves in your agricultural systems, ensuring smooth and uninterrupted operation throughout their lifespan.

Irrigation Control Technology Advancements

The year 2024 is set to witness substantial advancements in agricultural automation and technology, with solenoid valves playing a pivotal role. These trends are driven by the need for more efficient resource management and increased productivity.

Key Trends:

  • Precision Agriculture: With the integration of IoT devices and sensors, precision agriculture is becoming more prevalent. Solenoid valves will be crucial in these systems, providing precise irrigation control based on real-time data.
  • Smart Irrigation Systems: Innovations in smart irrigation control technology are enabling automated watering schedules and remote monitoring. Solenoid valves help facilitate these systems by offering reliable and precise flow control.
  • Sustainable Farming Practices: As sustainability becomes a priority, solenoid valves contribute by optimizing water usage and reducing waste, aligning with eco-friendly farming methods.
  • Integration with AI and Machine Learning: The use of AI and machine learning to predict irrigation needs based on weather patterns and soil conditions is on the rise. Solenoid valves will serve as the execution point for these intelligent systems, ensuring timely and accurate water distribution.

Emerging Technologies:

  • Wireless Control Technologies: Advances in wireless control technologies allow for easier installation and maintenance of solenoid valves, enhancing their usability in remote or large-scale farms.
  • Energy-efficient Designs: New designs focused on energy efficiency are reducing the power consumption of solenoid valves, making them more cost-effective over time.

These trends highlight the potential impact of solenoid valves in modern farming, indicating that their significance will continue to grow as agricultural technologies evolve.

Conclusion: Embracing Modern Farming Solutions with Solenoid Valves

Adopting modern technologies like solenoid valves can significantly enhance your farming success. The benefits of solenoid valves for farmers are numerous:

  • Improved water management: Precise flow control ensures efficient use of water resources.
  • Increased efficiency through automation: Reduces labor costs and boosts productivity.
  • Long-term cost savings: An impressive ROI, around 3800%, highlights the economic benefits.

Integrating solenoid valves into your agricultural operations not only optimizes resource usage but also supports sustainable farming practices. Embrace these solutions to stay competitive and thrive in the evolving agricultural landscape.

FAQs (Frequently Asked Questions)

What are solenoid valves and how do they benefit agriculture?

Solenoid valves are electromechanical devices that control the flow of fluids in irrigation systems. In agriculture, they play a crucial role in enhancing water management by providing precise flow control, which leads to more efficient water usage and improved irrigation practices.

How do solenoid valves contribute to increased agricultural efficiency?

Solenoid valves enable automation in farming operations, allowing for more efficient and timely irrigation. This automation leads to significant returns on investment (ROI) as it reduces labor costs and minimizes water waste, ultimately enhancing overall agricultural efficiency.

What types of solenoid valves are used in farming applications?

There are primarily two types of solenoid valves used in agriculture: direct-acting valves and pilot-operated valves. Each type has specific applications and advantages based on the requirements of the irrigation system, ensuring optimal performance in various farming settings.

What are the best practices for installing solenoid valves?

Proper installation techniques are vital for ensuring the optimal performance and longevity of solenoid valves. Key considerations include correct orientation during installation and the use of strainers or filters to prevent clogging or damage from debris in the water supply.

In 2024 and beyond, advancements in irrigation control technology will significantly impact agriculture. Solenoid valves will continue to evolve alongside these trends, playing an integral role in enhancing automation and improving water management solutions for farmers.

Why should farmers consider adopting solenoid valves by 2024?

Farmers should consider adopting solenoid valves by 2024 due to their numerous benefits, including improved water management, increased efficiency through automation, and long-term cost savings. Embracing these modern technologies can lead to enhanced farming success.

In an era where water scarcity is a pressing concern, solenoid valves offer precise control over irrigation systems and enable farmers to optimize water usage. By automating the valve operation, farmers can avoid overwatering or under watering, ensuring crops receive the right amount of water at the right time. This not only conserves water but also promotes healthier plant growth and higher yields.

Additionally, solenoid valves eliminate the need for manual labor in valve operation, saving farmers valuable time and resources. With automated systems, farmers can remotely control their irrigation systems, adjusting settings as needed without having to physically visit each valve. This level of efficiency allows farmers to focus on other important tasks, leading to increased productivity.

Furthermore, while the initial investment may seem significant, solenoid valves offer long-term cost savings. By avoiding wastage through precise control and reducing labor costs, farmers can achieve a return on investment in a relatively short period. As agriculture becomes increasingly reliant on technology and automation, adopting solenoid valves by 2024 will ensure farmers stay competitive in the evolving landscape of modern farming.

In summary, solenoid valves are a crucial component of modern water management solutions for farmers. Their ability to enhance efficiency, conserve water, and deliver long-term cost savings make them a compelling choice for adoption by 2024. Embracing these technologies will not only benefit individual farmers but also contribute to sustainable agriculture practices globally.

Posted on by

How does TIR’s tech enhance precision agriculture?

Reading Time: 3 minutes

Introduction

Texas Industrial Remcor’s advanced technology is revolutionizing precision farming by providing innovative solutions that maximize efficiency, accuracy, and sustainability. Here’s how our solenoid valves and control systems are enhancing modern agricultural practices:

Precise Application Control with Solenoid Valves

Texas Industrial Remcor’s solenoid valves are engineered for unparalleled precision in controlling the flow of liquids and gases in agricultural crop management. These valves enable farmers to:

– Deliver exact amounts of water, pesticides, herbicides, nutrient and fertilizers precisely where needed[3]
– Minimize waste and environmental impact by preventing over-application[3]
– Achieve uniform coverage and consistent growing conditions across fields[1]
– Quickly adjust flow rates to maintain proper application rates despite changes in speed[1]

By integrating TIR’s solenoid valves with precision rate controllers and GPS, sprayer systems can automatically adjust boom sections and nozzle flow in real-time. This level of precision ensures crops receive optimal treatment while conserving resources.

Automated Efficiency with Control Systems

Texas Industrial Remcor’s advanced control systems take precision farming to the next level by automating key processes:

– Seamlessly integrate valves, sensors, and software for comprehensive system control[4]
– Enable variable rate application to optimize inputs based on field conditions and crop needs[4]
– Automate irrigation and livestock watering for precise delivery and labor savings[4]
– Provide user-friendly interfaces for easy system monitoring and adjustment[2]

TIR’s control systems serve as the brain of precision farming operations, orchestrating the complex dance of valves, pumps, and nozzles. By automating processes based on real-time data, these systems help farmers work smarter, not harder.

Rugged Reliability for Demanding Conditions

Farming is tough work, and equipment must withstand harsh conditions. Texas Industrial Remcor’s products are built to thrive in challenging agricultural environments:

– Durable construction and high-quality materials for long service life[1]
– Designed to handle the rigors of daily use in rugged conditions[1]
– Rigorously tested to ensure reliable performance season after season[3]

With TIR’s rugged, dependable valves and control systems, farmers can focus on what matters most: growing healthy crops and raising robust livestock.

Driving Agricultural Innovation

As a leader in precision agriculture technology, Texas Industrial Remcor is continuously pushing the boundaries of what’s possible:

– Ongoing research and development to create cutting-edge solutions[4]
– Collaborations with farmers, researchers, and industry partners to drive innovation[4]
– Commitment to developing products that promote efficiency and sustainability[3]

By staying at the forefront of agricultural technology, TIR is helping farmers meet the challenges of feeding a growing world population while protecting our planet’s precious resources.

Conclusion

In conclusion, Texas Industrial Remcor’s solenoid valves, control systems, and dedication to innovation are ushering in a new era of precision farming. Their technology empowers farmers to maximize efficiency, minimize waste, and achieve optimal results in crop production and livestock management. As the demand for sustainable and productive agriculture grows, TIR’s solutions will undoubtedly play a crucial role in shaping the future of farming.

Citations

[1] https://www.sprayervalves.com
[2] https://www.sprayervalves.com/categories/
[3] https://www.sprayervalves.com/blog/
[4] https://www.sprayervalves.com/embracing-the-future/
[5] https://www.agspray.com/category/precision-ag-control-guidance/automatic-rate-control/?mfg=micro-trak%7Ctexas+industrial+remcor

Posted on by

Maximizing Spraying Efficiency with Texas Industrial Remcor’s Boom Control Valves

Reading Time: 4 minutes

Introduction

In the world of precision agriculture, boom control valves have emerged as a game-changing technology for farmers looking to optimize their spraying operations. When paired with automatic section control (ASC) systems, these valves significantly improve efficiency, reduce input waste, and enhance application accuracy. Texas Industrial Remcor, a leading manufacturer of sprayer valves and control systems, is at the forefront of this revolution, providing innovative solutions that help farmers maximize their productivity and profitability.

Reducing Overlap and Input Waste

One of the primary benefits of using Texas Industrial Remcor’s boom control valves with ASC is the ability to automatically turn individual boom sections on and off at precise locations in the field[1]. This minimizes overlap when spraying headlands, point rows, or previously covered areas, reducing over-application of costly crop inputs like fertilizers, herbicides, and pesticides[2].

By leveraging Texas Industrial Remcor’s advanced valve technology, farmers can:

  • Decrease input costs by using less product
  • Minimize potential crop damage from over-application
  • Reduce environmental impact from excess agrochemicals

Studies have shown that ASC systems can reduce over-application by 2.3% to 14.5%, depending on the number of controlled sections, field shape, and other factors[2]. Texas Industrial Remcor’s precision-engineered valves are designed to maximize these savings, helping farmers optimize their input usage and protect their bottom line.

Improving Application Accuracy

Texas Industrial Remcor’s boom control valves, when integrated with precision rate controllers, enable farmers to maintain the target application rate during changes in sprayer speed and boom section width[1]. The control valves constantly adjust the flow rate to match the desired application rate, ensuring uniform coverage and consistent growing conditions across the field.

This precise application control provides several key benefits:

– Ability to instantly adjust for speed changes while maintaining proper application rate
– Capability to apply variable rates in different zones as needed
– Uniform coverage and more consistent growing conditions across the field

With Texas Industrial Remcor’s advanced valve technology, farmers can achieve unparalleled accuracy in their spraying operations, leading to healthier crops, higher yields, and improved profitability.

Enhancing Spray Rate Management

Texas Industrial Remcor’s sophisticated boom control valve systems go beyond just turning sections on and off. They also help manage spray pressure and nozzle flow dynamics for stable, accurate application. This is achieved through several key capabilities:

– Quickly stabilizing nozzle flow and pressure when sections are turned on or off[3][4]
– Minimizing off-rate errors by rapidly achieving target flow rate when re-entering unsprayed areas[4]
– Maintaining proper spray pattern and droplet size for optimal coverage

By integrating Texas Industrial Remcor’s flow control valves, rate controllers, section valves, and GPS technology, modern sprayer systems can maximize application efficiency and accuracy while minimizing waste. This provides both economic and environmental benefits for farmers, helping them to reduce costs, improve crop health, and protect the environment.

The Texas Industrial Remcor Advantage

Texas Industrial Remcor has been a trusted name in the agricultural industry for over 40 years, known for their commitment to quality, innovation, and customer service. Their boom control valves and control systems are engineered to the highest standards, ensuring reliable performance and long-lasting durability in even the most demanding field conditions.

Some of the key advantages of choosing Texas Industrial Remcor for your spraying needs include:

– Precision-engineered valves designed for maximum efficiency and accuracy
– Rugged, reliable construction for long-lasting performance in tough conditions
– Compatibility with a wide range of sprayer systems and precision ag technologies
– Exceptional customer support and technical expertise to help you optimize your spraying operations

Whether you’re a small family farm or a large-scale commercial operation, Texas Industrial Remcor has the solutions you need to take your spraying efficiency to the next level. By investing in their advanced boom control valves and ASC-compatible systems, you can reduce input costs, improve crop health, and maximize your profitability, all while protecting the environment for future generations.

Conclusion

In today’s competitive agricultural landscape, precision and efficiency are more important than ever. Texas Industrial Remcor’s boom control valves, when used with automatic section control systems, provide farmers with a powerful tool for optimizing their spraying operations. By reducing overlap and input waste, improving application accuracy, and enhancing spray rate management, these advanced valves help farmers maximize their productivity, profitability, and environmental stewardship.

As the demand for sustainable and efficient agricultural practices continues to grow, Texas Industrial Remcor remains committed to developing innovative solutions that meet the evolving needs of farmers around the world. With their precision-engineered valves, rugged construction, and exceptional customer support, Texas Industrial Remcor is the clear choice for farmers looking to take their spraying operations to the next level.

Citations

[1] https://www.sprayervalves.com
[2] https://www.croplife.com/iron/nozzles/nozzles-and-valves-how-spray-application-technology-continues-to-advance/
[3] https://www.sciencedirect.com/science/article/pii/S2405896317311187
[4] https://digitalag.osu.edu/sites/digitag/files/imce/publications/plant/Automatic+Section+Control.pdf
